5. Check the "ACTIVE"LED: if power is successfully fed into the SMC2582W-B, the "ACTIVE"LED will
be on (Red light); otherwise, the "ACTIVE"LED will be off.
6. If the electricity current is over the normal condition (Io°÷1.0 A), the "ACTIVE"LED will flash
(Red light).
NOTE: SMCPWR-INJ3 is specially designed for "SMC2582W-B EliteConnect™ 2.4GHz
11Mbps Wireless Bridge.The use of SMCPWR-INJ3 with other Ethernet-ready devices
that are not compliant to 802.3af may cause damage to the devices.
2.2. Mounting the SMC2582W-B on a Wall
The SMC2582W-B is wall-mountable.
1. Stick the supplied sticker for wall-mounting.
2. Use a ø7.0mm driller to drill a 25mm-deep hole at each of the cross marks.
3. Plug in a supplied plastic conical anchor in each hole.
4. Screw a supplied screw in each plastic conical anchor for a proper depth so that the
SMC2582W-B can be hung on the screws.
5. Hang the SMC2582W-B on the screws.

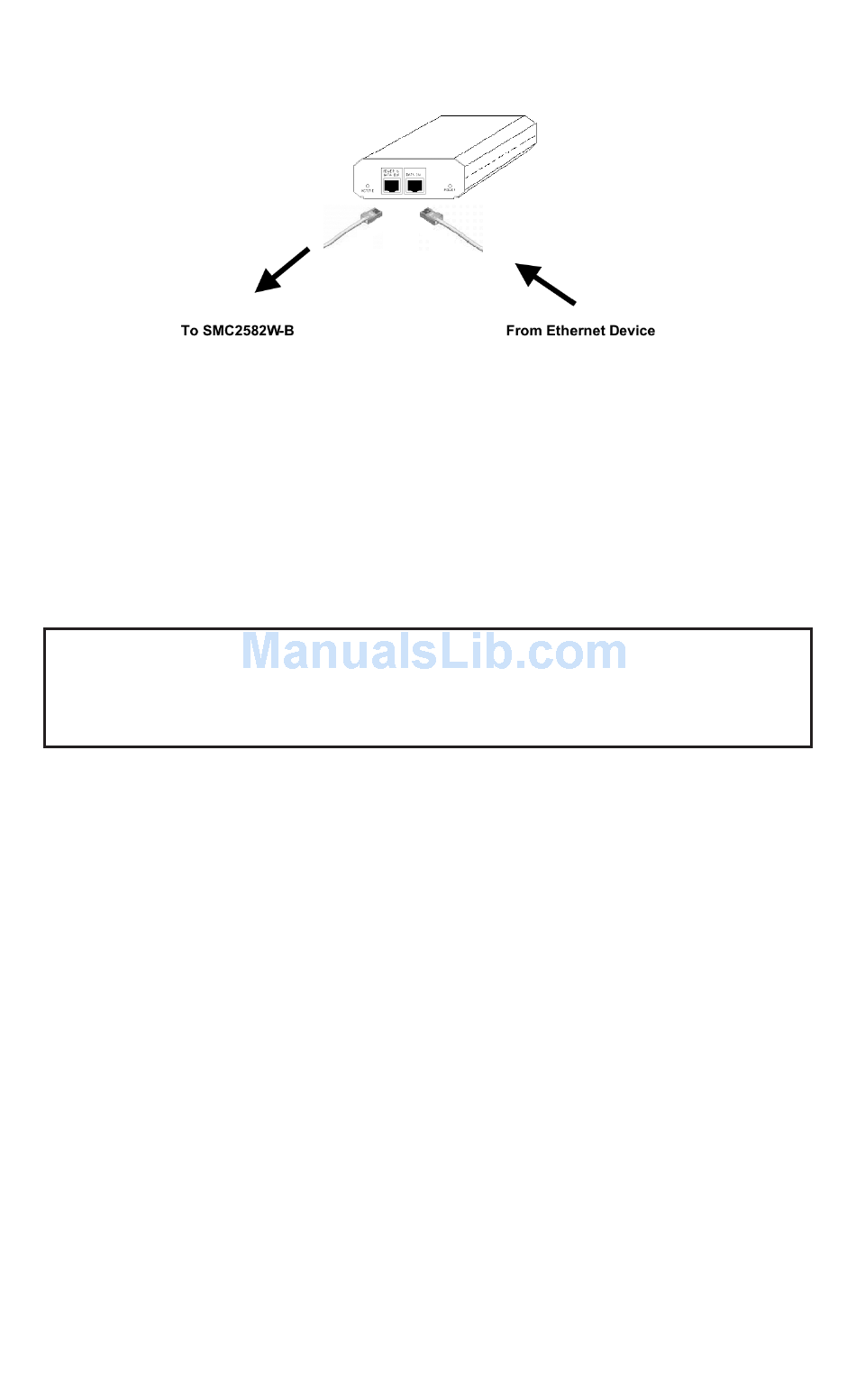

Fig. 2. Connecting Ethernet cables to SMCPWR-INJ3.
