2. First-Time Installation and Configuration

2.1. Selecting a Power Supply Method

The SMC2582W-B can be powered by either the supplied power adapter or the optional SMCPWR-
INJ3 EliteConnect™ Power Injector.The SMC2582W-B automatically selects the suitable power
depending on your decision.
To power the SMC2582W-B by the supplied power adapter:
1. Plug the power adapter to an AC socket.
2. Plug the connector of the power adapter to the power jack of the SMC2582W-B.
NOTE: This product is intended to be power-supplied by a Listed Power Unit, marked "Class 2"or
"LPS"and output rated "5V DC, 1 A minimum"or equivalent statement.
To power the SMC2582W-B by SMCPWR-INJ3 Power Injector:
1. Connect the power cord cable from power outlet to the SMCPWR-INJ3 power connector.
To power outlet
2. Check the "POWER"LED: if system is normal, the LED will be on (Green light); otherwise, the
"POWER"LED will be off.
3. Connect the Ethernet cable (RJ-45 Category 5) from Ethernet Hub/Switch to the "DATA IN"port
of SMCPWR-INJ3 Power Injector.
4. Connect another Ethernet cable (RJ-45 Category 5) from "POWER & DATA OUT"port of the SMCP
WR-INJ3 Power Injector to the SMC2582W-B Wireless Bridge.

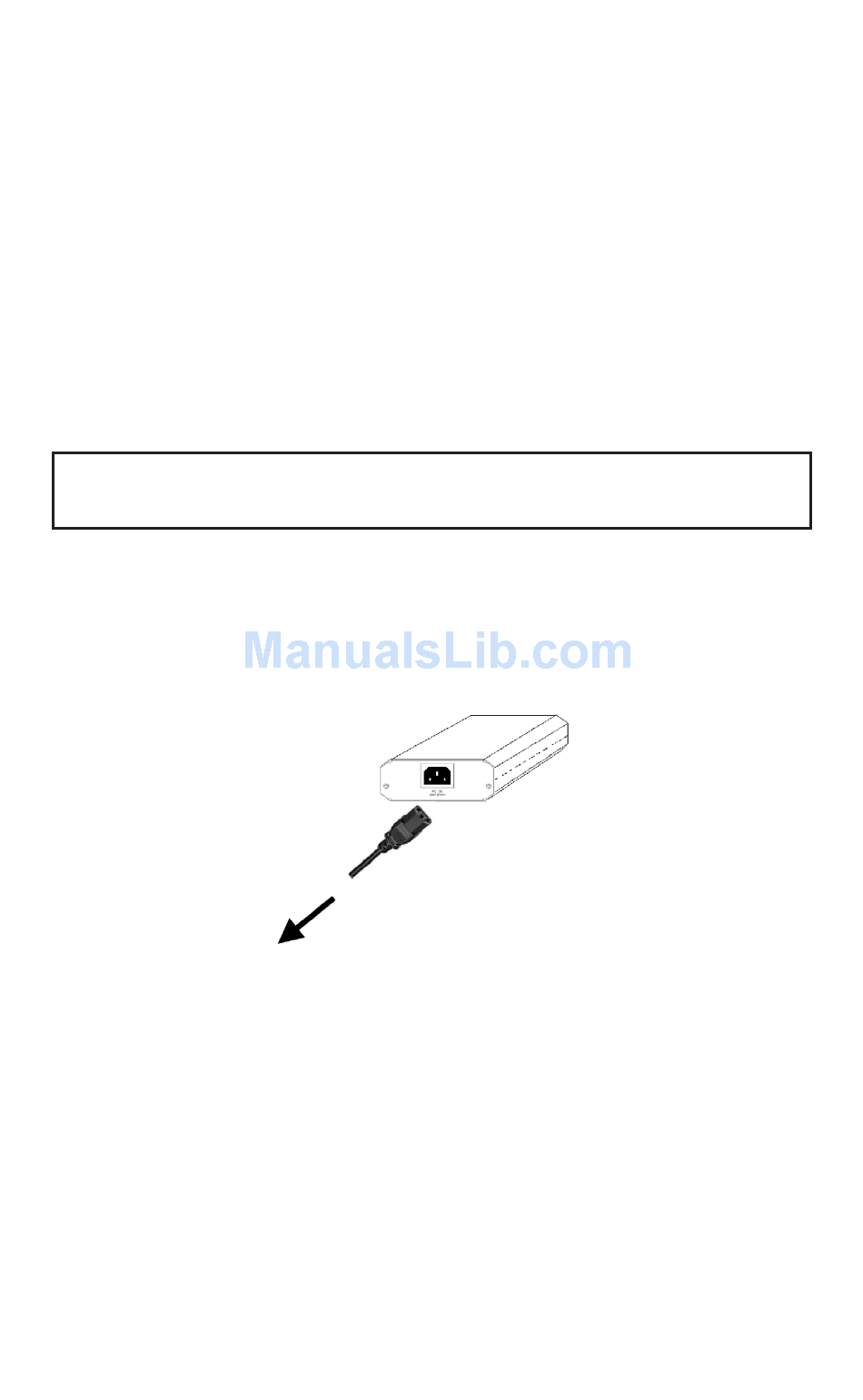

Fig. 1. Connecting the power cord cable to SMCPWR-INJ3.
