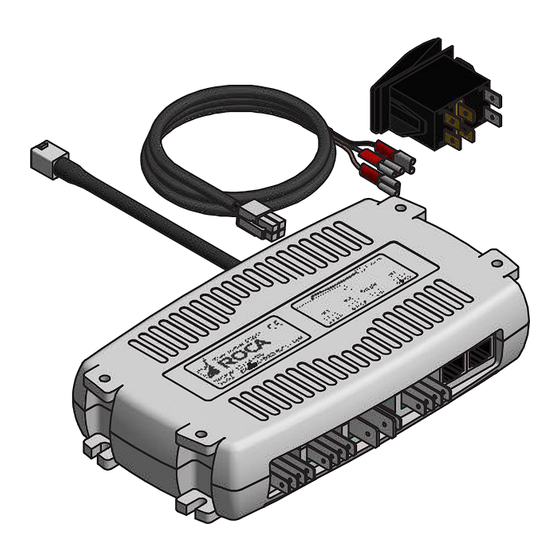

WIPER CONTROL | W10, 12, 25, 38 & 50
Installation Instructions
Before installation please read these instructions.
■ Up to 2 or 3 motors
■ Synchronized sweep
■ Interval
■ Slow speed
■ Fast speed
■ Washer output
www.rocaindustry.com
Advertisement
Table of Contents
Related Manuals for Roca W10
Summary of Contents for Roca W10

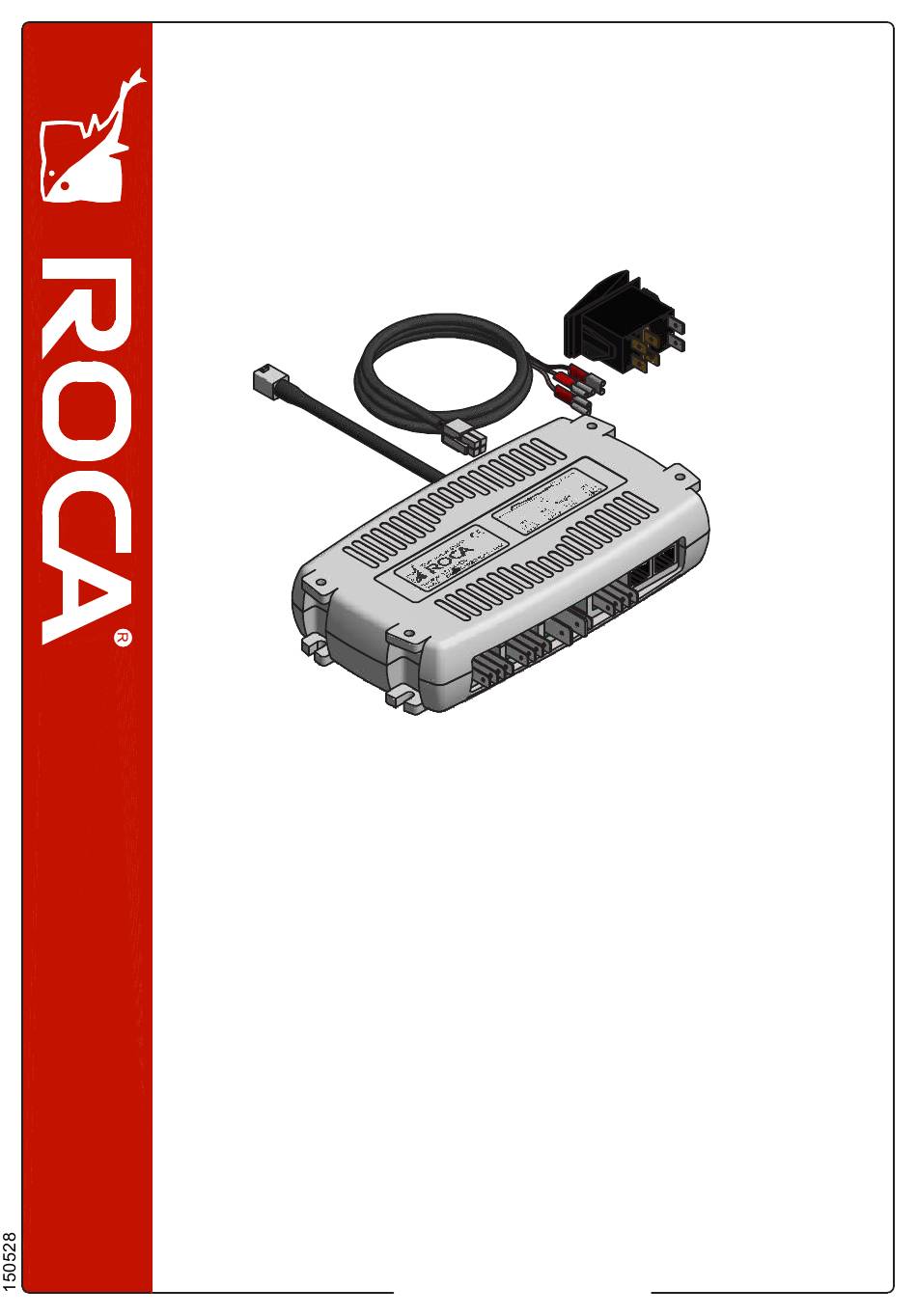

- Page 1 WIPER CONTROL | W10, 12, 25, 38 & 50 Installation Instructions Before installation please read these instructions. ■ Up to 2 or 3 motors ■ Synchronized sweep ■ Interval ■ Slow speed ■ Fast speed ■ Washer output www.rocaindustry.com...
- Page 2 Installation (Keep the battery main switch off during installation). 1. Place the control unit to desired position. 2. Insert the screws into holes and tighten. 3. Connect the cable from switch. 4. Connect the remaining cables according to diagram. 5. Turn on main switch and test all functions. For 24V system use Ground resistor (600 Ω) for LED.
- Page 3 Function for switch -One push to the on position will start all motors in synchronized interval. -One more push to momentary will run all motors in slow speed synchronized. -One more push will run all motors in fast speed synchronized. -One more push starts from interval and so on.
-
Page 4: Limited Warranty
Wipers Limited warranty 532202 12/24 V Up to 2 » Roca warrants the wiper control to be free from defective material and workmanship for a period 532203 12/24 V Up to 3 of 3 years from the date of purchase.
