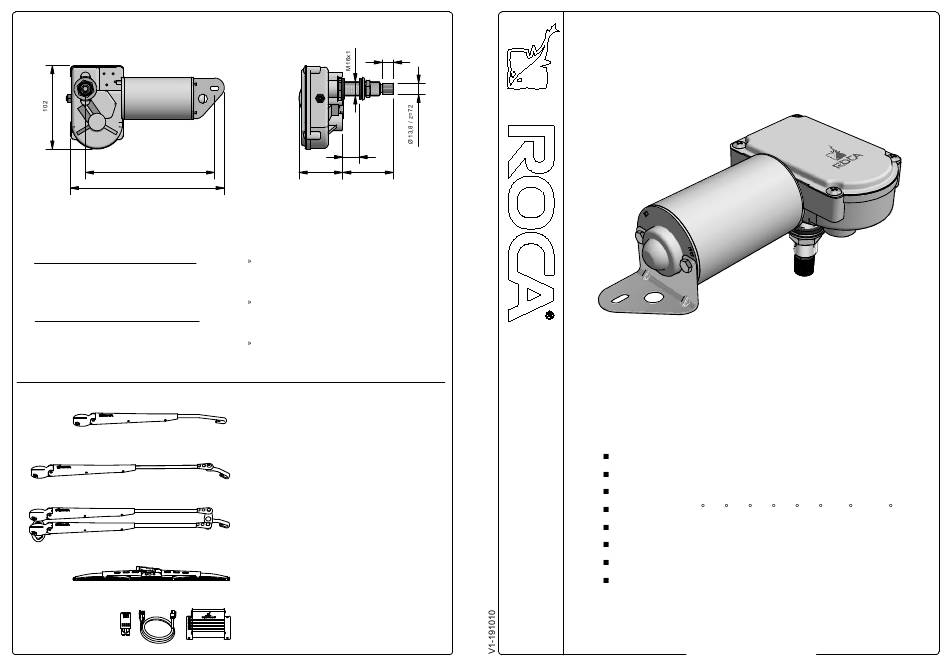

Roca W10 Installation Instructions

c-c 159
189
Variations:
Max length: Voltage input:
L1 L2 12 V 24 V
16 43 523011 523012
42 68 523021 523022
68 94 523031 523032
Current diagram: 12 V 24 V
No load < 2 A < 1 A
Rated < 4 A < 2 A
Stall < 10 A < 5 A
Fuse (Fast blow) 5 A 3 A
Speed no load (35 / 55 RPM)
Accessories
13,8
L1
54 L2
Limited warranty
Roca warrants the wiper motors to be free
from defective material and workmanship
for a period of 3 years from the date of
purchase.
This warranty does not apply to failure or
damage caused by improper installation,
misuse, lightning strike or damage from
a power surge.
If failure occurs during this period, return
it to your dealer for repair or replacement.
Wiper arm - Std
Wiper arm - Adjustable tip
Wiper arm - Pantograph
Wiper blade
Wiper control

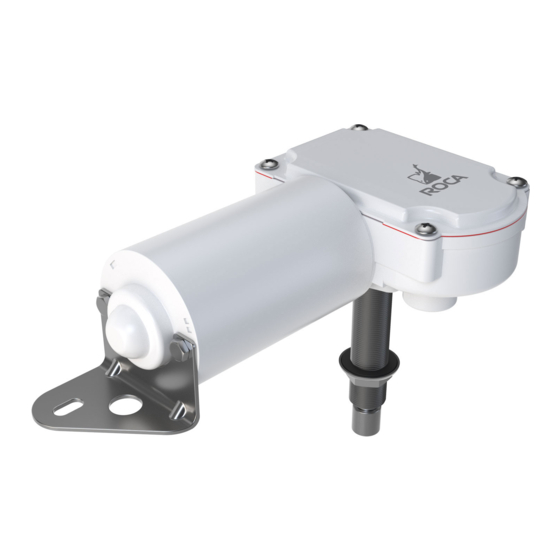

WIPER MOTOR | W10
Installation Instructions
Before installation please read these instructions.
2 Speed
Torque 10Nm
Wiper shaft in stainless steel
Sweep angle: 40 , 50 , 60 , 70 , 80 , 90 , 100 or 110
Self-parking, right or left position.
Insulated ground.
EMC protected
Powers up to 610mm/560mm - Arm/blade combinations
