WIPER MOTOR | W50
Installation Instructions
Before installation please read these instructions.
■ 2 Speed, self-parking
■ Heavy Duty motor, 50Nm
■ Wipershaft in stainless steel
■ Various sweep angle: 45 - 110°
■ Dynamic park circiut
■ Internal thermoswitch
■ Insulated ground
■ EMC protected
■ Powers up to 1200mm/1200mm - Arm/blade combinations
www.rocaindustry.com
Advertisement
Related Manuals for Roca W50
Summary of Contents for Roca W50

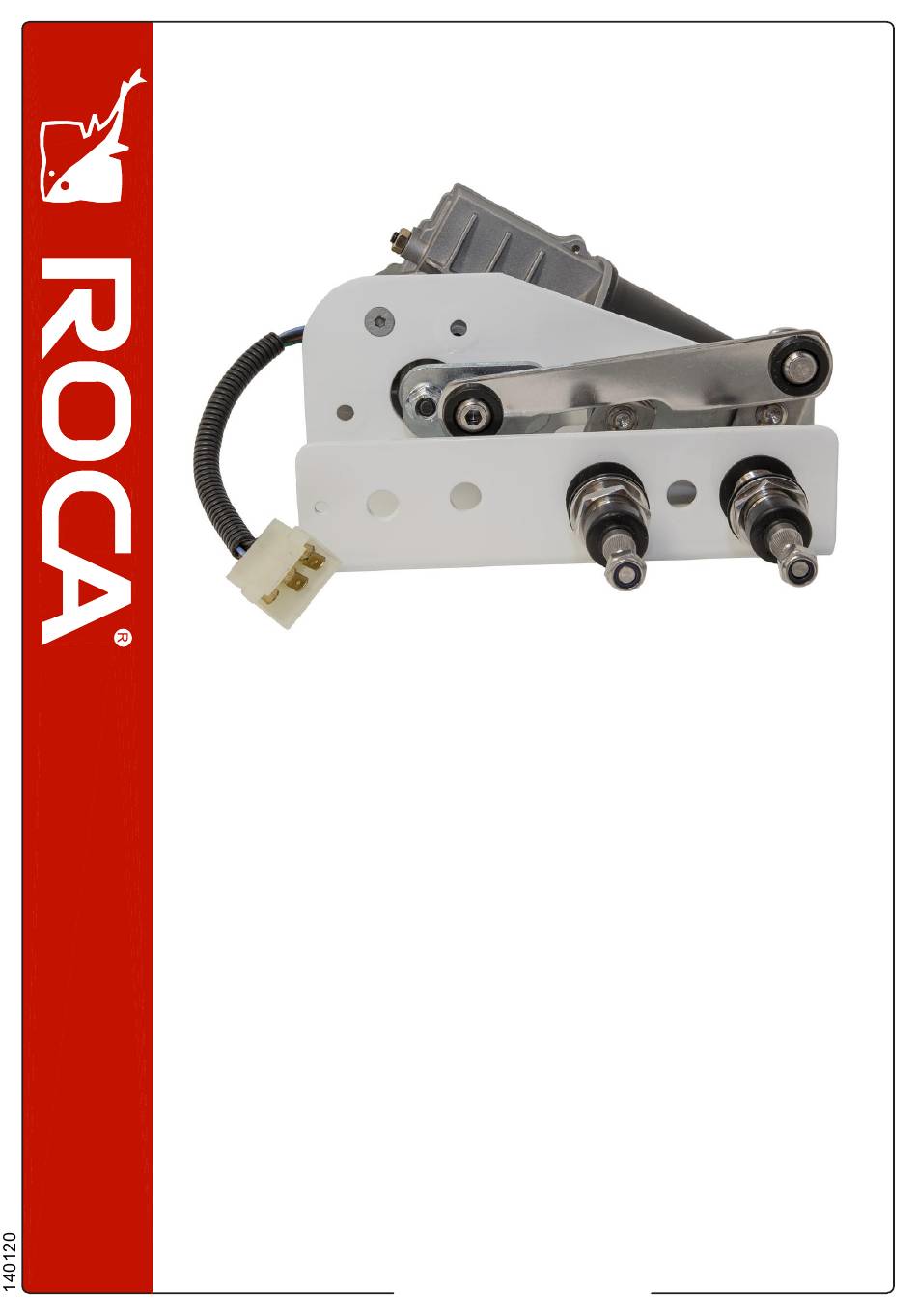

- Page 1 WIPER MOTOR | W50 Installation Instructions Before installation please read these instructions. ■ 2 Speed, self-parking ■ Heavy Duty motor, 50Nm ■ Wipershaft in stainless steel ■ Various sweep angle: 45 - 110° ■ Dynamic park circiut ■ Internal thermoswitch ■...
- Page 2 Instructions - Adjusting the sweep angle and parking position Left park pos 180° 1. Nut 3. Ball nut 2. Bracket Changing the parking position. Before the parking position is changed, the wiper motor should be in parked position (Default is set to left). Keep battery main switch turned off during any operation inside of the wiper motor.
- Page 3 (Slow) S P (Power) Motor unit (Red) F (Green) S Alt. 1 (3 pos.switch) Roca switch 2 speed / Parking Actuator 466026 18,9 Alt. 2 (Roca switch) Switch 17,6 5,16 14,2 466221 / 12V 466222 / 24V Fuse 12,4 1,11...
- Page 4 Variations: Limited warranty Max length: Voltage input: 12 V 24 V - Roca warrants the wiper motors to be free from defective material and workmanship 531013 531014 for a period of 3 years from the date of 531023 531024 531033 531034 purchase.
