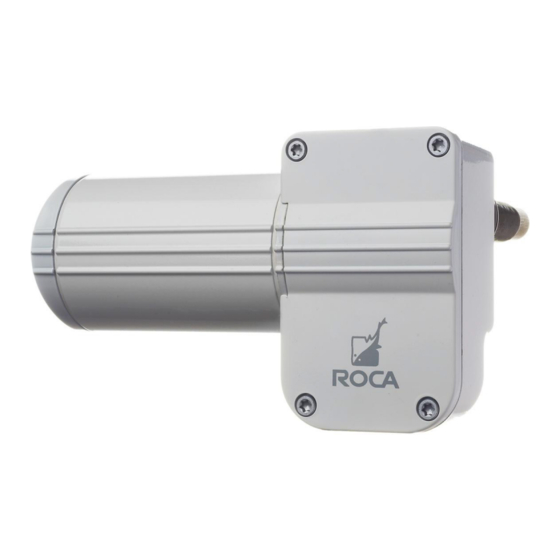

Wiper motor | W12
Mounting Instructions
Before installation please read these instructions.
» 2 Speed, self-parking
» Heavy Duty motor, 12Nm
» Wipershaft in stainless steel
» Various sweep angle: 45 - 110°
» CE approved; EMC protected
» Spray proof IP65
» Insulated ground for metal, plastic and wooden boats.
» Powers up to 610 mm x 560 mm /24˝ x 22˝ arm/blade
combinations.
info@rocamarine.com | rocamarine.com
Advertisement
Related Manuals for Roca W12
Summary of Contents for Roca W12

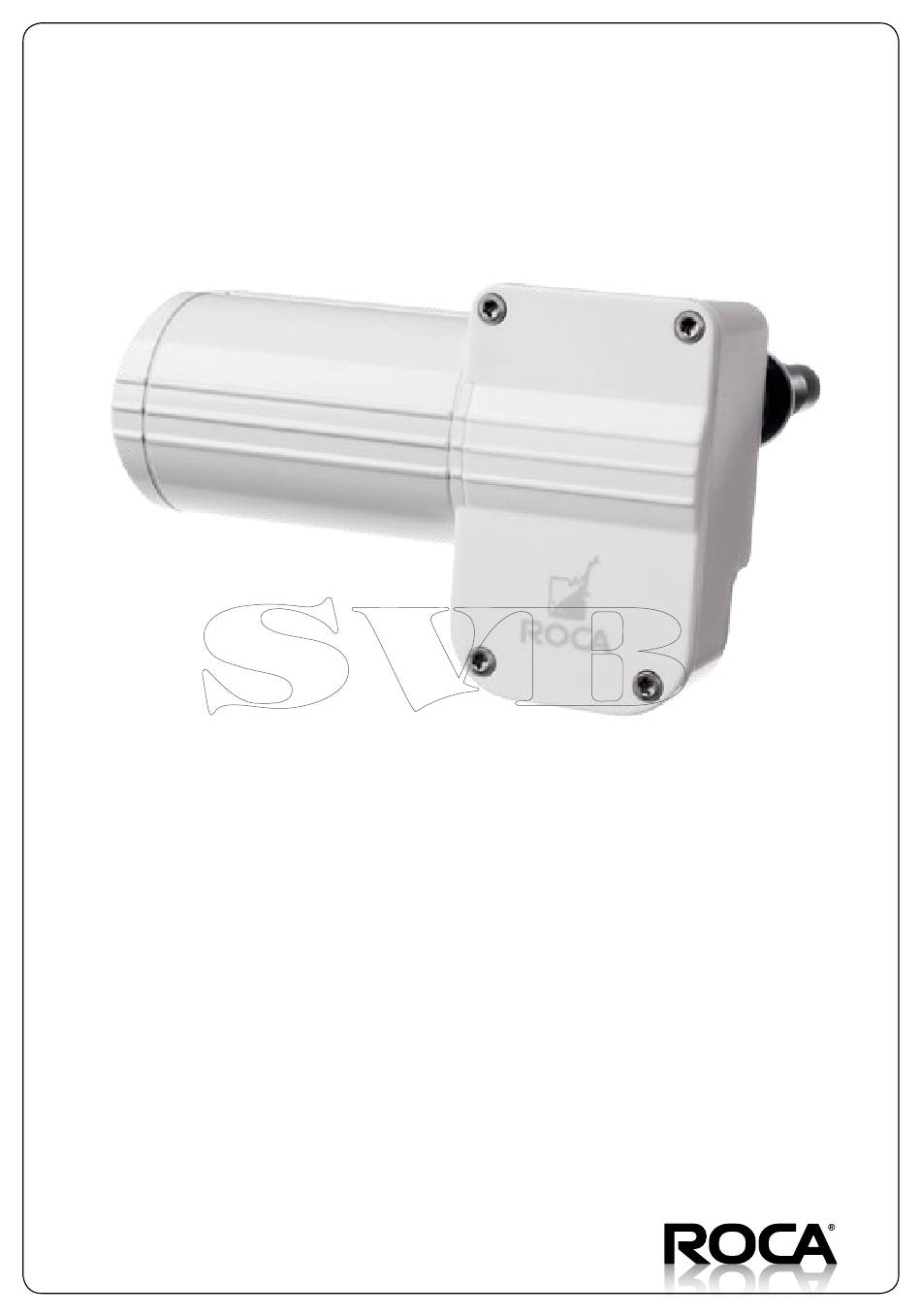

- Page 1 Wiper motor | W12 Mounting Instructions Before installation please read these instructions. » 2 Speed, self-parking » Heavy Duty motor, 12Nm » Wipershaft in stainless steel » Various sweep angle: 45 - 110° » CE approved; EMC protected » Spray proof IP65 »...
- Page 2 Connect wires as shown in picture If using Roca switch 466099/466208 use 6a. For all other switches use 6b. Use a 5Amp fuse for 12V and 3Amp for 24V. Make sure the gasket is in right position and replace the cover on the motor with the screws taken out.
- Page 3 Instruction sheet Instruction sheet Instruction sheet Parking selector position Loosen torx screws Angle plate Fuse 5A/12V 3A/24V Fuse 5A/12V 3A/24V Battery Battery P = Parking F S P S = Slow F = Fast G = Ground Right park pos...
- Page 4 C-C 145 VARIATIONS: Limited warranty Max length: Voltage input: » Roca warrants the wiper motors to be free from defective material and workmanship for a period of 3 years from the 16 / 0.63” 38 / 1.5” 533011 533012 date of purchase.
