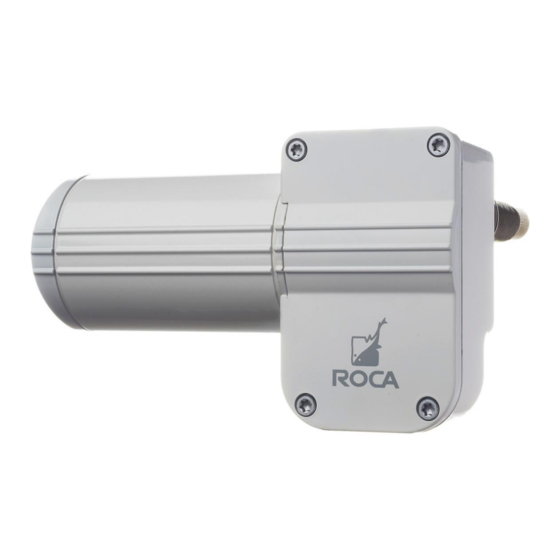

WIPER MOTOR | W12
Installation Instructions
Before installation please read these instructions.
■ 2 Speed, self-parking
■ Torque 12Nm
■ Wiper shaft in stainless steel
■ Adjustable sweep angle: 45 - 110°
■ Changeable self-parking, right and left position.
■ Insulated ground.
■ EMC protected
■ IP65
■ Powers up to 610mm/560mm - Arm/blade combinations
www.rocaindustry.com
Advertisement
Related Manuals for Roca W12
Summary of Contents for Roca W12
- Page 1 WIPER MOTOR | W12 Installation Instructions Before installation please read these instructions. ■ 2 Speed, self-parking ■ Torque 12Nm ■ Wiper shaft in stainless steel ■ Adjustable sweep angle: 45 - 110° ■ Changeable self-parking, right and left position. ■ Insulated ground.
- Page 2 See picture 5. 7. Connect wires as shown in picture 6. If using Roca switch 466099/466208 use 6a. For all other switches use 6b. Use a 5 Amp fuse for 12 V. and 3 Amp for 24 V.
- Page 3 Standard arm Arm with adjustable tip Pantograph arm Instructionsheet position Parking selector Angle plate Fuse Fuse Battery Battery P = Parking F S P S = Slow F = Fast Right park pos. G = Ground...
- Page 4 13,8 Variations: Limited warranty Max length: Voltage input: 12 V 24 V - Roca warrants the wiper motors to be free 533011 533012 from defective material and workmanship 533021 533022 for a period of 3 years from the date of...
