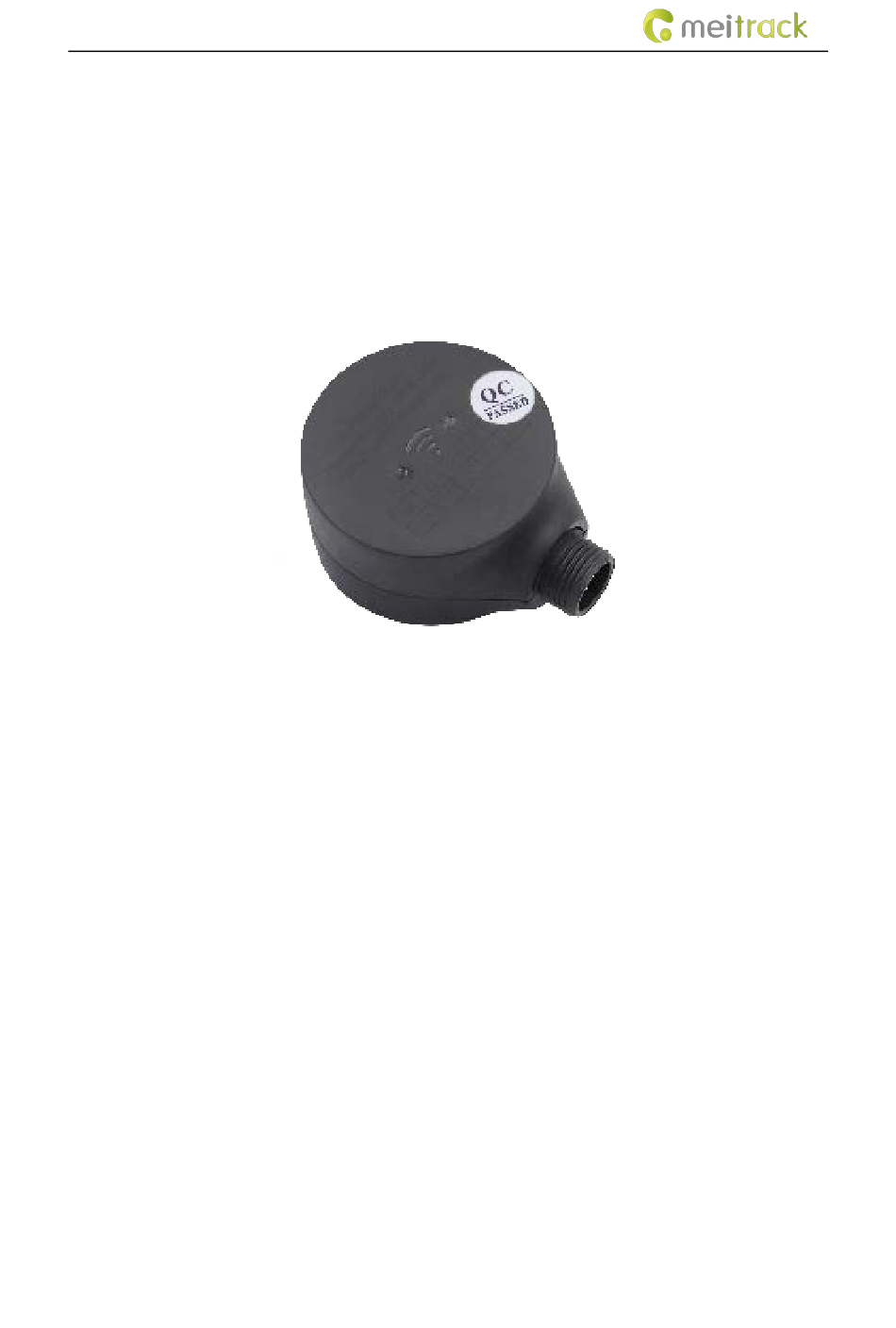

ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide...
Page 2
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide Change History File Name ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide Project Vehicle trackers and MDVRs Creation Date 2021-11-15 Update Date Subproject Accessory User Guide Total Pages Version V1.1...
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide Bluetooth Bluetooth 5.0. Users can log in to the FuelGuard app to configure fuel tank parameters and check the status of the fuel level sensor. 2.3 Cable Definition Cable Color...
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide 9-meter extension cable Extension cable Sandpaper Used to clean the bottom of the fuel tank. 304 stainless steel cable Used to fasten the probe. It is applied on the surface of the probe to exclude Silicone grease air.
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide 2. Install the sensor. 3. Connect the sensor to a vehicle tracker or a MDVR. For details about how to install the sensor, see the following instructions. 4.1 Installing the Sensor 4.1.1 Downloading the FuelGuard App...
Page 8
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide such as the section shown in the following figure on the right. Clean up the dirt and oil stain in the probe installation area, and keep the area dry. Connect the probe to the extension cable, arrange the extension cable in the cab, and connect the red wire of the extension cable to vehicle battery's anode (9–36 V) and the black wire of the extension cable to its cathode (that is,...
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide After the power is supplied, the red LED indicator of the probe blinks. Enable the Bluetooth and app "UL212 Fuel" on your phone, and search and connect related device. Place the probe on to the clean area and check the status in real time on the app.
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide When the cable tie is about to tighten, stick the rubber pad on to a corner of the fuel tank to prevent the fuel tank from damaging. Then fasten the cable tie by using the cable tie hoop.
Page 11
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide Definition of the 4-Pin to 8-Pin Cable Cable Color Description Power output Output voltage: 5 V Black Ground wire Green Rx, connected to the Rx interface of the device. White Tx, connected to the Tx interface of the device.
Configure the sensor by Meitrack Manager. Turn on a vehicle tracker or a MDVR, connect it to a computer, and run Meitrack Manager. As shown in the following figure, set Fuel Sensor Type to 5-Ultrasonic, and set other parameters as required. Click Set to save the configurations.
ASUF101 & ASUF102 Bluetooth Ultrasonic Fuel Level Sensor User Guide 5 Using the MS03 Tracking Platform 5.1 Querying Reports On the MS03 platform, you can choose Reports to check the fuel data. 5.1.1 Querying Historical Data 1. On the MS03, choose Reports.
