Summary of Contents for MeiTrack A76-100

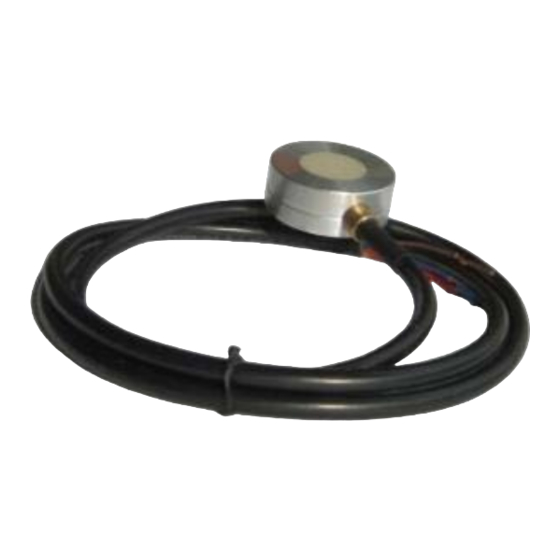

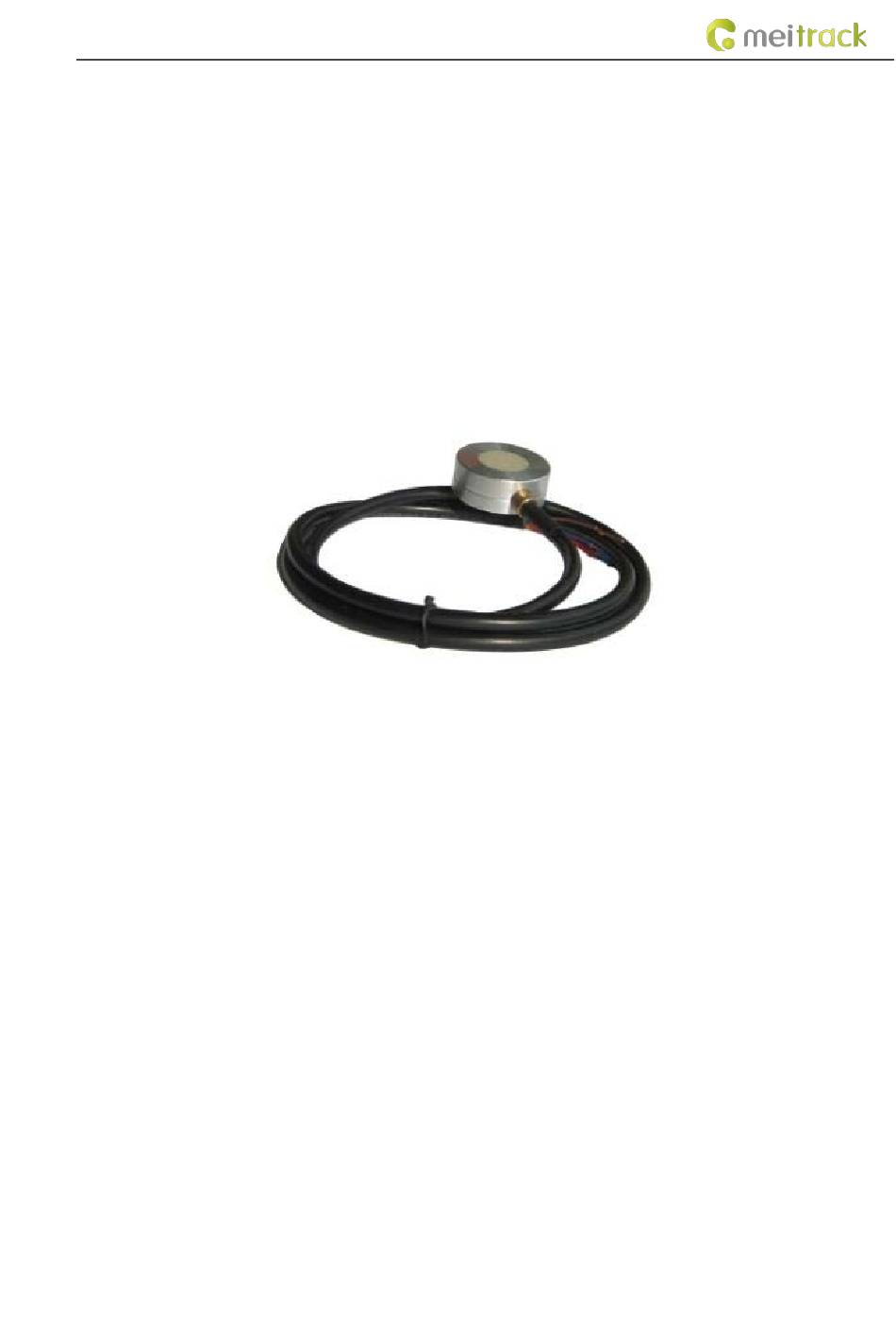

- Page 1 MEITRACK Ultrasonic Fuel Level Sensor User Guide A76-100\A76-250\ASUF105 Ultrasonic Fuel Level Sensor User Guide...
- Page 2 Change History File Name MEITRACK Ultrasonic Fuel Level Sensor User Guide Project Creation Date 2016-03-31 Update Date 2022-09-14 Subproject Accessory User Guide Total Pages Version V2.1 Confidential External Documentation Copyright © 2022 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
4.2 Installing the Sensor ................................- 6 - 4.3 Installing the Tracker .................................- 13 - 5 Configuring the Sensor ................................- 15 - 5.1 Configuring the Sensor by Meitrack Manager or MS03 ....................- 15 - 6 Querying Reports ..................................- 17 - 6.1 Historical Data...................................- 17 - 6.2 Sensor Report ...................................- 17 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Accessories
Note: There are two ways to fix the sensor probe, 1. ring gasket + steel clamp, 2. strong magnetic holder + AB glue. the standard for A76-100 and A76-250 is the first one, ASUF105 is the second one. If you choose A76 for fuel tanker, it is recommended to use the second one, please consult the sales for such case. -
Page 6: Installation
Important note: Prior to the installation, keep the fuel tank at least half full and park the vehicle on level ground. Knock the fuel tank to determine the fuel level. Copyright © 2022 Meitrack Group All rights reserved. - 6 -... - Page 7 If the fuel tank is cylindrical, choose the area that is closest to the ground such as the section shown in the following figure. Copyright © 2022 Meitrack Group All rights reserved. - 7 -...
- Page 8 3) Turn on the list of available wireless networks on your mobile phone, select the network which start with USR-WIFI and click connect. Once connected, the green indicator light is on. Copyright © 2022 Meitrack Group All rights reserved. - 8 -...
- Page 9 Hold the sensor on the installation area, check the result on your phone. If the result is ok, make a circle mark with the screwdriver. If not, try another position. Copyright © 2022 Meitrack Group All rights reserved. - 9 -...
- Page 10 Put the ring gasket on the surface of the sensor, then fill the measuring area with grease, make it a bit higher than the ring gasket. There must be no air bubbles or dust or sand inside the grease. (If you don't have grease, please use toothpaste instead.) Copyright © 2022 Meitrack Group All rights reserved. - 10 -...
- Page 11 The previous steps are the same, fixing the probe need to use AB glue.apply the AB glue to the probe and holder, and evenly stir it(No need to place the gasket). Copyright © 2022 Meitrack Group All rights reserved. - 11 -...
- Page 12 If the result is ok to install, hold the probe for 5–15 minutes until the glue is solidified. While pressing, ensure that the status code is always ok to install. Copyright © 2022 Meitrack Group All rights reserved. - 12 -...
-
Page 13: Installing The Tracker
Red(connect to external power supply) Red（9~36VDC） Black GND Black Purple（RS232-TX） Blue（RS232-RX） Brown（RS232-RX） Yellow（RS232-TX） 3. Whether the device supports ultrasonic fuel sensor and which ports support it,you can open the accessory interface of Copyright © 2022 Meitrack Group All rights reserved. - 13 -... - Page 14 MEITRACK Ultrasonic Fuel Level Sensor User Guide Meitrack Manager, check the peripheral type setting, if there is an ultrasonic fuel sensor option, it means it is supported. Connecting with AD input , connection as below. Devoce I/O cables Extention cables Red(external power supply) Red（9~36VDC）...
-
Page 15: Configuring The Sensor
5.1 Configuring the Sensor by Meitrack Manager or MS03 Turn on the tracker, connect it to a computer, and run Meitrack Manager. On the Device tab page, locate Oil sensor setting, set Use model to 5-Ultrasonic, and set other parameters as required, as shown in the following figure. Click Set to save the configuration. - Page 16 On MS03, choose Management. On the Management window, select Parameter settings from Use Normal. On the page that is displayed, select a tracker in the left navigation pane, click Sensor parameters, and then set related parameters. Copyright © 2022 Meitrack Group All rights reserved. - 16 -...
-
Page 17: Querying Reports
. The results will be displayed, as shown in the following figure. 6.2 Sensor Report On the Reports window, choose Sensor report from Use Normal. The Sensor report window is displayed. Copyright © 2022 Meitrack Group All rights reserved. - 17 -... - Page 18 Select a tracker and sensor, set the query time, and click . The results will be displayed, as shown in the following figure. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2022 Meitrack Group All rights reserved. - 18 -...
