MEITRACK Tire Pressure Sensor User Guide
MEITRACK Tire Pressure Sensor
User Guide
Applicable Model: T333/T1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T333/T1 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack T333/T1

Summary of Contents for MeiTrack T333/T1

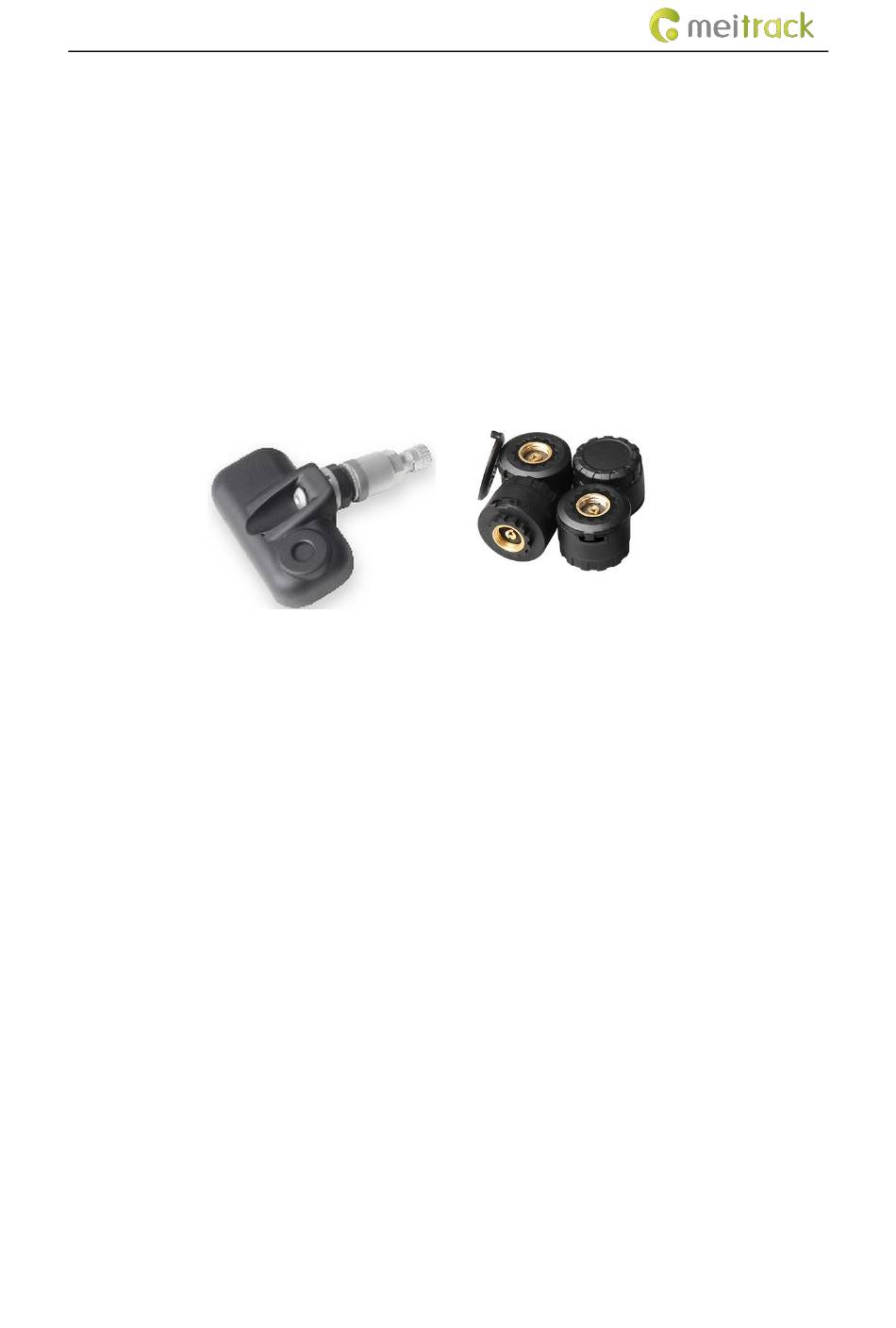

  • Page 1 MEITRACK Tire Pressure Sensor User Guide MEITRACK Tire Pressure Sensor User Guide Applicable Model: T333/T1...
  • Page 2 Change History File Name MEITRACK Tire Pressure Sensor User Guide Project T333/T1 Creation Date 2017-05-10 Update Date 2020-03-12 Subproject Accessory User Guide Total Pages Version V1.3 Confidential External Documentation - 2 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 3: Table Of Contents

    4 Connecting the Tire Pressure Receiver to the Tracker ....................- 6 - 5 Tire Pressure Sensor Configuration ........................... - 7 - 5.1 Configuring the Tire Pressure Sensor by Meitrack Manager ................ - 7 - 5.2 Configuring the Tire Pressure Sensor by MS03 Platform ................- 9 - 5.3 Configuring the Tire Pressure Sensor by MS03 App ...................

  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

  • Page 5: Smart Sleep Mode

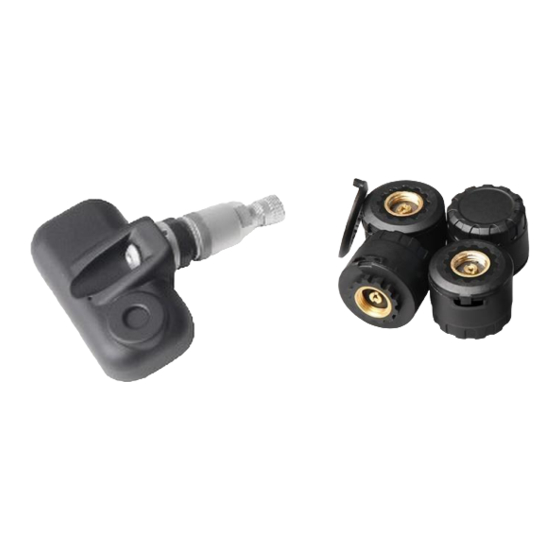

    Tire pressure receiver (4 pins) Repeater (2 power cables only) (small vehicles) Internal tire pressure sensor SI External tire pressure sensor ST (large Internal tire pressure sensor SR (small vehicles) vehicles) (large vehicles) - 5 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 6: Connecting The Tire Pressure Receiver To The Tracker

    1. Plug the T333/T1 into the 8-pin interface of the 8-pin to 4-pin cable. 2. Plug the tire pressure receiver into the 4-pin interface of the cable. Note: To make sure that the tire pressure receiver can work normally, the T333/T1 must be connected to an external power supply.

  • Page 7: Tire Pressure Sensor Configuration

    Before configuring the sensor, please check the ID number printed on its surface. For example, the following tire pressure sensor's ID number is 528501. Set the serial port by Meitrack Manager, as shown in the following figure. - 7 -...
  • Page 8 12 bar, all the low pressure thresholds to 7 bar and the high temperature threshold to 85°C, as shown in the previous figure. Note: If the tire pressure receiver is not installed properly, you will fail to configure tire pressure sensors. - 8 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 9: Configuring The Tire Pressure Sensor By Ms03 Platform

    5.2 Configuring the Tire Pressure Sensor by MS03 Platform Before configuring a tire pressure sensor by MS03 platform, you should: Set the server IP address and port on Meitrack Manager. Ensure that the tracker is online on the MS03 tracking platform.

  • Page 10: Configuring The Tire Pressure Sensor By Ms03 App

    9 bar, and the high temperature threshold is set to 70°C. Note: If you use Meitrack Manager to configure tire pressure sensors, you must connect the tracker to a computer by USB cable. If you use the MS03 platform, you must ensure that the tracker is online. However, the two configuration methods are nearly the same.
  • Page 11 Select tires to be bound, and enter the ID numbers of the corresponding tire pressure sensors. If you want to configure trailers, click the buttons on the right, for example, button 4. The page of trailer 4 will be displayed. - 11 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 12: Installing The Tire Pressure Sensor

    10 meters. If this distance exceeds 10 meters, a repeater is required to be installed. 6.2 Installing an External Tire Pressure Sensor Visit https://youtu.be/1jYJGVT0ezw to view Meitrack Tire Pressure Sensor Installation Video. Perform the following steps to install an external tire pressure sensor: (1) Unscrew the valve stem cap.

  • Page 13: Installing An Internal Tire Pressure Sensor

    The installation method of internal tire pressure sensors is complicated. So it is recommended that you should install them on 4S car shops or professional vehicle companies. Perform the following steps to install an internal tire pressure sensor: (1) Remove a tire from the vehicle. - 13 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 14 (2) Deflate the tire and place it on the tire changer. (3) Remove the tire from the wheel rim and shovel the original tire valve. (4) Install and fasten the sensor tail and valve stem. - 14 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 15 MEITRACK Tire Pressure Sensor User Guide As shown in the following figure, the sensor tail is installed inwards, the valve stem is installed outwards, and the nut is fastened. - 15 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 16: Installing The Repeater

    7.1 Querying Tire Pressure Data by MS03 Platform On the main interface, choose Reports > Historical data. When a tracker is online, you can query related historical data as follows. - 16 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 17 . Then select a report and double-click it. 2. On the page that is displayed, a red area indicates that an alert is generated, and a black area indicates no alert is generated. - 17 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 18: Querying Tire Pressure Data By Ms03 App

    3. Move the mouse to a red area, the alert details will be displayed. 7.2 Querying Tire Pressure Data by MS03 App 1. On the main interface, choose Reports > History. - 18 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 19 2. On the page that is displayed, enter the IMEI number, device name or user name, set the query time, and click Confirm. The History page will be displayed. 3. On the History page that is displayed, click Check. The Tire detail page will be displayed. - 19 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 20: Querying Tire Pressure Data By Lcd Display

    (2) When the LCD display does not detect vibration for 10 consecutive minutes, it will enter the sleep mode automatically. This will help save battery power. When it detects vibration, it will be woken up and will start to receive data. (3) LCD Display appearance - 20 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 21: Lcd Display Configuration

    3 consecutive minutes to exit the settings state; (2) press and hold down the CODE key for 3 seconds. After you hear "Bi" once, release the key. The LCD display will return back to normal working status. - 21 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 22: Manual Code Matching

    In standby mode, short press the CODE key of the LCD display. When you hear "Bi" once, the system will enter ID number querying mode. Then press and hold down the LINK key for 3 seconds. When you hear "Bi" once, release the - 22 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 23: Restoring Factory Settings

    Pressure unit: Press the + or - key to select a pressure unit. Temperature unit: Press the + or - key to select a temperature unit. High pressure alert threshold: - 23 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 24: Viewing Alerts

    High temperature alert threshold: 8.2.6 Viewing Alerts High pressure alert: Red LED indicator and corresponding tire icon will blink. Low pressure alert: Red LED indicator and corresponding tire icon will blink. - 24 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 25: Tire Pressure Sensor Gprs Protocol

    @@: Indicates the GPRS data packet header sent @@ / $$ from the server to the tracker. The header type is ASCII (hexadecimal: 0x40). $$: Indicates the GPRS data packet header sent from - 25 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 26 45: The location is at northeast. When the value is 0, the direction is due north. The 90: The location is at due east. value ranges from 0 to 359. - 26 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 27 EEP2 parameter the value is 1, the EEP2 parameter is modified. modified. Bits 1–31: reserved. Only available by GPRS event code 35. Customized data Reserved A separator still exists. - 27 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 28 Bit 4: When the value is 1, the air pressure is 00123457: tire high. pressure sensor ID is Bit 3: When the value is 1, the air pressure is 0x00123457 - 28 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 29 The parameter indicates the sum of all data (excluding the checksum and ending mark). Example: $$<Data identifier><Data length>,<IMEI>,<Command type>,<Command content><*Checksum>\r\n \r\n 2 bytes. The parameter is an ending character. The \r\n - 29 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 30: Command Details

    High temperature threshold: hexadecimal; unsigned; 1 byte; formula: obtained value – 50; unit: °C. Example GPRS Sending @@Q25,863835020877432,DA0*72\r\n GPRS Reply $$Q90,863835020877432,DA0,0208001000000000004576*46\r\n 9.2.2 Obtaining Data of All Bound Tire Pressure Sensors – DA1 GPRS Sending - 30 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 31: Obtaining Data Of A Tire Pressure Sensor - Da2

    Bits 4–0: indicate the tire number. For example, 00001(B), indicating the first tire. ⚫ ID: indicates a tire pressure sensor's ID number; 4 bytes; unsigned; hexadecimal. ⚫ Tire pressure: 2 bytes; unsigned; hexadecimal; formula: obtained value x 0.025; unit: bar. - 31 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 32: Deleting Tire Pressure Sensors - Da3

    Bits 7–5: indicate the vehicle head or trailer. 000(B): vehicle head; 001(B): trailer 1; 010(B): trailer 2; 011(B): trailer 3; 100(B): trailer 4. Bits 4–0: indicate the tire number. For example, 00001(B), indicating the first tire. - 32 - Copyright © 2020 Meitrack Group All rights reserved.

  • Page 33: Setting Alert Thresholds Of A Tire Pressure Sensor - Da5

    Low pressure threshold of the trailer: hexadecimal; unsigned; 1 byte; formula: obtained value/10; unit: bar. High temperature threshold: hexadecimal; unsigned; 1 byte; formula: obtained value – 50; unit: °C. Example - 33 - Copyright © 2020 Meitrack Group All rights reserved.
  • Page 34 MEITRACK Tire Pressure Sensor User Guide GPRS Sending @@l37,863835020877432,DA5,FF0000FFFFFF00000F19d*58\r\n GPRS Reply $$l31,863835020877432,DA5,OK*BC\r\n If you have any questions, do not hesitate to email us at info@meitrack.com. - 34 - Copyright © 2020 Meitrack Group All rights reserved.
