Summary of Contents for Monoprice Blackbird 36741

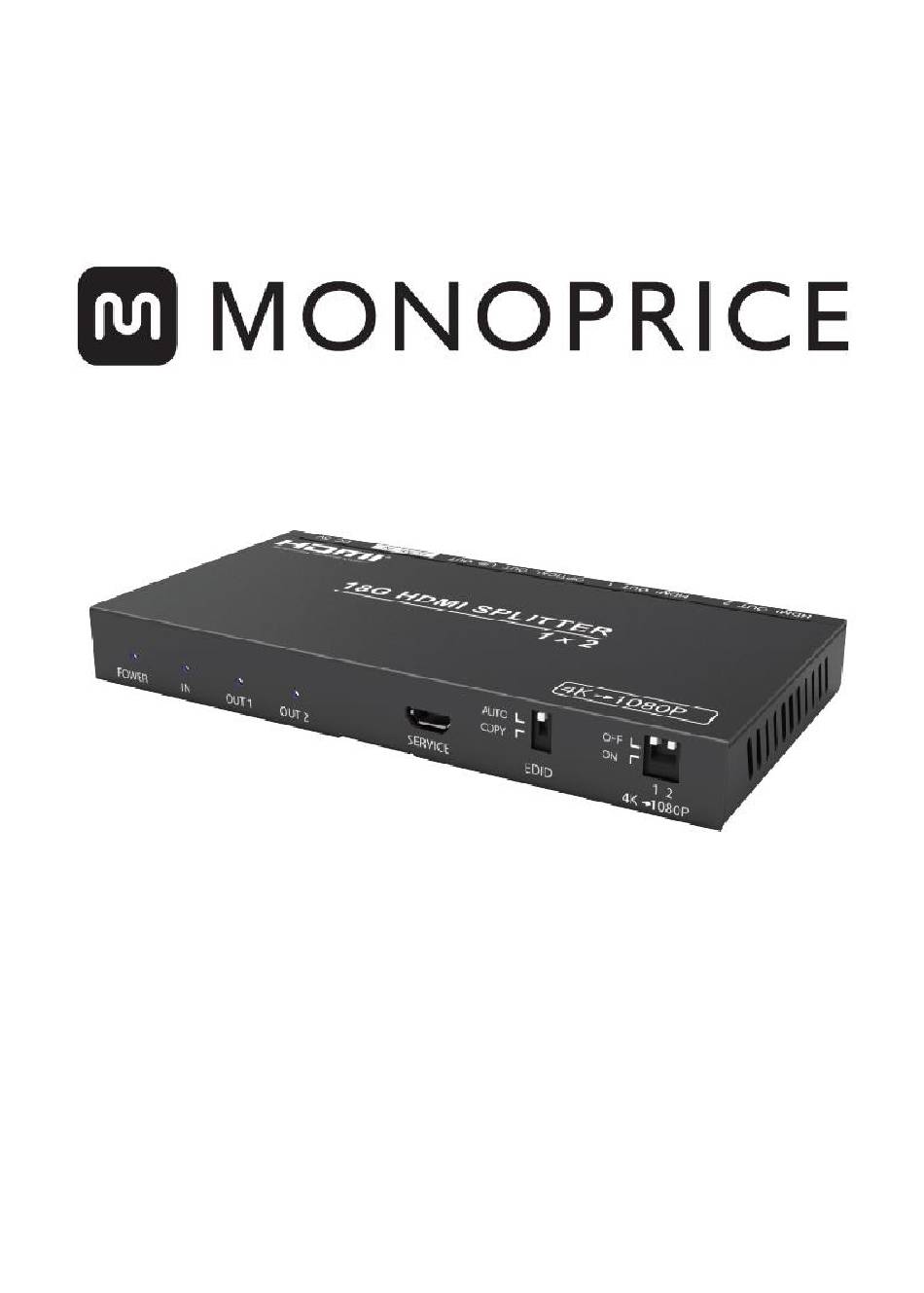

- Page 1 Blackbird™ 4K 1x2 HDMI® Splitter P/N 36741 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 3 Before plugging the unit into a power outlet, ensure that the outlet provides the same type and level of power required by the device. Unplug this device from the power source when not in use. Take care to prevent damage to the power cord. Do not ...
- Page 4 INTRODUCTION This 1x2 HDMI® Splitter allows you to distribute a single HDMI source to two displays. It supports video resolutions up to 4K@60Hz (4:4:4) and complies with the HDMI 2.0b and HDCP® 2.2 standards. It features EDID® Auto and Copy functions, can downscale a 4K video signal to 1080p, and can extract the audio to digital optical and stereo analog outputs.
-
Page 5: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 6: Product Overview
PRODUCT OVERVIEW Front Panel POWER: The LED illuminates blue when power is applied. IN: The LED illuminates blue when an active HDMI® input signal is detected. OUT1/OUT2: The OUT LEDs illuminate blue when an HDMI display is connected to the corresponding output. SERVICE: For use at the factory only. - Page 7 Rear Panel HDMI OUT: Two HDMI® output ports for connection the video displays. OPTICAL OUT: Digital optical audio output for connecting an external amplifier. L/R OUT: 3.5mm stereo analog output for connecting headphones or powered speakers. HDMI IN: HDMI port for connecting the video source device.
-
Page 8: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM SPECIFICATIONS Model 36741 Video Input 1x HDMI® Video Outputs 2x HDMI... - Page 9 1x S/PDIF digital optical, Audio Outputs 1x 3.5mm analog HDMI Version 2.0b HDCP® Version 2.2 (compatible with HDCP 1.4) Bandwidth 18Gbps Maximum Resolution 4K@60Hz (4:4:4) Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 4K: 8-bit, 1080p: 12-bit Input Power 5 VDC, 1A AC Adapter Input Power 100 ~ 240 VAC, 50/60Hz...
-
Page 10: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 11 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
