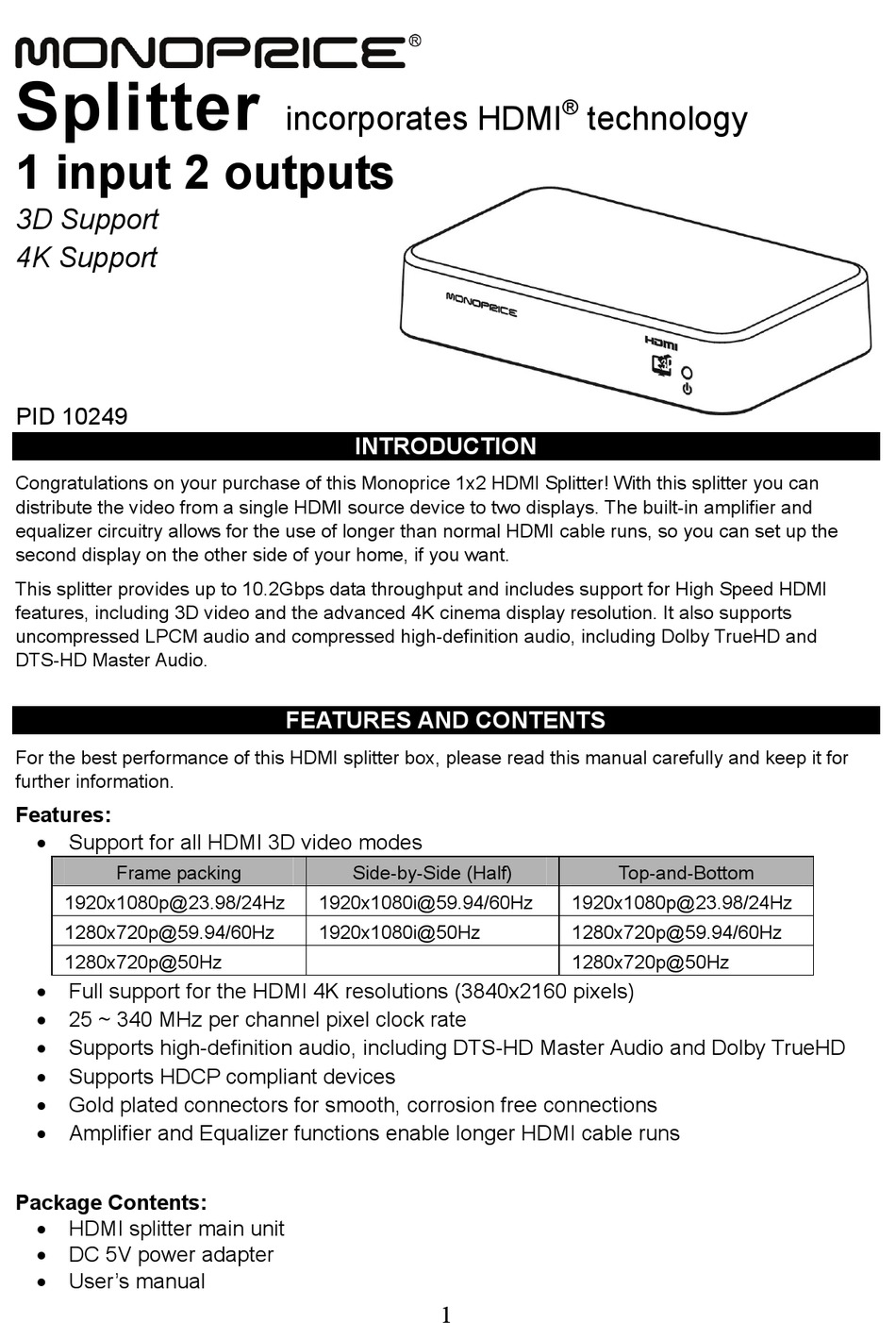

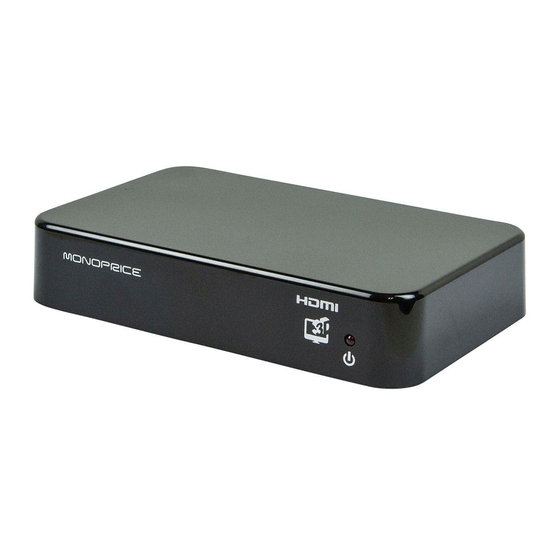

Congratulations on your purchase of this Monoprice 1x2 HDMI Splitter! With this splitter you can
distribute the video from a single HDMI source device to two displays. The built-in amplifier and
equalizer circuitry allows for the use of longer than normal HDMI cable runs, so you can set up the
second display on the other side of your home, if you want.
This splitter provides up to 10.2Gbps data throughput and includes support for High Speed HDMI
features, including 3D video and the advanced 4K cinema display resolution. It also supports
uncompressed LPCM audio and compressed high-definition audio, including Dolby TrueHD and
DTS-HD Master Audio.
For the best performance of this HDMI splitter box, please read this manual carefully and keep it for
further information.
Features:
 Support for all HDMI 3D video modes
Frame packing
1920x1080p@23.98/24Hz
1280x720p@59.94/60Hz
1280x720p@50Hz
 Full support for the HDMI 4K resolutions (3840x2160 pixels)
 25 ~ 340 MHz per channel pixel clock rate
 Supports high-definition audio, including DTS-HD Master Audio and Dolby TrueHD
 Supports HDCP compliant devices
 Gold plated connectors for smooth, corrosion free connections
 Amplifier and Equalizer functions enable longer HDMI cable runs
Package Contents:
 HDMI splitter main unit
 DC 5V power adapter
 User's manual
incorporates HDMI

INTRODUCTION

FEATURES AND CONTENTS

Side-by-Side (Half)
1920x1080i@59.94/60Hz
1920x1080i@50Hz
1
®
technology
Top-and-Bottom
1920x1080p@23.98/24Hz
1280x720p@59.94/60Hz
1280x720p@50Hz
