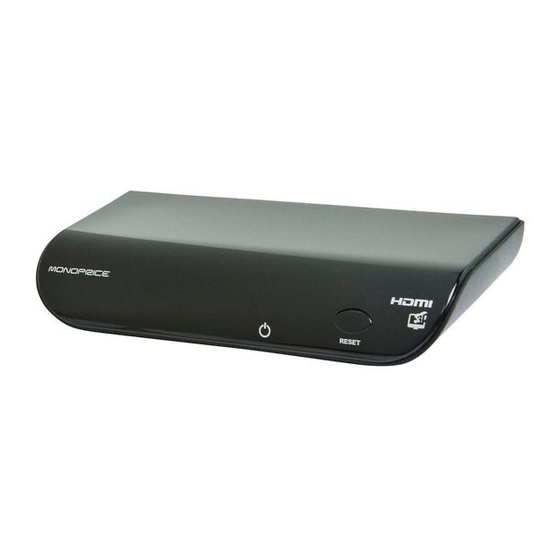

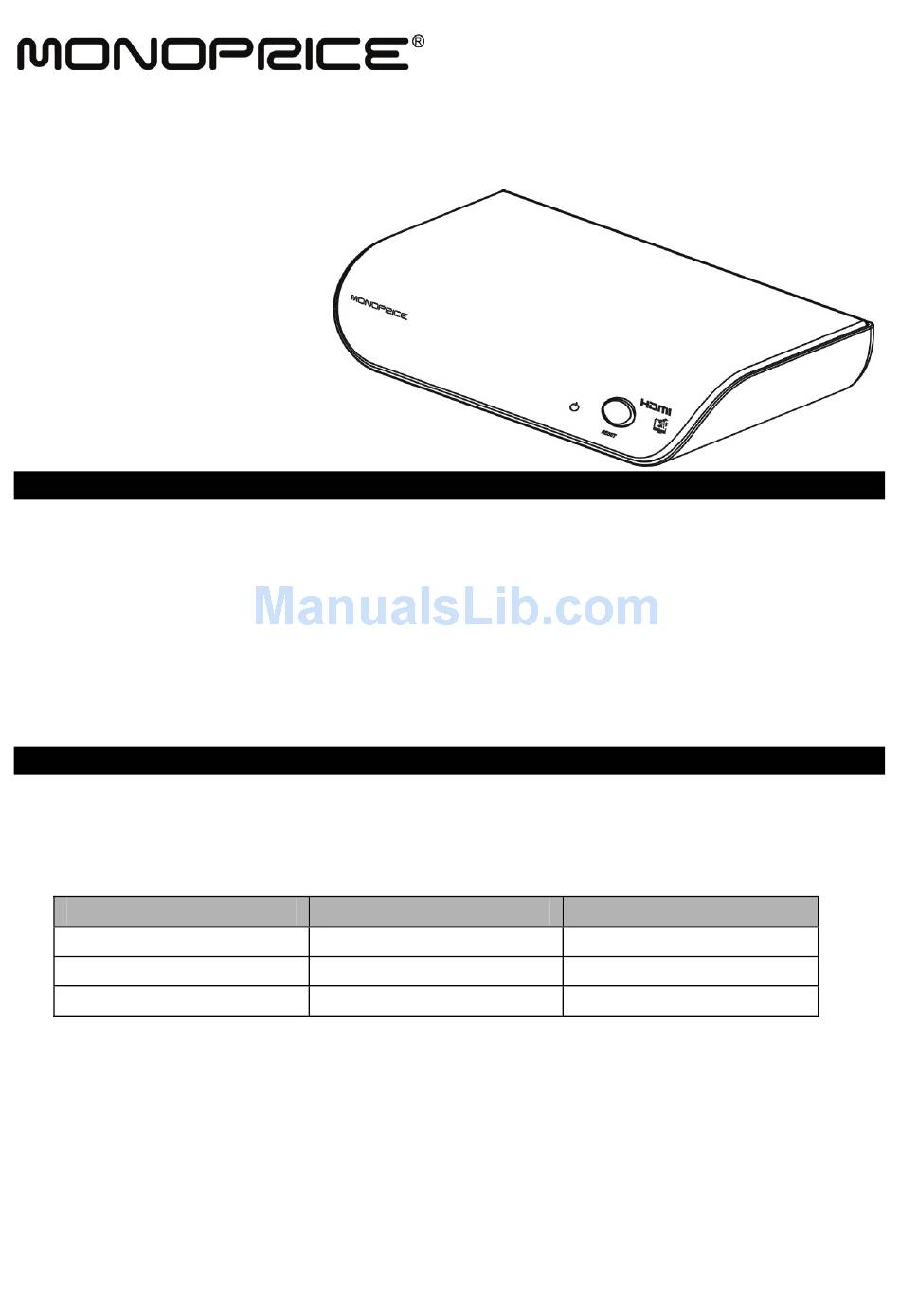

Congratulations on your purchase of this Monoprice 1x4 HDMI Splitter! With this splitter, you can
distribute the video from a single HDMI source device to up to four displays. The built-in amplifier and
equalizer circuitry allows for the use of longer than normal HDMI cable runs, so you can set up the
second display on the other side of your home, if you want.
This splitter provides up to 10.2Gbps data throughput and includes support for High Speed HDMI
features, including 3D video and the advanced 4K cinema display resolution. It also supports
uncompressed LPCM audio and compressed high-definition audio, including Dolby TrueHD™ and
DTS-HD Master Audio™.
For the best performance of this HDMI splitter box, please read this manual carefully and keep it for
further information.
Features:
Support for all HDMI 3D video modes
Frame packing
1920x1080p@23.98/24Hz
1280x720p@59.94/60Hz
1280x720p@50Hz
Full support for the HDMI 4K resolutions (3840x2160 pixels)
25 ~ 340 MHz per channel pixel clock rate
Supports high-definition audio, including DTS-HD Master Audio and Dolby TrueHD
Supports HDCP compliant devices
Gold plated connectors for smooth, corrosion free connections
Amplifier and Equalizer functions enable longer HDMI cable runs
Supports two display type detection techniques
Reset button on front panel for quick system resets
incorporates HDMI

INTRODUCTION

FEATURES AND CONTENTS

Side-by-Side (Half)
1920x1080i@59.94/60Hz
1920x1080i@50Hz
1
®
technology
Top-and-Bottom
1920x1080p@23.98/24Hz
1280x720p@59.94/60Hz
1280x720p@50Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monoprice 10250

  • Page 1 PID 10250 INTRODUCTION Congratulations on your purchase of this Monoprice 1x4 HDMI Splitter! With this splitter, you can distribute the video from a single HDMI source device to up to four displays. The built-in amplifier and equalizer circuitry allows for the use of longer than normal HDMI cable runs, so you can set up the second display on the other side of your home, if you want.
  • Page 2 Package Contents:  HDMI splitter main unit  DC 5V power adapter  User’s manual CONNECTION DIAGRAM The following illustration shows a typical connection using this HDMI splitter, a Blu-ray drive source, and four displays. Power Adaptor 3D Blue-ray DVD player Detection Mode Selection HDTV 4 HDTV 3...
  • Page 3 Detection Method B: Priority Mode The second detection method is much simpler. Starting with the first output port, the splitter polls each port for an active display. It will then send the EDID information from the first display discovered to the source device.
