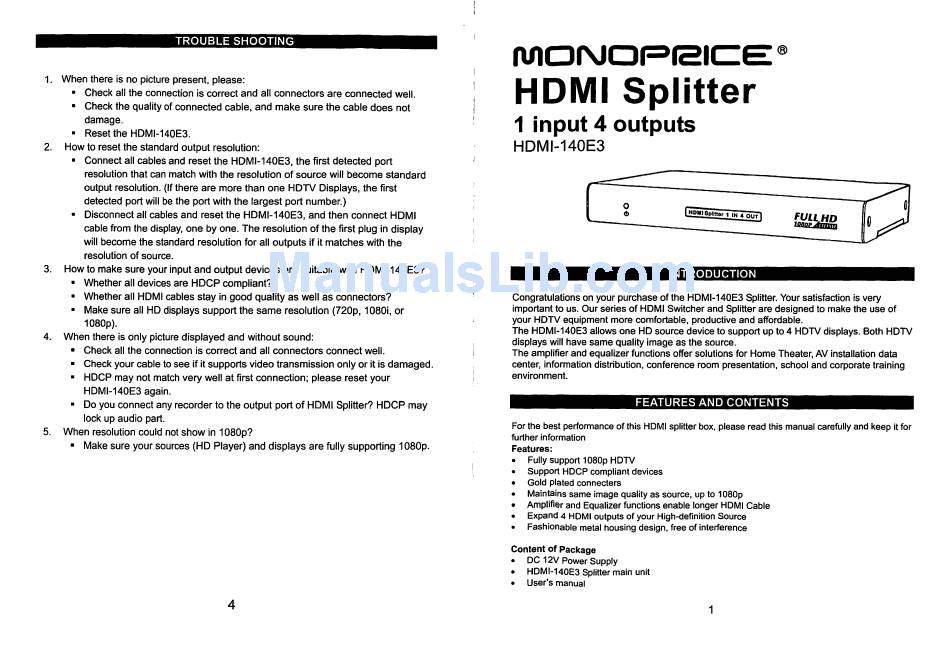

Monoprice HDMI-140E3 Manual

TROUBLE SHOOTING
1. When there is no picture present, please:
■ Check all the connection is correct and all connectors are connected well.
■ Check the quality of connected cable, and make sure the cable does not
damage.
- Reset the HDMI-140E3.
2. How to reset the standard output resolution:
■ Connect all cables and reset the HDMI-140E3, the first detected port
resolution that can match with the resolution of source will become standard
output resolution. (If there are more than one HDTV Displays, the first
detected port will be the port with the largest port number.)
■ Disconnect all cables and reset the HDMI-140E3, and then connect HDMI
cable from the display, one by one. The resolution of the first plug in display
will become the standard resolution for all outputs if it matches with the
resolution of source.
3. How to make sure your input and output devices are suitable with HDMI-140E3?
■ Whether all devices are HDCP compliant?
■ Whether all HDMI cables stay in good quality as well as connectors?
■ Make sure all HD displays support the same resolution (720p, 1080i, or
1080p).
4. When there is only picture displayed and without sound:
■ Check all the connection is correct and all connectors connect well.
■ Check your cable to see if it supports video transmission only or it is damaged.
■ HDCP may not match very well at first connection; please reset your
HDMI-140E3 again.
■ Do you connect any recorder to the output port of HDMI Splitter? HDCP may
lock up audio part.
5. When resolution could not show in 1080p?
■ Make sure your sources (HD Player) and displays are fully supporting 1080p.
HDMI Splitter
1 input 4 outputs
HDMI-140E3
INTRODUCTION
Congratulations on your purchase of the HDMI-140E3 Splitter. Your satisfaction is very
important to us. Our series of HDMI Switcher and Splitter are designed to make the use of
your HDTV equipment more comfortable, productive and affordable.
The HDMI-140E3 allows one HD source device to support up to 4 HDTV displays. Both HDTV
displays will have same quality image as the source.
The amplifier and equalizer functions offer solutions for Home Theater, AV installation data
center, information distribution, conference room presentation, school and corporate training
environment.
FEATURES AND CONTENTS
For the best performance of this HDMI splitter box, please read this manual carefully and keep it for
further information
Features:
Fully support 1080p HDTV
Support HDCP compliant devices
Gold plated connecters
Maintains same image quality as source, up to 1080p
Amplifier and Equalizer functions enable longer HDMI Cable
Expand 4 HDMI outputs of your High-definition Source
Fashionable metal housing design, free of interference
Content of Package
• DC 12V Power Supply
• HDMI-140E3 Splitter main unit
• User's manual
