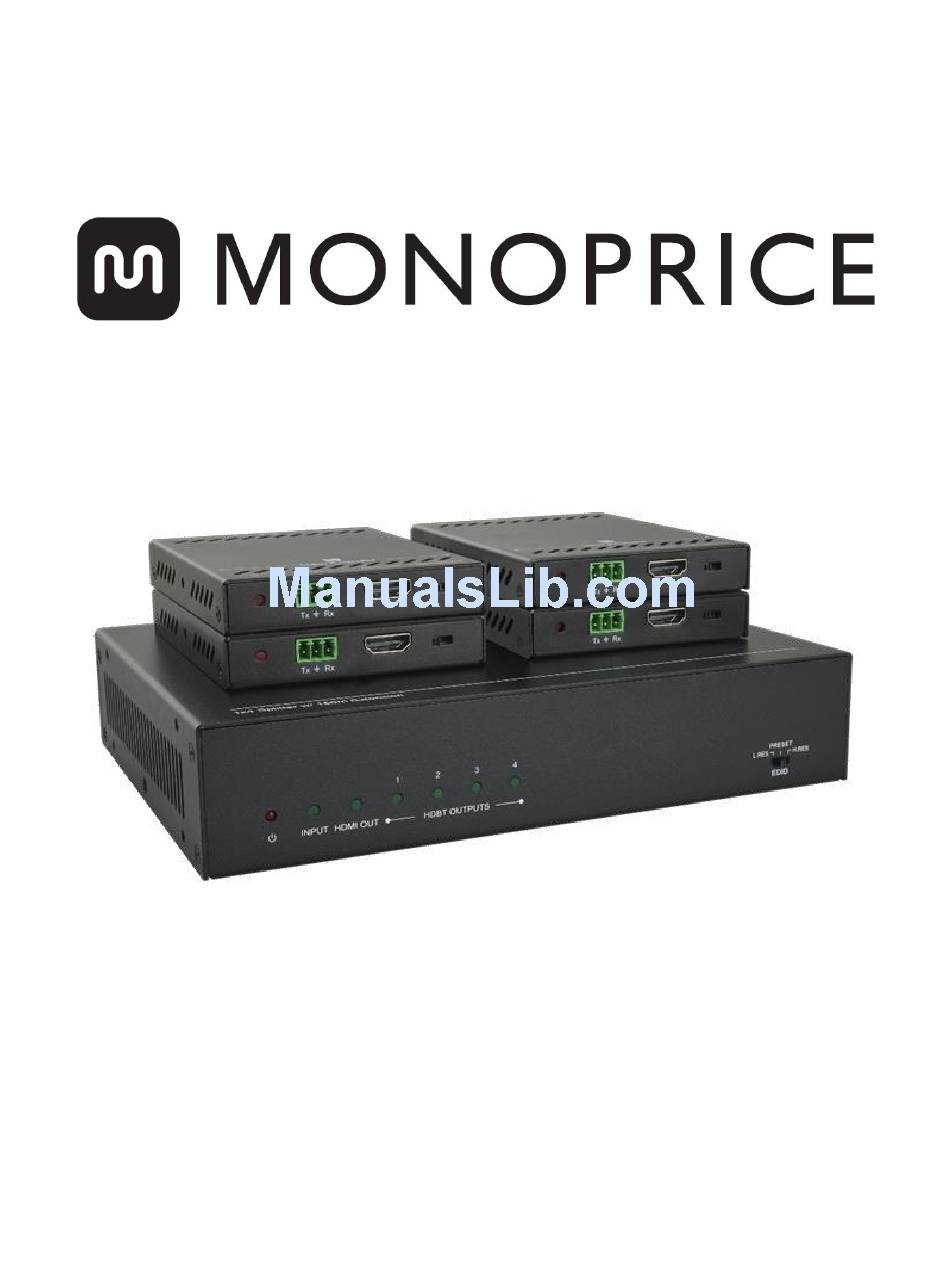

- Page 1 Blackbird™ HDBaseT™ 1x4 Splitter and Extender P/N 31058 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 INTRODUCTION ........................................ 4 FEATURES ..........................................4 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS ....................................5 PRODUCT OVERVIEW ....................................6 Splitter Front Panel ....................................6 Splitter Rear Panel....................................6 Receivers ......................................... 7 SAMPLE CONNECTION DIAGRAM ..............................8 IR CONTROL......................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 4: Introduction

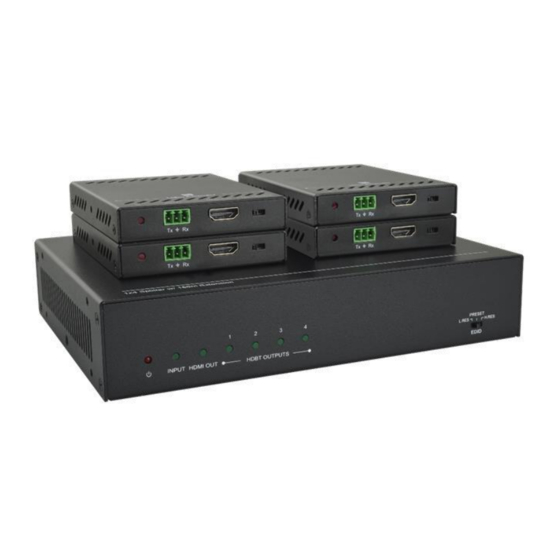

INTRODUCTION The Blackbird™ HDBaseT™ 1x4 Splitter and Extender features a single HDMI® input, which splits into four HDBaseT outputs and an HDMI pass-through output for connecting a local HDMI display. It supports video resolutions up to 1080p@60Hz and all HDMI audio formats. It can extend the HDBaseT signal to the included HDBaseT receiver to distances up to 492 feet (150 meters) using a single Cat6 Ethernet cable. -
Page 5: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 6: Product Overview
PRODUCT OVERVIEW Splitter Front Panel 1. POWER LED: The LED illuminates red when power is applied. 2. INPUT LED: The LED illuminates green when there is HDMI® source input. 3. HDMI OUT: The LED illuminates green when there is HDMI output. 4. -
Page 7: Receivers
3. HDBT OUTPUTS: Four RJ45 jacks for connecting a Cat6 Ethernet cable to connect with the HDBaseT™ receivers. The HDCP LEDs illuminate green when the video contains HDCP protected content. The LINK LEDs illuminate yellow when there is a valid link with the corresponding HDBaseT receiver. 4. -
Page 8: Sample Connection Diagram
position, it allows you to update the Valens IC program by running a batch file on your computer. 5. HDBT OUT: RJ45 connector for connecting the Cat6 Ethernet cable from the splitter. The HDCP LED illuminates green when the video contains HDCP protected content. The LINK LED illuminates yellow when there is a valid link with the splitter. -
Page 9: Ir Control
IR CONTROL This kit features bi-directional infrared pass-through. It includes one IR receiver and four IR transmitters, which allows for control of the remote displays/projectors from the source location. In order to control the source device from the remote locations, you will need to provide four IR receivers and one IR transmitter. -
Page 10: Controlling The Source Device
Controlling the Source Device To control the source device, you will need to provide one IR transmitter and four IR receivers. Plug the IR transmitter into the IR ALL OUT port on the splitter, then position the IR emitter where it can transmit IR signals to the IR receiving eye on the source device. Next, plug the IR receivers into the IR IN jacks on each of the receivers, then position the IR eyes where they can receive signals from the remote control. -
Page 11: Edid Management
EDID MANAGEMENT The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the capabilities of the connected display. The EDID switch on the front panel is used to set the basic behavior of the EDID system. -
Page 12: Rs-232 Control
0101 Sets the resolution to 2D 720p with 2-channel audio. 0110 Sets the resolution to 3D 720p with 2-channel audio. 0111 Sets the resolution to 2D 720p with multichannel audio. 1000 Sets the resolution to 3D 720p with multichannel audio. 1001 Sets the resolution to 1080p with 2-channel audio. -
Page 13: System Configuration
The switch can respond to the following RS-232 commands: System Configuration Command Function Feedback OFF0. Turns off all outputs OFF All OFF1. Turns off the local HDMI® output OFF 1 OFF2. Turns off the HDBT 1 output OFF 2 OFF3. Turns off the HDBT 2 output OFF 3 OFF4. -
Page 14: Technical Support
ON 5 TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 15: Specifications
SPECIFICATIONS Splitter Model 31058 Video Input 1x HDMI® Video Outputs 1x HDMI, 4x HDBaseT™ Maximum Input Resolution 4K@30Hz HDMI Maximum Output Resolution 4K@30Hz HDBaseT Maximum Output Resolution 1080p@60Hz Bandwidth 10.2 Gbps Transmission Method HDBaseT Transmission Distance up to 492 feet (150 meters) HDMI Version HDCP Version Input Power... -
Page 16: Receivers
4.1" x 3.3" x 0.6" (104 x 84 x 16 mm) Weight 4.9 oz. (140 g) Blackbird™ is a trademark of Monoprice Inc. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or...
