Tigo TS4-F Installation & Quick Start Manual

Hide thumbs Also See for TS4-F:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Installation Manual

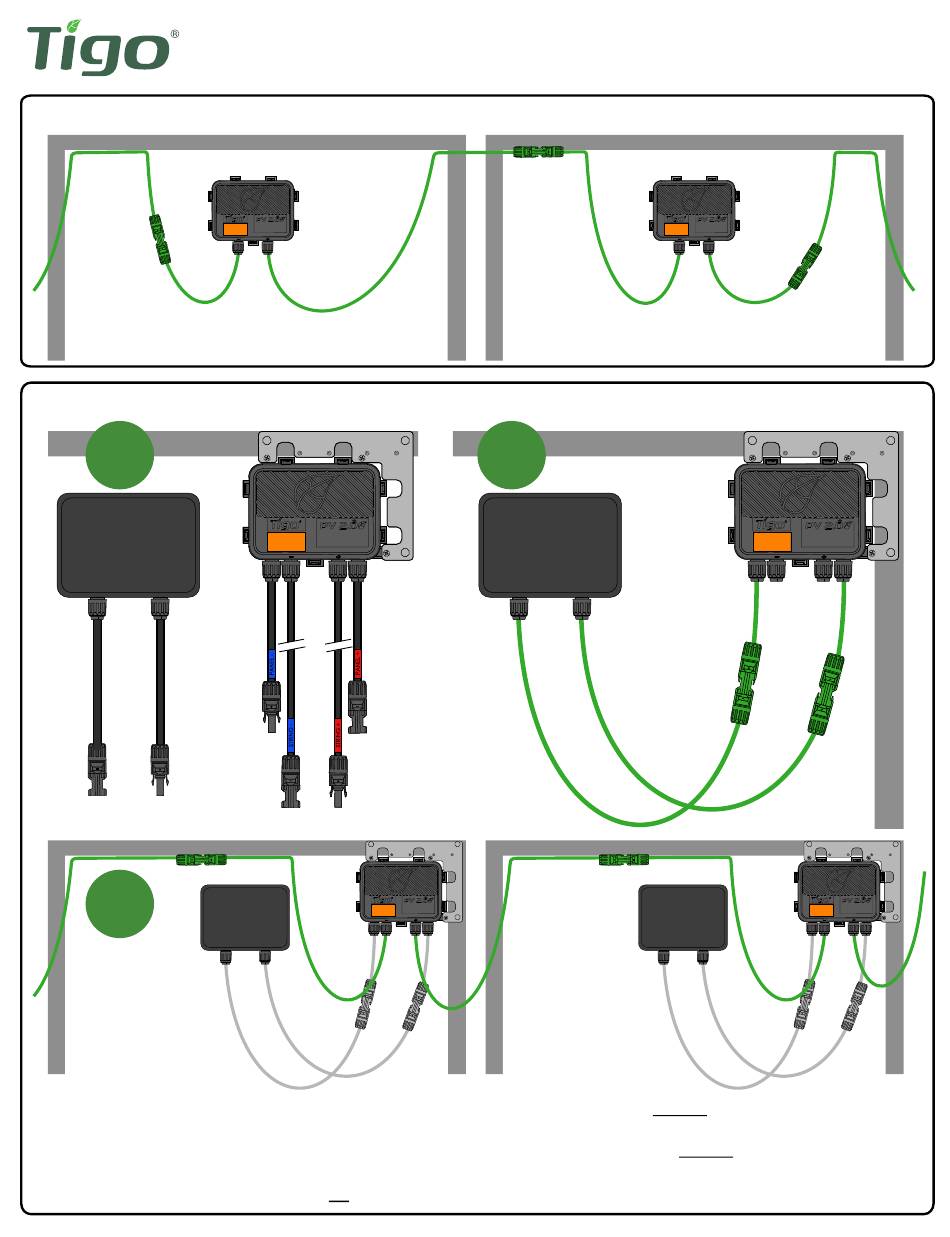

TS4-F (Integrated)
TS4-R-F (Add-on/Retrofit)
1
3
· Note: When installing TS4-R-F, connect the input cables to the PV module before connecting
the TS4-R-F output cables in series.
· If disconnecting TS4-R-F, disconnect the TS4-R-F output cables from the string before disconnecting
the input cables from the PV module.
· RSS transmitter must be powered off during TS4-F or TS4-R-F installation.
002-00061-00
TS4-F Installation Quick Start Guide
2
03/05/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS4-F and is the answer not in the manual?

Questions and answers

Related Manuals for Tigo TS4-F

Summary of Contents for Tigo TS4-F

  • Page 1 TS4-R-F output cables in series. · If disconnecting TS4-R-F, disconnect the TS4-R-F output cables from the string before disconnecting the input cables from the PV module. · RSS transmitter must be powered off during TS4-F or TS4-R-F installation. 002-00061-00 03/05/2019...
  • Page 2 3 RSS Core (CT) Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements. Note: Install TS4-F before powering on RSS Transmitter · Drill holes in enclosure for conduit (see drilling guide for placement) ·...
  • Page 3 Homerun Only (+) or (-) through RSS Core Note: Install TS4-F before powering on RSS Transmitter · Pass either positive or negative homerun through RSS Core · Connect wires to AC side of power supply Max number of strings per RSS Core: 10...
  • Page 4 DC Ground Transmitter AC Ground Conduit Ground Note: Install TS4-F before powering on RSS Transmitter · Connect AC and DC ground wires to DIN rail · Ground all conduit connections · Turn on AC power to Transmitter power supply to activate...
  • Page 5 RSS Core (CT) Transmitter power supply must be on same AC branch circuit as inverter to meet rapid shutdown requirements Note: Install TS4-F before powering on RSS Transmitter · Drill holes in enclosure for conduit (see drilling guide for placement) ·...
  • Page 6 Only (+) or (-) through RSS Core Homerun Note: Install TS4-F before powering on RSS Transmitter · Pass either positive or negative homerun through RSS Cores · Connect wires to AC side of power supply Max number of strings per RSS Core: 10...
  • Page 7 DC Ground Transmitter AC Ground Conduit Ground Note: Install TS4-F before powering on RSS Transmitter · Connect AC and DC ground wires to DIN rail · Ground all conduit connections · Turn on AC power to Transmitter power supply to activate...
  • Page 8 Enclosure Drilling Guide for .75" Conduit Single Core Dual Core 41.6 41.6 41.6 41.6 47.1 47.1 47.1 47.1 2X Ø 28 Ø 28 3X Ø 28 2X Ø 28 Enclosure Drilling Guide for 1" Conduit Single Core Dual Core 41.6 41.6 41.6 52.3...
  • Page 9 Output voltage with active transmitter signal will be normal module V or V · If output is 0V contact Tigo support Check that the system conforms to the design rules for TS4-F: · Up to 10 strings per RSS Core (CT) ·...
