Tigo TS4-A-2F Installation & Quick Start Manual

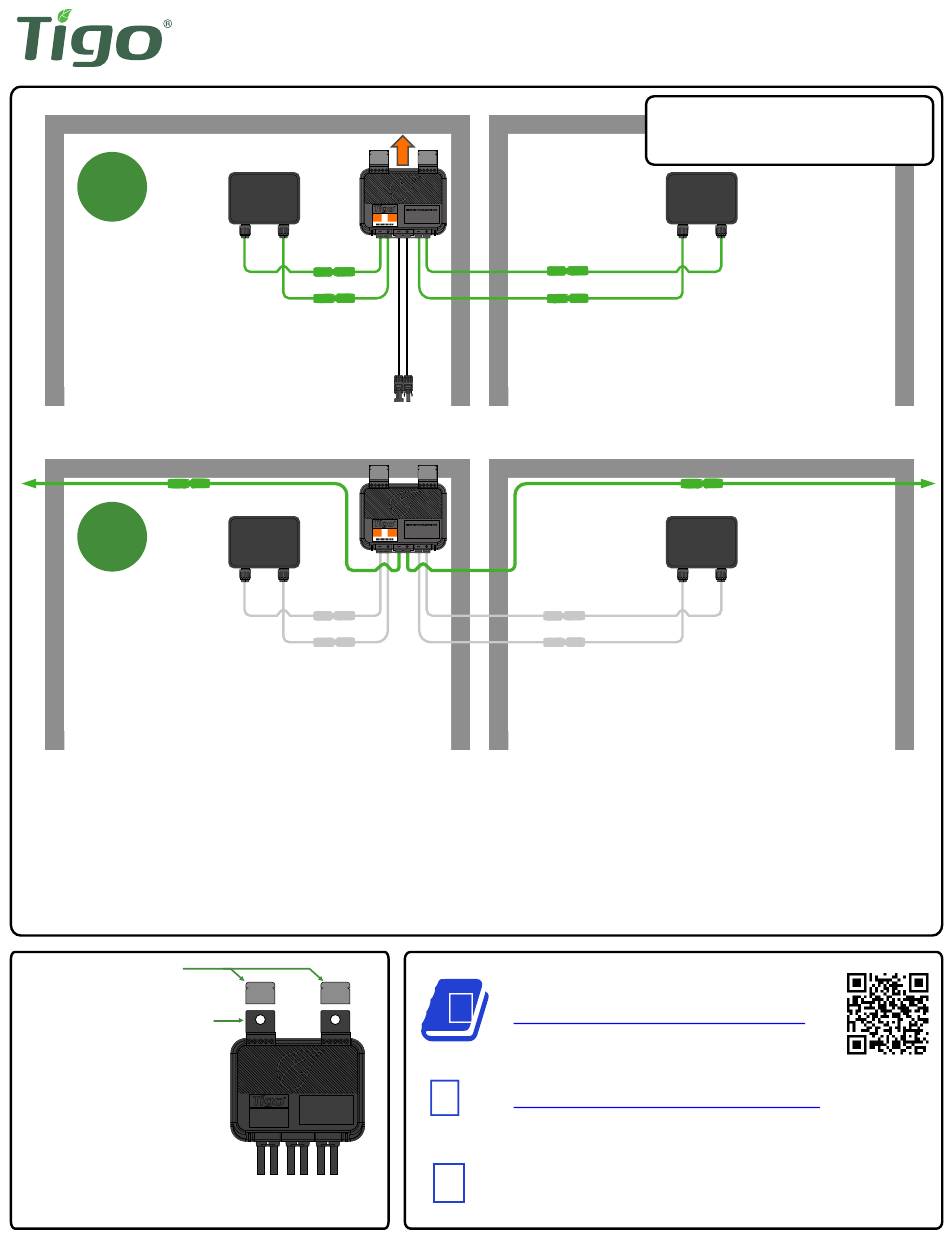

TS4-A-2F Installation Quick Start Guide

1
PV Module 1
2
PV Module 1
Note: When installing TS4-A-2F, always connect the input cables to the PV modules
before connecting the TS4-A output cables in series.
If disconnecting TS4-A-2F, always disconnect the TS4-A-2F output cables from the string
before disconnecting the input cables from the PV modules.
RSS Transmitter must be powered OFF during TS4-A-2F installation.
Removable clips
Mounting holes (M8)
For installation with frameless modules,
remove metal clips and bolt TS4-A to rail.

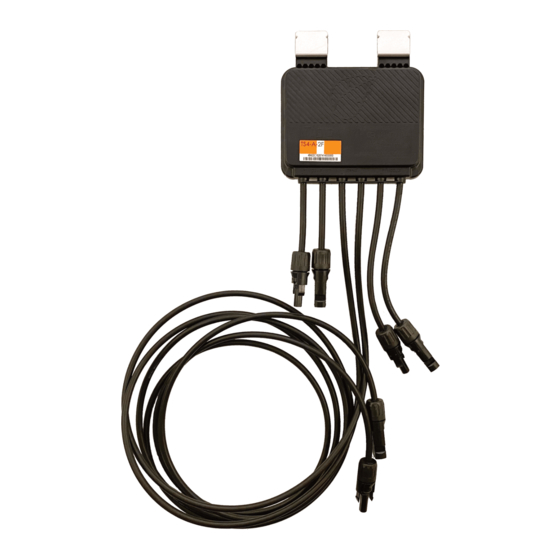

TS4-A-2F
4 - 123A
-
+
1. Connect PV modules to TS4-A-2F inputs
TS4-A-2F
4 - 123A
-
+
2. Connect TS4-A-2F outputs in series
Tigo Rapid Shutdown
NEC 690.12-2017 and C22.1-2015 Rule 64.218
DO NOT DISCONNECT
UNDER LOAD
DANGER
Tigo Rapid Shutdown
DO NOT DISCONNECT
UNDER LOAD
PV Module 2
Tigo Rapid Shutdown
DO NOT DISCONNECT
UNDER LOAD
PV Module 2
support.tigoenergy.com
support@tigoenergy.com
International: 00800.2255.8446
Americas: +1.408.402.0802
If connecting 2F to a single PV module:
• Connect PV module to Input 1
• Connect Input 2 cables together
-
+
-
+
