USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

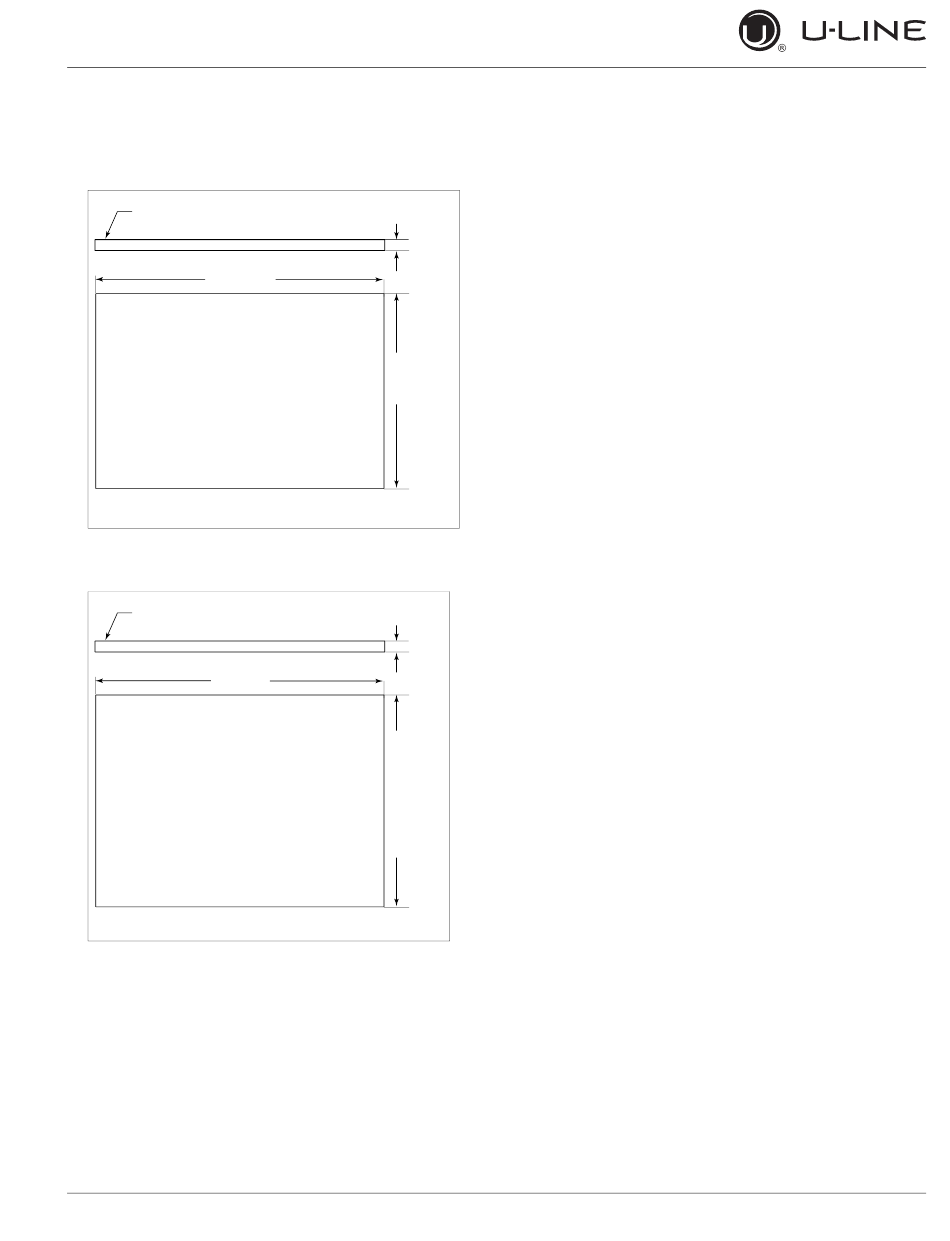

Extended Integrated Panel Dimensions
Top Drawer
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
23-1/2"
(595 mm)
Integrated Panel
Bottom Drawer
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
23-1/2"
(595 mm)
Integrated Panel
* A minimum of 1" (25 mm) is required from the
floor to the bottom of the extended integrated
panel/frame for proper ventilation.
3/4"
(20 mm)
14-15/16"
(379 mm)
3/4"
(20 mm)
17-13/16"
to
18-13/16"
(452 mm
to
478 mm)
9
u-line.com
Integrated Panel Dimensions 6
