USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions
Metric measurements rounded and optimized.
STANDARD PANELS
NOTICE
Due to differences in surrounding cabinetry the
panel may not perfectly align with drawer. The
procedure below is designed to provide a
finished integrated panel that seamlessly
integrates with surrounding cabinetry.
Panel Preparation
A full integrated drawer panel completely covers the
drawer and provides a built-in appearance.
Two panels are required per unit. Dimensions for both
panels are the same for standard integrated panels and
handleless integrated panels.
NOTICE
Each drawer panel must not weigh more than
20 lbs (10 kg).
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardware is installed.
1. Cut the panels to the dimensions listed in the diagram
below.
2. Optional: Stain or finish panel to desired stain or color.
Be sure to closely follow the instructions provided by
the manufacturer.
3. Optional: Install handles and hardware.
NOTICE
When applying an integrated panel to a unit,
ensure that both sides are finished in order to
prevent warping.

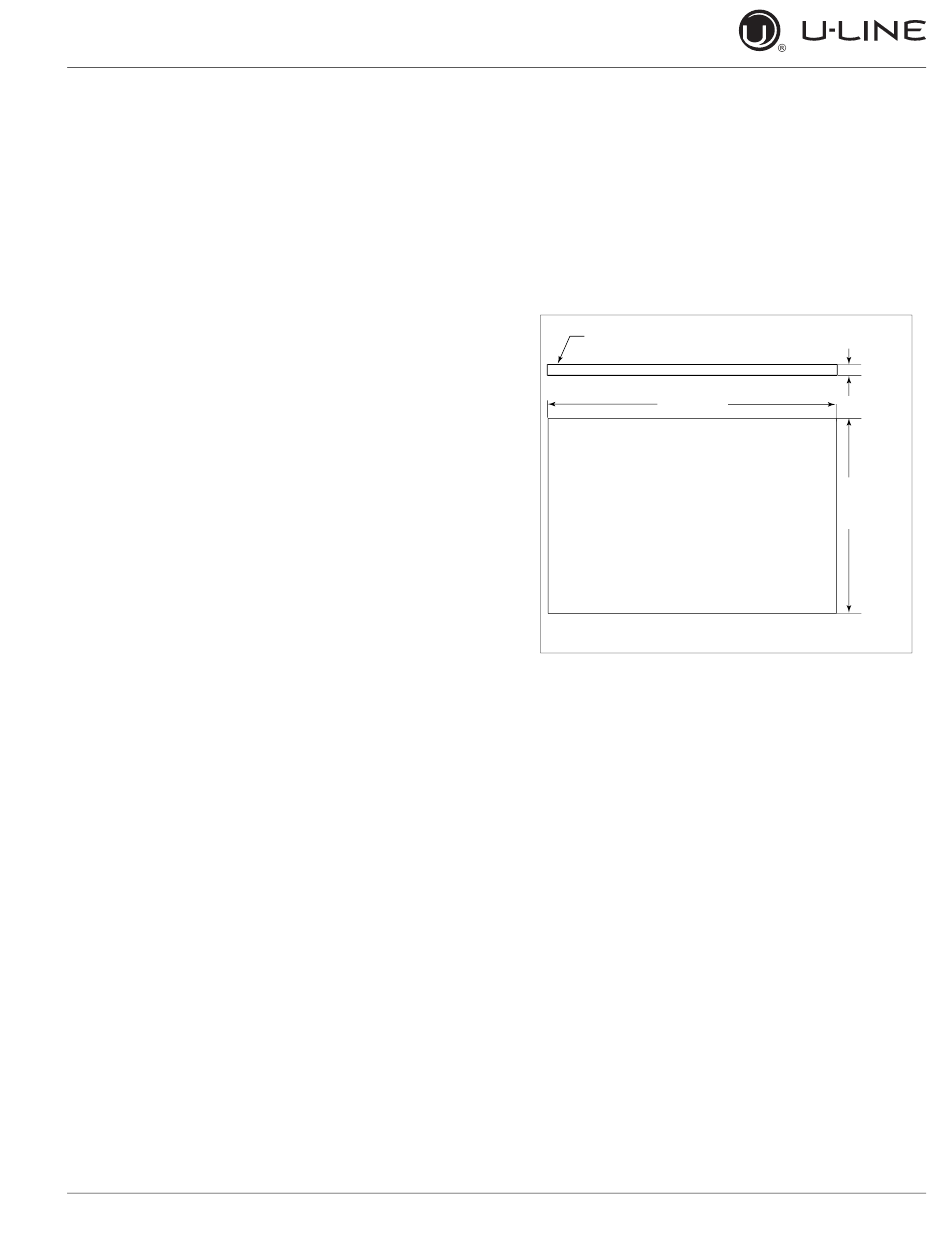

Standard Panel Dimensions
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
23-1/2"
(595 mm)
Integrated Panel
4
u-line.com
3/4"
(20 mm)
14-15/16"
(379 mm)
Integrated Panel Dimensions 1
