USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

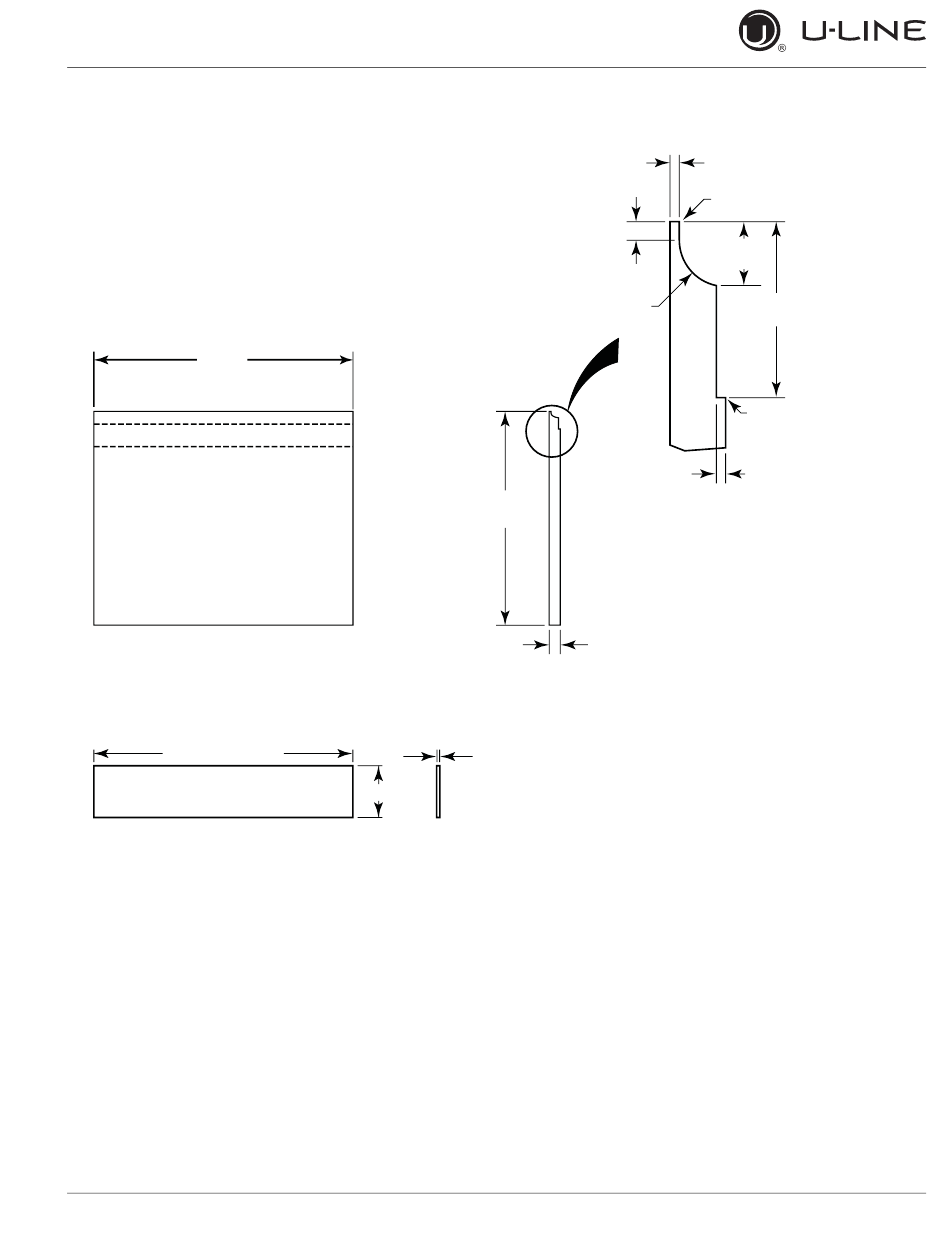

Handleless Integrated Panel Dimensions
23-1/2"
(595 mm)
23-1/2" (595 mm)
13-13/16"
(351 mm)
Wooden Insert Dimensions
1/8" (3 mm)
3-1/2"
(89 mm)
6
1/8" (3 mm)
Top Design
1/4" (6 mm)
7/8" (22 mm)
Ref.
R 5/8"
(R 16 mm)
Top Detail
3/4" (20 mm)
Integrated Panel Dimensions 3
u-line.com
2-3/8"
(60 mm)
Insert Notch
Wooden Insert
Notch Depth: 1/8" (3 mm)
