Left Side; Right Side - Rocktron Short Timer Retro Digital Delay Instruction Manual

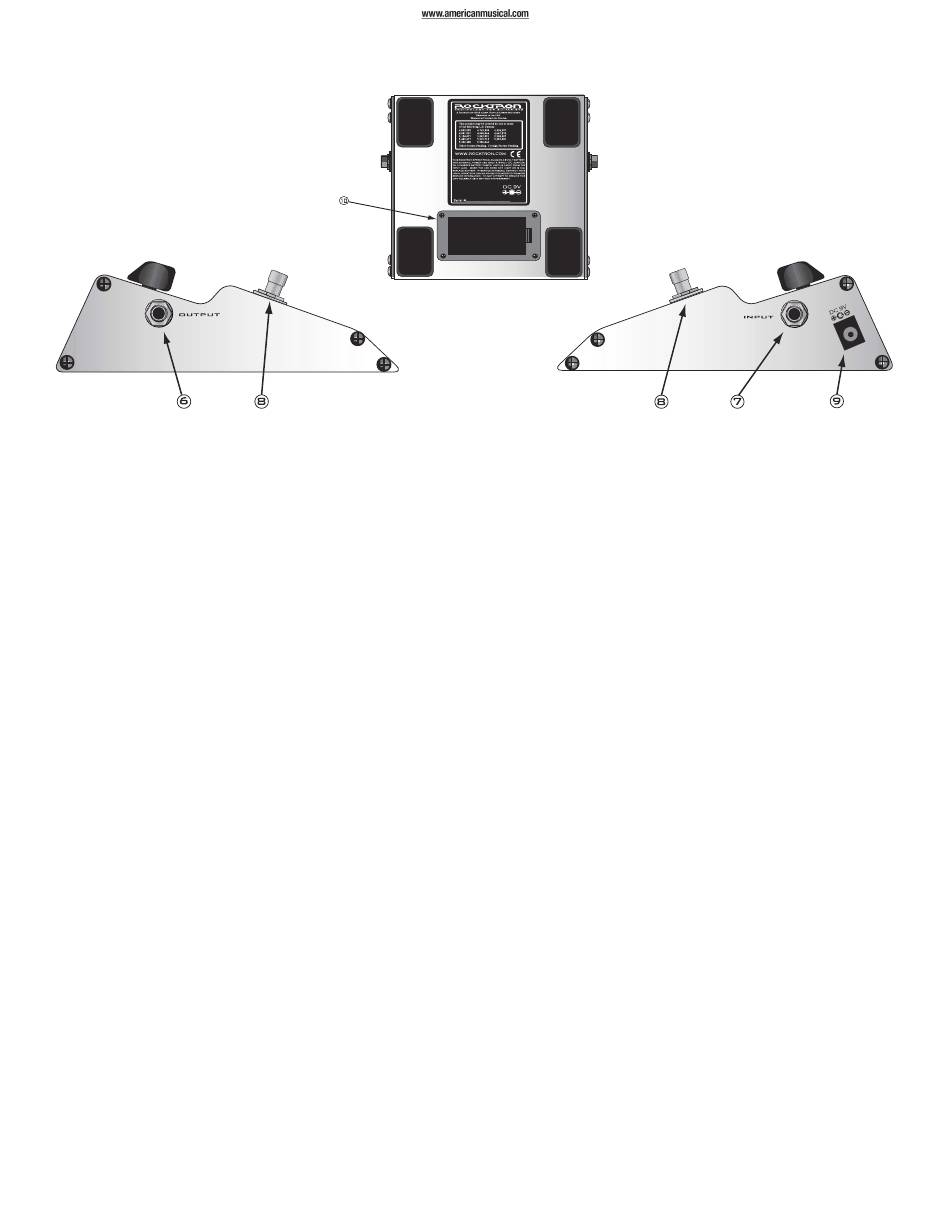

Left Side

Output Jack - Using a standard guitar cable with a 1/4" jack,
6
plug into the input of your guitar amplifier or next stomp box
Input - Using a standard guitar cable with a 1/4" jack, plug the
7
output of your distortion pedal or your guitar into this jack. If
using in an effects loop plug the cable from the "send jack" on
the amp or effects unit to this jack.
On/Off Switch - This switch determines whether the pedal is
8
"active" or "bypassed" - When "active" the blue LED will be lit.
When bypassed the LED will not be lit.
DC 9V Input - To use external power (not provided) use only a
9
9-Volt DC adapter
9-Volt Battery Compartment - to access pull on small tab labeled
10
"OPEN". Replace with a new 9-Volt battery. Always remember
to unplug your guitar cords from the pedal to conserve battery
life. Some battery drain may take place when unit is plugged in
(even if the unit is bypassed).
Bottom

Right Side
