5.6 Optical connectors

5.6 Optical connectors
Information on optical connectors
The SCALANCE XC100-4OBR has 4 fiber-optic interfaces. Two of the interfaces (P1 and
P2) are used to connect the device to the ring or bus structure of the network. The two other
interfaces (P1' and P2') are used to connect an end device.

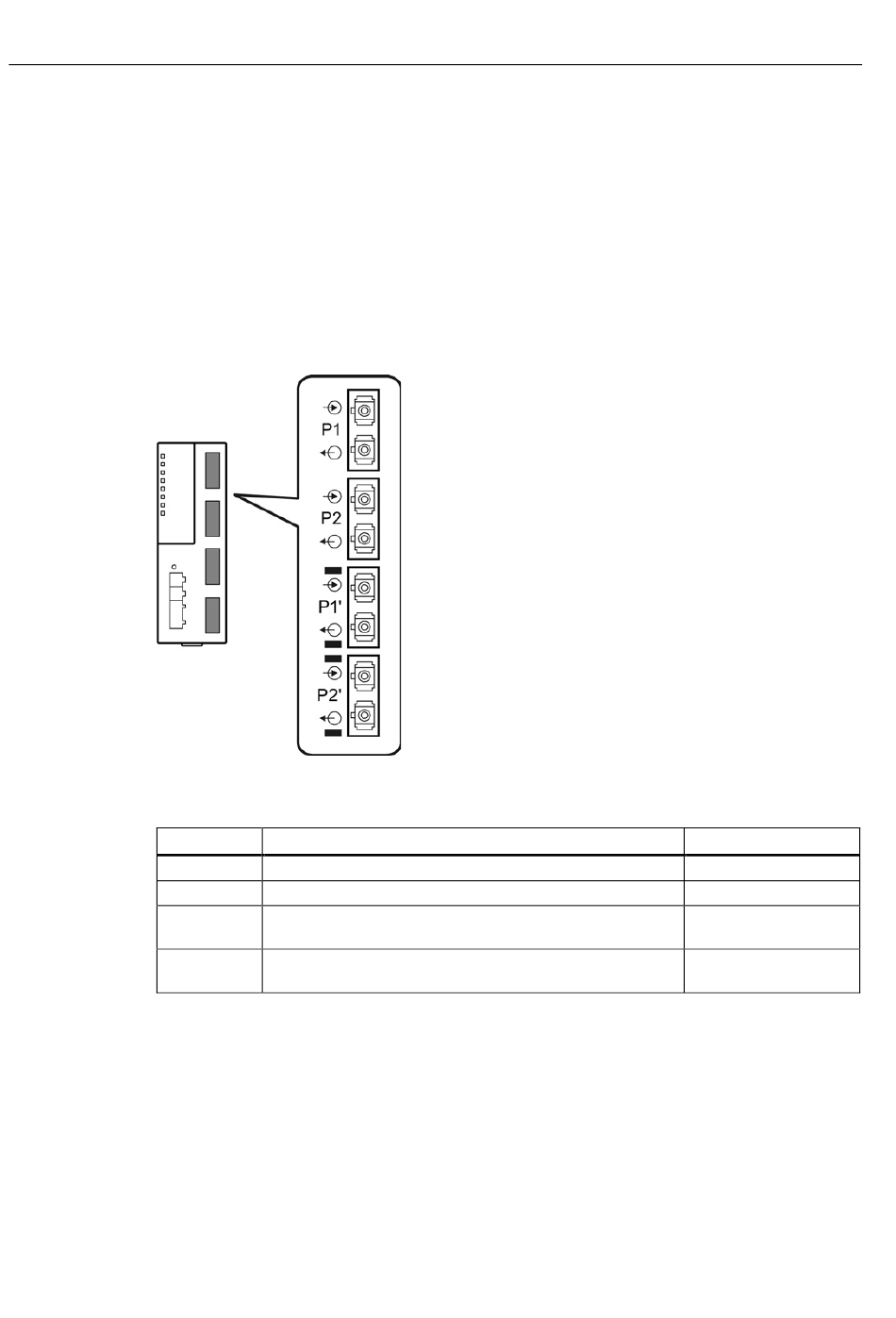

Position and description
Figure 5-4
Port number
P1
P2
P1'
P2'
42
Position of the optical connectors on the SCALANCE XC100-4OBR and description of
the ports
Description
FO interface for connection to network port 1
FO interface for connection to network port 2
FO interface for connection of the end device to network
port 1
FO interface for connection of the end device to network
port 2
Operating Instructions, 10/2013, C79000-G8976-C297-02
Designation
Network interface
Network interface
End device interface
End device interface
SCALANCE XC100-4OBR
