2. Connecting to the High Speed Camera

2. Connecting to the High Speed Camera
This section explains how to connect the FAST Drive to the Photron high speed
camera.

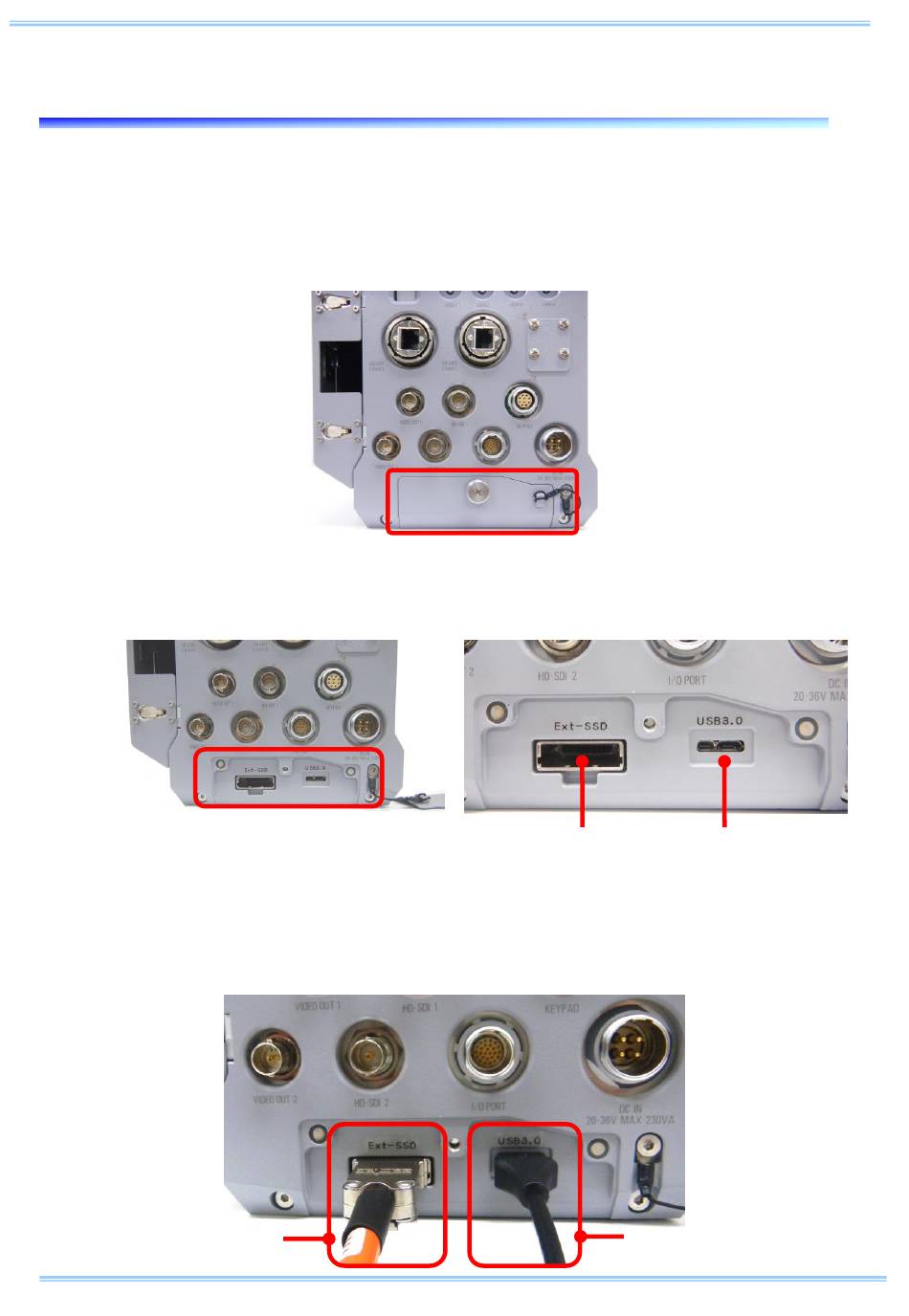

① Remove the FAST Drive slot cover on the rear of the camera.
② The camera is equipped with a FAST Drive connector and a USB 3.0
connector.
③ Connect the dedicated cable to the FAST Drive connector and the USB
cable (micro B) to the USB 3.0 connector.
FAST Drive
connector
USB 3.0
connector
