Corsair CARBIDE Series Installation Manual
Hide thumbs
Also See for CARBIDE Series:
- Manual (76 pages) ,
- Installation manual (64 pages) ,
- Quick start manual (27 pages)
Advertisement
Quick Links
CARBIDE SERIES
®
SPEC-OMEGA
产品：机箱
进口商：可赛尔（深圳）贸易有限公司
地址：深圳市罗湖区嘉宾路 2002 号彭年广场 35 楼 3555 室
产地：中国
技术服务热线：400 841 7130
© 2017-2019 CORSAIR MEMORY, Inc.

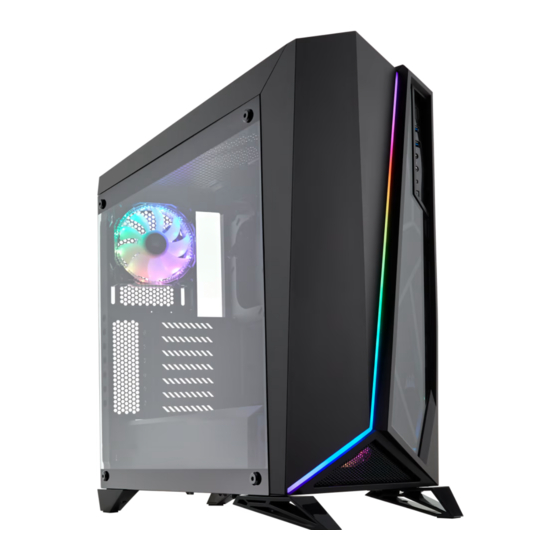

INSTALLATION GUIDE
安装指南
n
版权所有。实物可能与所示图片不同。
© 2017-2019 CORSAIR MEMORY, Inc.
All rights reserved. Product may vary slightly from those pictured.
49-001638 AB
Advertisement
Related Manuals for Corsair CARBIDE Series
Summary of Contents for Corsair CARBIDE Series
-
Page 1: Installation Guide
SPEC-OMEGA 产品：机箱 进口商：可赛尔（深圳）贸易有限公司 地址：深圳市罗湖区嘉宾路 2002 号彭年广场 35 楼 3555 室 产地：中国 技术服务热线：400 841 7130 © 2017-2019 CORSAIR MEMORY, Inc. INSTALLATION GUIDE 安装指南 版权所有。实物可能与所示图片不同。 © 2017-2019 CORSAIR MEMORY, Inc. All rights reserved. Product may vary slightly from those pictured. 49-001638 AB... - Page 2 CARBIDE SERIES SPEC-OMEGA ® 机箱规格 Case specifications Accessory kit contents 配件目录 Length ........... 495mm 长度 ............495mm Width ............. 233mm 宽度 ............233mm 高度 ............516mm Height ............ 516mm 最大GPU长度 .........370mm Maximum GPU length ..... 370mm Maximum CPU height ..... 170mm 最大CPU高度 .........170mm 最大PSU长度...
- Page 3 CARBIDE SERIES SPEC-OMEGA ® 机箱特点 Case features 钢化玻璃侧面板 Tempered glass side panel 固定侧面板 Solid side panel 1x 120mm LED 风扇 1x 120mm LED fan 1x 120mm 风扇 1x 120mm fan 前面板 Front bezel 顶盖 Top bezel HDD 托架 HDD cage and trays...
- Page 4 CARBIDE SERIES SPEC-OMEGA ® 1. 拆卸侧面板 | Removing the side panel 3. 安装 HDDs | Installing HDDs 2. 安装主板 | Installing the motherboard 4. 安装 SSDs | Installing SSDs MATX...
- Page 5 CARBIDE SERIES SPEC-OMEGA ® 5. 安装电源 | Installing PSU 7. 拆卸前饰板与顶盖 | Removing front and top panels 6. 安装 PCI-e/PCI 卡 | Installing PCI-e cards 8. 安装前置 I/O 连接器 | Installing the front I/O connectors USB 3.0 HDD LED POWER SW POWER LED –...
- Page 6 3. Where can I mount a fan? Fan mount locations Front 3x 120mm / 2x 140mm 2x 120mm/2x 140mm Rear 1x 120mm To learn more about this case visit the product page at corsair.com...
