Remark: The 6 fi gures on the adjustment ring (from 0 = closed to 5 = maximum)
do not indicate the pool chlorine level but only give an indication of the amount
of chlorine used.
Procedure for adding chlorine tablets:
1. Stop the fi ltering pump.
2. Close all the safety valves that may be located between the fi lter and the
pool.
3. Unscrew the black ring maintaining the adjustment ring.
4. Gently remove the «adjustment ring + black ring» assembly by lifting using
the grey handle on the adjustment ring. Warning, this assembly has 3 moving
parts; do not try to separate them.
5. Remove the black cylinder by lifting it. Once the cylinder has been removed
it is easy to fi ll it with chlorine tablets and/or clean it. Be careful of the water
tightness seal (it must remain in place when reassembling).
6. Proceed in the reverse order to reassemble the different parts of the
chlorinator. When refi tting the «adjustment ring + black ring», turn the assembly
until it falls into the specially designed notches. Then tighten the black ring
manually.

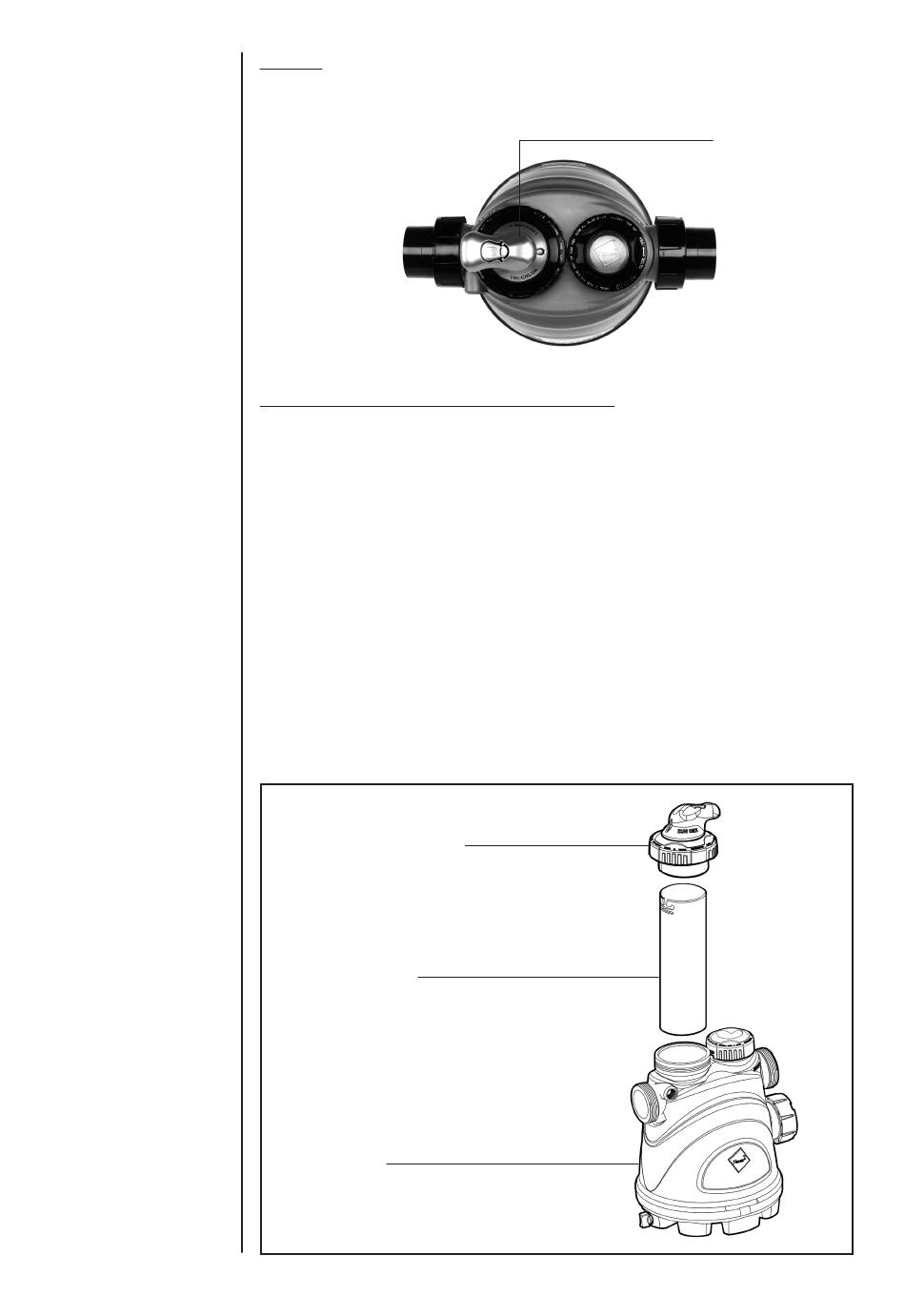

Adjustment ring + black ring
Chlorinator cylinder
Diffuser body
23
6 setting adjustment ring
