Congratulations, for your purchased of Nature Fusion, our semi-automatic water treatment system. Zodiac’s Nature Fusion is the association of a mineral purifi er and a chlorine tablet distributor (also known as a «chlorinator») which frees you from the hassle related to water treatment. -
Page 3: Description Of The Appliance

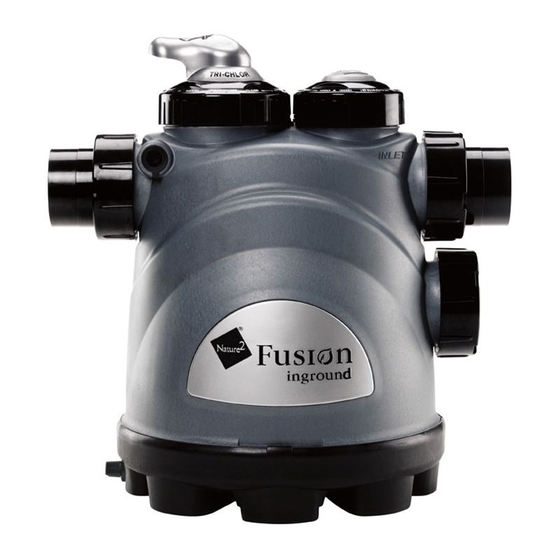

Description of the appliance Chlorine diffuser Mineral purifi er (with adjustment ring) (Nature Fusion cartridge) DN50/63 mm intake DN50/63 mm outlet Wintering Plug Diffuser body Purge screw Above-ground pool kit (2 32/38 mm adapters + 2 collars) Remark: For installations using 1½ ’’ pipes (United Kingdom), use 2 specifi c joints (supplied separately, do not use those shipped with the appliance). -
Page 4: Conditions Of Use
fi xing collars (see chapter 4 «Installation»). WARNING: CHEMICAL USE HAZARD: The Nature2 Fusion is designed to use only Trchloro-S-Triazinetrione tablets - slow dissolving type. Never mix or use with other types of chlorine or chemicals. Explosion or fi re may result. - Page 5 Nature Fusion can be used optimally and without risks in all pool structures with all types of surfaces (if the pool water = public utility network): • Liners and reinforced PVC (presence of treated felt beneath) • Painted concrete • Tiling •...
-
Page 6: Preparing To Install
Preparing to install Before starting the Nature Fusion system remove all eventual debris and algae from the pool water and clean the fi lter. Important: Only install the new Nature Fusion cartridge once the pool water is clean and balanced. Please consult the values in the water bal- ance table in chapter 2. -
Page 7: Installation
Installation The Nature Fusion system must be installed downstream from the fi ltering system and any eventual heating system (heat pump, heat exchanger, electric warmer...). • For pools fi tted with a heating system where the Nature Fusion system is to be installed downstream on the same bypass, leave a minimum distance of at least 1 metre between the two appliances. -
Page 8: Fitting The Nature
Fitting the Nature Fusion cartridge The Nature Fusion system is delivered without the mineral treatment cartridge. The cartridge must be purchased separately (cartridge model selected depending on pool volume; refer to chapter 1 «Technical Specifi cations» table). The Nature Fusion cartridge must be replaced at the beginning of each season or every 6 months in pools that are used all year round (maximum use 6 months beginning on the cartridge installation date). -
Page 9: Using Chlorine Tablets
Using chlorine tablets WARNING!!: When fi lling the chlorinator the following precautions should be taken: ➤ 1. Nature Fusion was design to exclusively use stabilised slow dissolving chlorine tablets. These are of the «Trichloro-S-Triazinetrione» type (or trichloroisocyanuric acid also called «Trichloro» or «ATCC»). Never mix these chlorine tablets with other types of chlorine or other chemicals;... - Page 10 Remark: The 6 fi gures on the adjustment ring (from 0 = closed to 5 = maximum) do not indicate the pool chlorine level but only give an indication of the amount of chlorine used. 6 setting adjustment ring Procedure for adding chlorine tablets: 1.
-
Page 11: Commissioning
Commissioning For Nature Fusion to operate correctly it is essential to carry out a start-up treatment when a Nature Fusion cartridge is installed. Start-up procedure: 1. To activate the Nature Fusion cartridge optimally, proceed with a light shock- chlorination after the cartridge has been fi tted. Only add shock chlorine in the skimmer(s) to obtain a free chlorine level between 3 and 4 ppm with 24hr continuous fi... - Page 12 2. Remove the «adjustment ring + black ring» from the chlorinator after having unscrewed the black ring holding it in place. Next unscrew the purge screw located on the side at the base of the appliance in order to empty the Nature Fusion diffuser reservoir.
-
Page 13: Troubleshooting
Troubleshooting This table is to assist you in case of any problems. Consult your Nature reseller for further information on water balance. Problem Symptom Solution 1. Clean the fi lter and eventually replace the High pressure on the fi lter ma- fi... -
Page 14: Guarantee
French courts will have exclusive jurisdiction. Register your product on our website: - You will be the fi rst to be informed of new Zodiac products and special offers. - You can help us to constantly improve our product quality. www.zodiac-poolcare.com For any warranty issue, please contact your local dealer. - Page 15 Your retailer/ votre revendeur Pour plus de renseignements, merci de contacter votre revendeur For further information please contact your retailer Para cualquier información adicional contactar con su detallista Hinweise und Auskünfte erhalten Sie bei Ihrem Händler Per qualsiasi informazione supplementare, mettetevi in contatto con il vostro rivenditore al dettaglio Contacte o seu revendador para obter informaçoes mais detalhadas...
