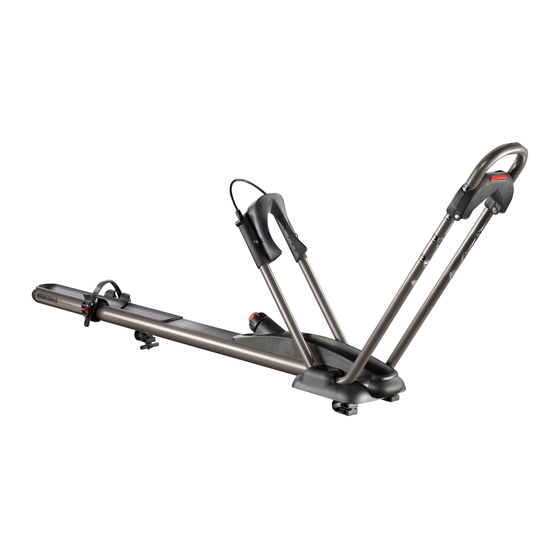

Yakima HighRoller User Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Wheel Grip
Wheel Strap
1x
rear Wheel tray
Wheeltray Bolt
(longer)
1x
Snap around
3x
hex Key
1x
H
igH
small hoop
adjuster KnoB
red Button
BaSeplate CoVer
2x
hex BoltS 2x
(optional mightymount attachments)
R
olleR
CroSSBar SpreadS
• Up to 2 HighRollers: 16" (41cm)
minimum crossbar spread
• More than 2 HighRollers: 18" (46cm)
minimum crossbar spread
• Maximum crossbar spread is 46"
(117cm)
BiG hoop
Baseplate
thumBWheel 2x
Snap around (3x)
BaSeplate BoltS
(Shorter)
2x

Advertisement

loading
Need help?

Need help?

Do you have a question about the HighRoller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yakima HighRoller

Summary of Contents for Yakima HighRoller

  • Page 1 olleR CroSSBar SpreadS • Up to 2 HighRollers: 16” (41cm) Wheel Grip minimum crossbar spread • More than 2 HighRollers: 18” (46cm) minimum crossbar spread • Maximum crossbar spread is 46” (117cm) Wheel Strap BiG hoop small hoop adjuster KnoB rear Wheel tray thumBWheel 2x red Button...
  • Page 2 (front of bike mount). Refer to this diagram in place of your MightyMount instructions. MightyMounts purchased separately (refer to the YAKIMA Fit List for correct MightyMounts for your vehicle). Follow the Universal MightyMount unIVerSal instructions and refer to this instruction for...
  • Page 3 Lift both hoops until they stop. Remove baseplate cover. Press sides and lift to expose bolt holes. Position mount anywhere if you position the front mount straddling a tower, the on crossbars. wheel tray can attach to either side of the rear tower. MightyMount users: insert short •...
  • Page 4 Replace baseplate covers. tighten thumb wheels. (they should snap into place). attaCh Wheel Strap • Insert one end of strap into slot on far side of wheeltray. • Leave other end free. move big hoop forward. Find the tire size of Open wheel grip handle.
  • Page 5 ADJUsTMeNT KNOB. Smaller hoop should compress against tire. if wheel moves, tighten more. Center tIre In WheelgrIp. Pull the strap through wheel Lock your highRoller spokes. between towers on See your lock crossbar when not in use. instructions for installing lock. Loop...

  • Page 6: Before Driving Away

    Support Small hoop. UNLOAD BIKE: Front Wheel Press red button. to release rear strap, Loosen push tab in buckle. adjustment knob Small hoop until small hoop will lower. is loosened. Support BIKe. Roll back and lift bike out. Lay hoop flat. Lower both hoops when not in use.

  • Page 7: Weight Limits

    WeIGhT lIMITs Follow the YAKIMA Fit List or your owner’s manual for your rack’s weight limit. Do not exceed the factory weight limit of your vehicle’s racks. Maximum rack’s weight is 165 lbs. (75 kg) unless otherwise noted. BIKe WeIGhT lIMIT: MaxIMuM bIKe WeIghT Is 50 Lbs.

This manual is also suitable for:

8002091
