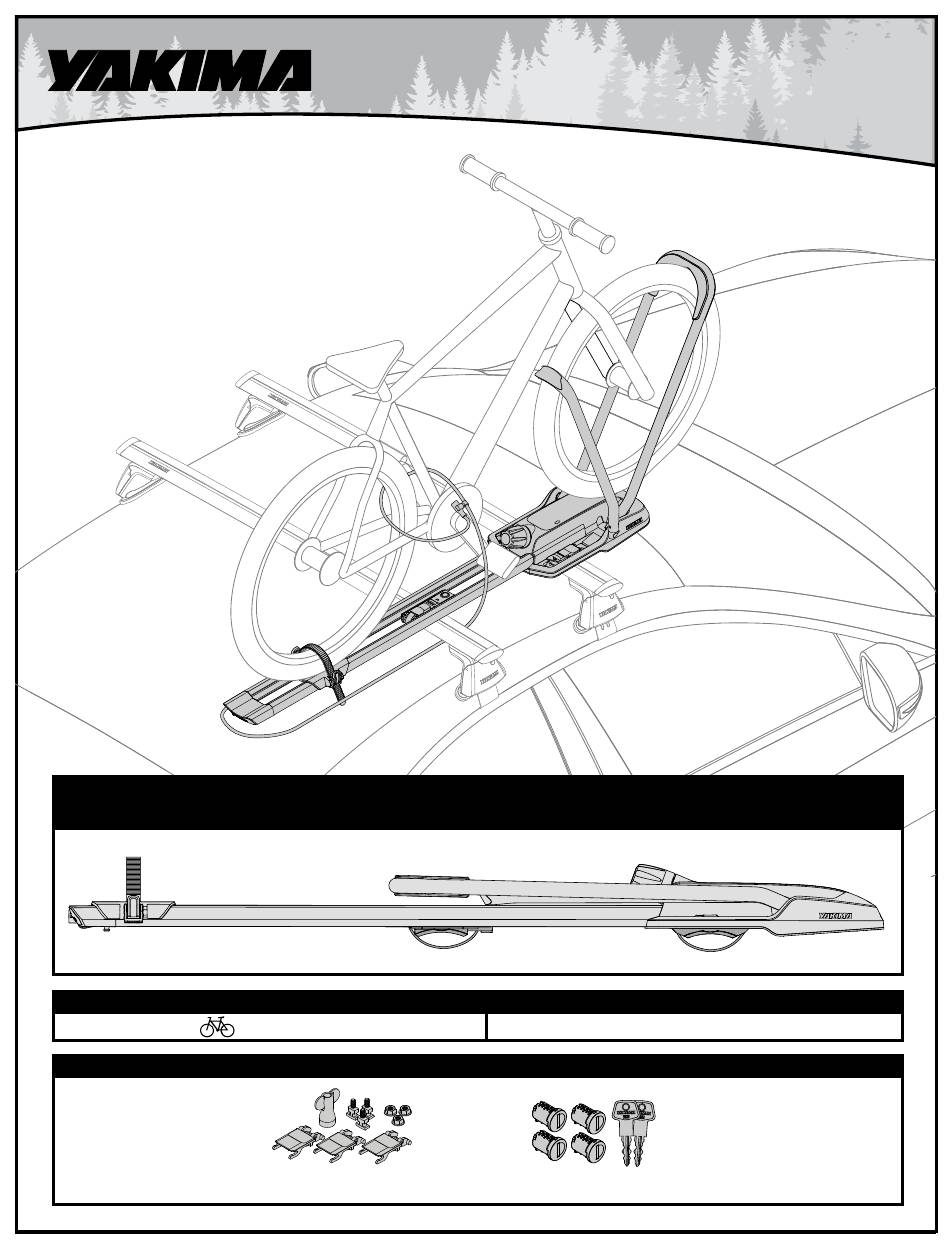

- Page 1 HighRoad CONTENTS HIGHROAD (1X) Max. Bike Weight Crossbar Spread 18”(46 cm) min. - 35”(90 cm) max 45lbs / 20kg Available Accessories SmarT-Slot Kit 1 4-Pack SKS Locks #8002122 #8007204...
- Page 2 INSTALLATION Place HighRoad on crossbars. Align the front mount with your front crossbar. Slide the rear mount to align with your rear crossbar. REAR MOUNT FRONT MOUNT Slide wheeltray all the way back to Slide rear cover back. gain access to top of rear mount.
- Page 3 Lift HighRoad to route the rear strap under the rear crossbar. With the strap in place under the rear crossbar, hook the tabs back into the detents. Pull the lever up through the frame. Close the lever and adjust strap tension.
- Page 4 Raise the big hoop. Close the slider. Raise the small hoop. Slide front covers back. Open levers and Lift levers up and back to clear detents. Drop levers through frame. loosen knob.
- Page 5 Lift HighRoad to route the front strap under the front crossbar. With the straps in place under the front crossbar, hook the tabs Pull the lever up through the frame. Close the front levers and adjust strap tension. • Strap tension can be adjusted by turning the thumbwheel in both directions.
- Page 6 Close the front covers. Lower both hoops. Test install. The HighRoad should not slide or move on crossbars. Tighten straps if necessary. LOADING Choose the appropriate wheelstrap for your bike. Use the longer strap for bikes with taller rims, or wider tires. Use the shorter wheelstrap for shorter rims, and thinner tires.
- Page 7 Load bike. Carefully place your bike onto the HighRoad. Roll into place and raise hoop. To avoid contact with your frame, lift the small hoop with one hand, and roll the front wheel toward the big hoop.
- Page 8 • Adjust so strap clears spokes and valve stem. • Thread strap through spokes and insert it into the slot in the wheeltray. • Pull hard to tighten. LOCk THE BIkE MOUNT. If you have purchased lock cores, install them according to your lock core instructions. Yakima #8007204...
- Page 9 “Click!” Tighten the strap if needed. TAILWHIP LOCkING CABLE Pull out the TailWhip locking cable from the rear of the HighRoad. Pass the OPTIONAL cable through the frame and wheels of FACULTATIF your bike. Attach the lock to the post...
- Page 10 1. Open the front covers. Disengage the front levers, loosen the thumbwheel as necessary. 2. Open the rear cover. Disengage the rear lever, loosen the thumbwheel as necessary. 3. Lift the HighRoad off of the crossbars and store it in a safe place. Not more than 165 lbs.
- Page 11 Record Height Here. XX m...
- Page 12 EN IMPORTANT WARNINGS Rack Installation Inadequately secured loads and incorrectly mounted roof racks and accessory racks can come loose during travel and cause serious accidents! Therefore, installation, handling and use must be carried out in accordance with product and vehicle instructions. In addition to these instructions, review the mounting instructions for the roof rack and the operating instructions of the vehicle.
