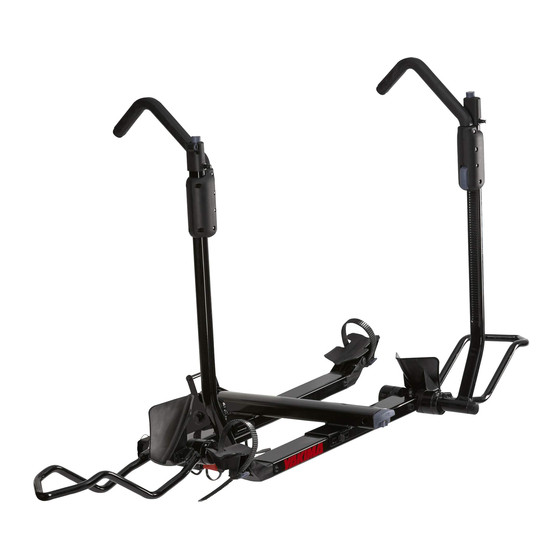

Yakima HoldUp Manual

• Install This product on 2" OR1%" hitch
receivers ONLY.
• Do not use with hitch-extenders or with
1
%" hitch adapters.
• Do not install on trailers. campers. or RVs.
• Do not install if spare tire causes
interference with bikes. or folded carrier.
• Not for use on bikes with front fenders.
In addition. some undersized receivers may
not accept this product. If you do not know the
capabilities of your hitch receiver. consult an
automotive professional.

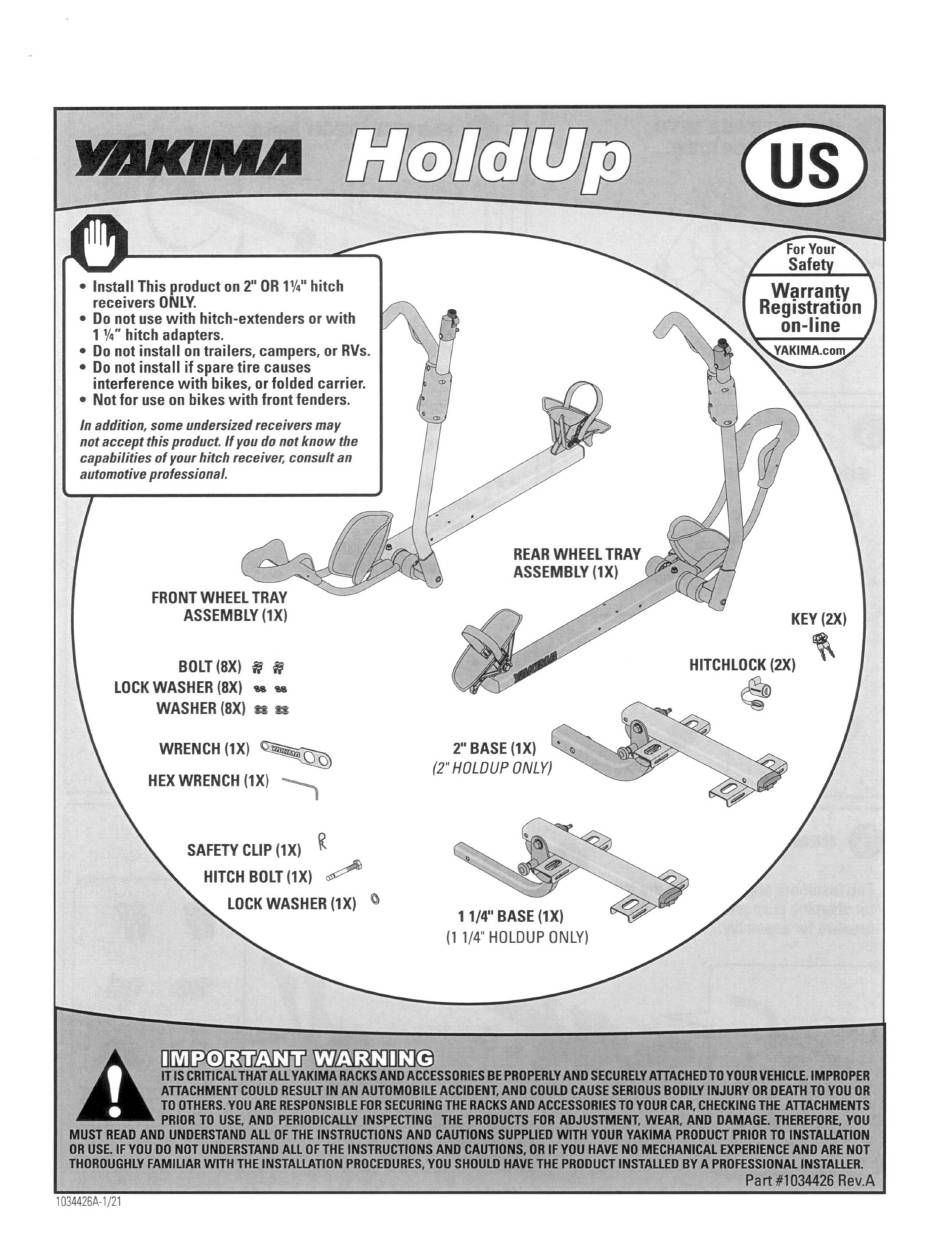

REARWHEEL TRAY
ASSEMBLY (lX)
WRENCH (lX) ~
HEXWRENCH (lX) ~
2" BASE (lX)
(2" HOLDUP ONLY)
HITCHLOCK(2X)
~
KEY(2X)
~
BOLT(8X)
fI fI
LOCKWASHER (8X) __
WASHER (8X)
u u
SAFETYCLIP (lX) ~
HITCH BOLT(lX) ~
LOCKWASHER (lX) \)
11/4" BASE (lX)
(1 1/4" HOLDUP ONLY)
D~ WL0iillJD~
IT IS CRITICAL THAT AU YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER
ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT. AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR
TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR. CHECKING THE ATTACHMENTS
PRIOR TO USE. AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT. WEAR. AND DAMAGE. THEREFORE. YOU
MUST READ AND UNDERSTAND AU OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION
OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS. OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT
THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES. YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTAUER.
Part #1034426 Rev.A
