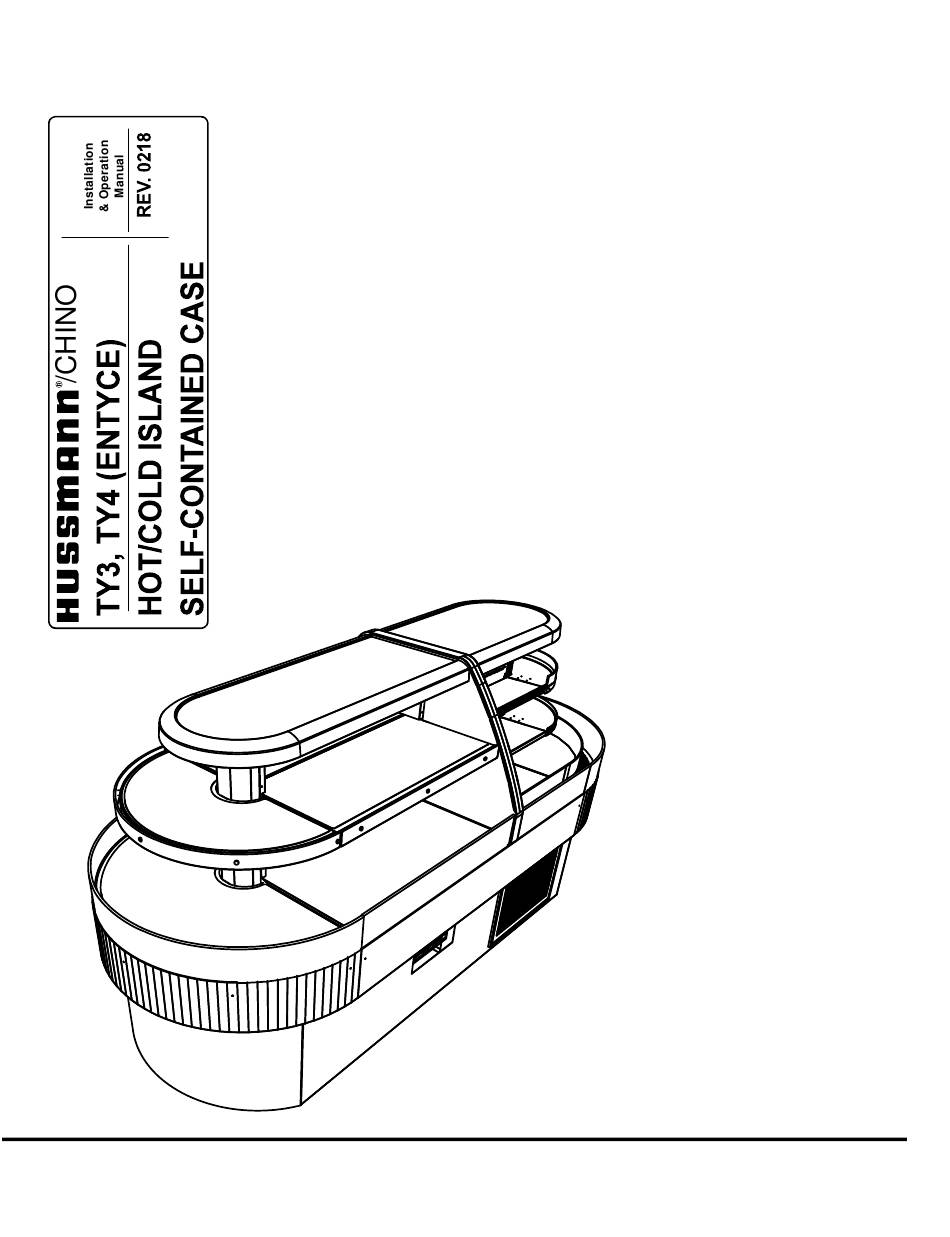

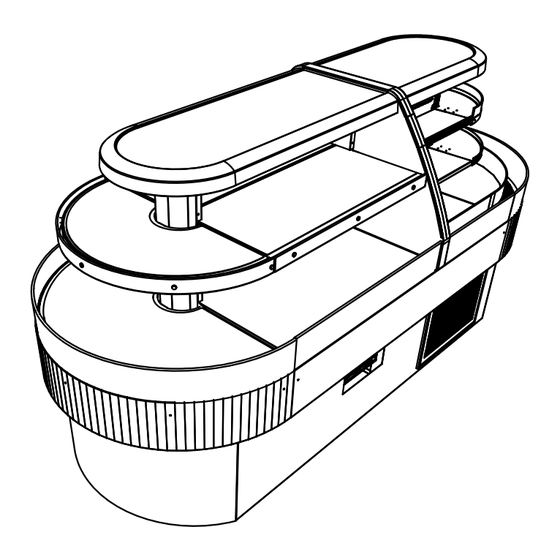

- Page 1 TY3, TY4 (ENTYCE) HOT/COLD ISLAND SELF-CONTAINED CASE INSTALLATION & OPERATION GUIDE...
-
Page 2: Table Of Contents
Table of Contents Warning General Information Entyce Hot Cold Lifting Instructions Close-Off Removal TY3 4X4E-S Cold Section Installation Electrical Wiring Diagram Index Wiring Diagram Controller Programmed Parameters TY Cold Maintenance Service Tips Controller Manual TY 4X5E-H Hot Section Start up Standard Hot Case Settings Operation Electrical... -
Page 3: Warning
Warning... -
Page 4: General Information
Shortages: Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, no fy Hussmann Chino. If such a shortage involves the carrier, no fy the carrier immediately, and request an inspec on. Hussmann Chino will acknowledge shortages within ten days from receipt of equipment. -
Page 5: Entyce Hot Cold Lifting Instructions
Entyce Hot Cold Lifting Instructions... - Page 6 Installation J-Bar lift points typical for Cold and Hot section of case.
-
Page 7: Close-Off Removal
Close-Off Removal Cold Case Condensate Access Vent. Close-off removal for Entyce case Typical Self Contained case has 2 vented panels on Step 1 each side of the case for proper circulation Slide bottom of close-off in upward motion to through condensing unit area. remove from tabs. -
Page 8: Ty3 4X4E-S Cold Section
TY3 4X4E-S Cold Section... - Page 9 See Controller Manual for details For prompt service when contac ng the factory regarding problems, be sure to have the Case Model and Serial Number handy. This informa on is on a plate located on itself. www.hussmann.com (909) 590-4910 (800) 395-9229...
-
Page 10: Installation
Installation Store Conditions Do Not Install the Vented Panels of the self-contained model against a wall or other storage fi xture. Located in the lower front and rear of the self-contained models are vented panels. These panels allow air circulation to the condensing unit. -
Page 11: Electrical
Electrical Field Wiring and Serial Plate Amperage Field Wiring must be sized for component amperes printed on the serial plate. Actual ampere draw may be less than specifi ed. Field wiring from the refrigeration control panel to the merchandisers is required for refrigeration thermostats. -
Page 12: Wiring Diagram
Wiring Diagram... -
Page 14: Controller Programmed Parameters
Controller Programmed Parameters... -
Page 16: Ty Cold Maintenance
TY Cold Maintenance Case Cleaning To insure long life, proper sanitation and minimum maintenance costs, the refrigerator should be thoroughly cleaned frequently. SHUT OFF FAN BEFORE CLEANING: It can be unplugged within the case, or shut off entire case at the source. The interior bottom may be wiped with any Service domestic soap or detergent based cleaners. - Page 17 TY Cold Maintenance Stainless Steel Cleaning and Care There are three basic things, which can break down your stainless steel’s passivity layer and allow corrosion. Don’t Despair! Here are a few steps that can help prevent stainless steel rust.
-
Page 18: Service Tips
CAUTION: DO NOT TEAR THE HONEYCOMB to maximize life of the product. Hussmann cases were not 1) Remove the honeycomb assembly as follows : designed to “heat up” or “cool down” product - but rather to Insert a small Phillips screwdriver behind the rear edge of the maintain an item’s proper temperature for maximum shelf... -
Page 43: Ty 4X5E-H Hot Section
TY 4X5E-H Hot Section... -
Page 44: Start Up
Start up Startup Instructions Adjustment NOTES: *Controller temperature indicates SHELF- temperature only (not Internal Product Temperature). Shelves are pre-set to 185°F, suitable for many foods in approved containers. Do not overheat as containers may melt. Holding Temperature Guide Refer to Instruction Manual for detailed operating instructions. - Page 45 Start up Food temperatures can be accurately determined Cal Rod Controls only through the use of food thermometers! Each hot unit has an individual heater with a separate control. These are thermostatically controlled with an Important Food Handling Tips: indicator light showing when the heater has cycled on and is heating.
-
Page 46: Standard Hot Case Settings
Standard Hot Case Settings When Heater (Cal Rods) are installed Straight Section Components Minimum Controller Setting Heater Rod Rated 240 Vac, 3.4 Watts/cm² Minimum. Provided above each warming Surface. Buffet Warmer on Deck 208 Vac, 780 Watts Minimum. 200°F Buffet Warmer on Shelf 208 Vac, 590 Watts Minimum. -
Page 47: Operation
Operation Instruction sheet Controller temperature indicates *SHELF-temperature only (not product temperature) -
Page 48: Electrical
Electrical IMPORTANT! IT IS IMPERATIVE THAT CASES BE CASE MUST BE GROUNDED LEVELED FROM FRONT TO BACK AND SIDE TO SIDE PRIOR TO JOINING. A LEVEL CASE IS NECESSARY TO INSURE PROPER OPERATION. ALL CASES WERE LEVELED AND JOINED PRIOR TO SHIPMENT, TO INSURE THE CLOSEST POSSIBLE FIT WHEN CASES ARE JOINED IN THE FIELD. -
Page 49: Wiring Diagram
Wiring Diagram... -
Page 53: Cleaning And Maintenance
Cleaning and Maintenance FOOD TEMPERATURES CAN BE TO REMOVE “BAKED-ON” SPLATTER, GREASE OR ACCURATELY DETERMINED ONLY LIGHT DISCOLORATION TO STAINLESS STEEL. THROUGH THE USE OF FOOD CLEANSING AGENT APPLICATION THERMOMETERS! Grade F Italian Pumice..Scour or rub with damp cloth Important Operation Tips: Liquid NuSteel.....Scour with small amount on dry cloth Paste NuSteel... - Page 54 Cleaning and Maintenance Don’t Despair! Here are a few steps that can help prevent stainless steel rust.
- Page 55 Cleaning and Maintenance Replacing Overhead Heat Lamps Overhead Halogen and Merco lamps are designed to last through many hours of use. Should there be a need to replace one, it is as simple as replacing a standard fl uorescent light bulb.
-
Page 56: Ty Hot Maintenance
TY Hot Maintenance General The Hatco Glo-Ray Heated Shelf Units are designed for maximum durability and performance with minimum maintenance. Cleaning To preserve the fi nish of the Glo-Ray Heated Shelf, it is recommended that the surfaces stains may be removed with a non-abrasive cleaner. - Page 57 Additional copies of this publication may be obtained by contacting: They can be found on a small metal plate on the unit. Hussmann® Chino Please note them below for future reference. 13770 Ramona Avenue • Chino, California 91710...
