Siemens TSM-1 Installation Instructions

Installation Instructions

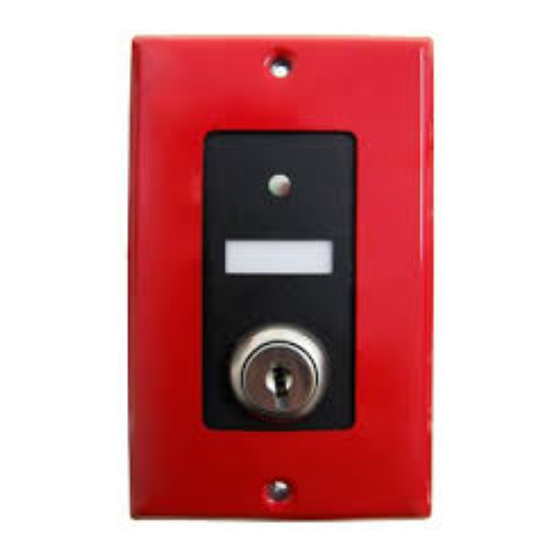

MODEL TSM-1
Test Switch Module
INTRODUCTION
The Model TSM-1 Test Switch Module from Siemens
Building Technoliges, Inc. is a key activated momen-
tary switch for use with intelligent duct detectors on
the MXL System. It is used in conjunction with a TRI,
whose CSG-M usage is set to TEST. When the TRI
senses the TSM-1 switch closure, it will cause its
associated intelligent duct detector to go into alarm.
This alarm condition will cause all logic associated
with the duct detector to activate. The TSM-1 is
mounted on a switch plate and can be installed in a
single gang box.
Remove all power from the system until the
installation is complete and ready for testing.
All work of any kind shall be performed to meet
the requirements of all local and national codes
and/or standards required by the authority hav-
ing jurisdiction.
WIRING INSTRUCTIONS
Refer to the wiring diagrams in Figures 2 and 3
and wire the addressable interface module
according to the appropriate operation for your
system.
Note: The recommended wire size is as follows:
18 AWG minimum
14 AWG maximum
Siemens Building Technologies, Inc.
8 Fernwood Road
Florham Park, New Jersey 07932
P/N 315-098285-8
POWER LIMITED WIRING FOR THE TSM-1
TEST SWITCH MODULE
In compliance with NFPA 70—National Electrical
Code, all power limited fire protective signaling
conductors must be separated by a minimum of ¼
inch from all of the following items located within an
outlet box:
• Electric light
• Power
• Class 1 or non-power limited fire protective
signaling conductors
INSTALLATION
1. Remove the module from its protective bag.
Mount the TSM-1 in a user supplied standard
single gang mounting box (1½ in deep is
recommended). Refer to Figure 1.
2. Terminate all field wires to the TSM-1 as required
for your application. Refer to the connection
diagrams shown in Figures 2 and 3.
3. Attach the switch frame to the box.
4. Check that jumper JP1 is NOT installed. (JP1 is
not used in this application.)
5. Attach the keyswitch connector to its mating plug
on the bottom of the circuit board.
6. Insert the face plate and attach the cover plate
with the two screws provided.
Note: A yellow and green LED are included in the
kit. Do not use them in this application.
Siemens Building Technologies, Ltd.
2185 Derry Road West
Mississauga, Ontario L5N 7A6 Canada
Fire Safety
