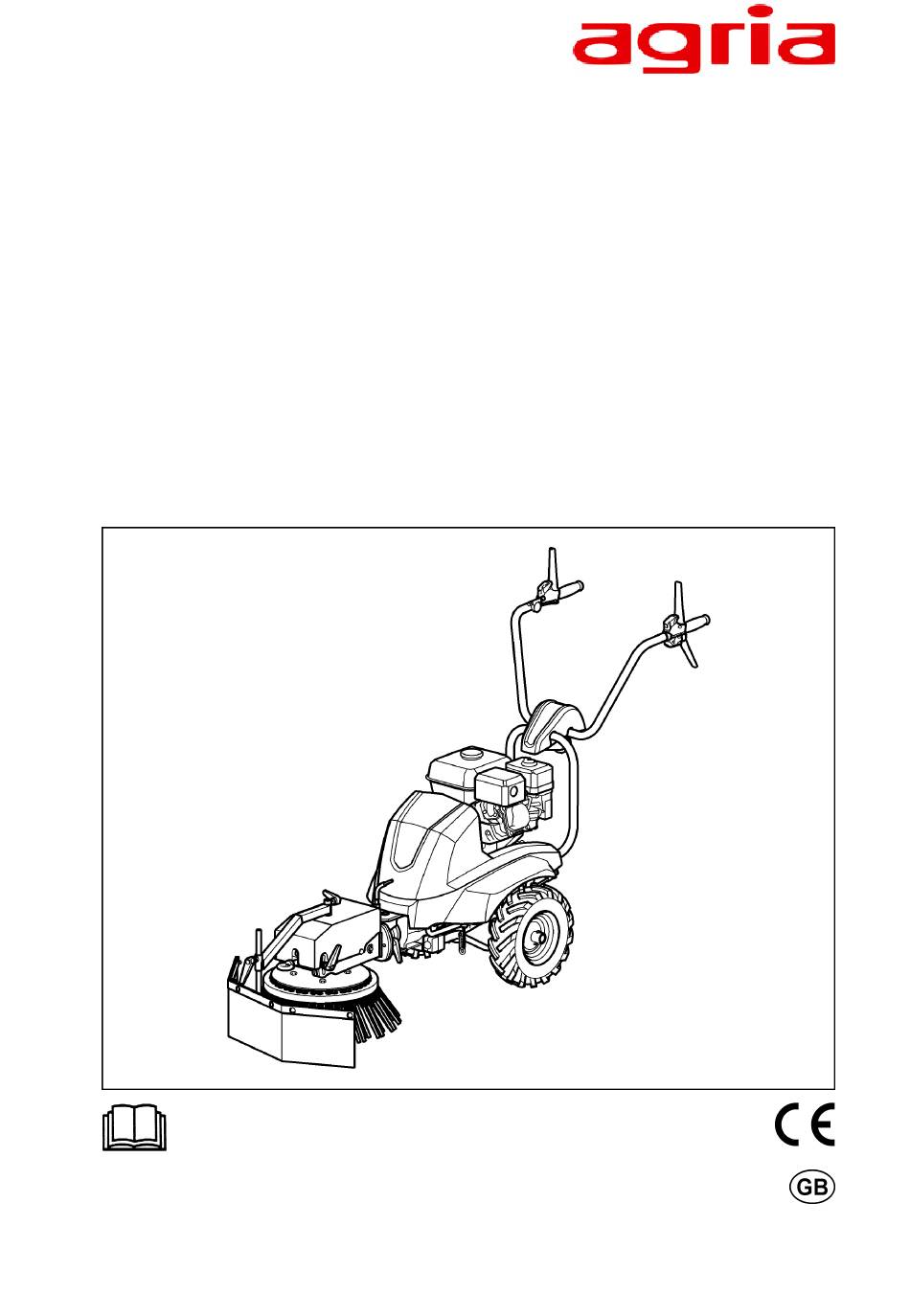

- Page 1 Translation of the original Operating In- structions Weed brush agria 8100 8100 211, 8100 214 Before commissioning please read the operating in- structions and note the safety and warning information! Operating Instructions No. 998 465 06.18...
-
Page 2: Nameplate
Petrol engine: For engine no. see page 54, fig. B/6 Please provide this information for each spare parts order, to prevent errors in delivery. Only use genuine Agria spare parts! The technical data, illustrations and dimensions provided in these operating instructions are non-binding. No claims may be derived from them. -
Page 3: Symbols
Clutch particularly with a high- pressure cleaner) Annually Oil lubrication point See separate engine op- erating instructions Fuel - agria-Service - = contact your agria service centre Brush swivelling Brush drive Wheel drive Wheel drive ON Weed brush agria 8100... -
Page 4: Designation Of Parts Fig. A
Designation of parts Fig. A agria 8100... - Page 5 Clamping lever for front tilting of weed brush Weed brush Clamping lever for weed brush inclination Brush drive clutch Drive sprocket Lynch pin Transmission Rocker for forward / reverse Nameplate Lever for steering bar height adjustment Steering bar Weed brush agria 8100...
-
Page 6: Table Of Contents
Before starting the engine ................25 Starting the engine ..................26 Stopping the engine..................27 Working ...................... 27 Working on slopes ..................29 Safety instructions for handling ..............30 5 Maintenance and Repair ............. 31 Engine ......................32 Drive ......................35 Weed brush agria 8100... - Page 7 Machine ...................... 47 7 Decommissioning / Disposal ............48 Paints, Wear parts................49 Inspection and Maintenance Overview........... 50 Lubrication plan ..................52 Designation of parts Fig. B .............. 54 Petrol engine ....................54 Declaration of Conformity ..............55 Weed brush agria 8100...
-
Page 8: Safety Instructions
When using the machine on public roads – and when being transported – the national road traffic regulations of the Weed brush agria 8100... - Page 9 ...), so that the operator Driving behaviour, steering – and possi- does not slip or fall. bly – braking capability and tipping be- haviour are influenced by attached or suspended devices and loads. Therefore Weed brush agria 8100...
- Page 10 (such as spark plug connector. steering bar, tractor hitches, etc.)! Keep the machine and attachments clean, to avoid the risk of fire. Weed brush agria 8100...
- Page 11 Only use genuine Agria spare parts. Store anti-corrosion agents and stabi- lizer fluids out of the reach of children. If Carry out a functional and safety test sickness and vomiting occur, consult a after completing the work.
- Page 12 1 Safety Instructions of the ignition system as long as the Electrical system engine is running. Persons with cardiac pacemakers are not allowed to touch the energized parts Weed brush agria 8100...
-
Page 13: Description Of The Warning, Prohibition And Mandatory Signs
Never run the engine in a closed room. Handle hot engine components with caution! Refuel only when the the engine switched off and cooled down Wear sturdy footwear. Wear protective gloves. When working with the machine wear individual hearing pro- tection. Weed brush agria 8100... -
Page 14: Technical Data
= ….. dB to EN ISO 11201 Sound-power level ............L = ….. dB to EN ISO 3744 Vibrational acceleration value: At the handlebar handle ........ a = ….. m/s² to directive 2002/44/EC Weight: ......................98 kg Weed brush agria 8100... -
Page 15: Petrol Engine
Capacity of the fuel tank: .................. 3.1 l Air filter: ..................Paper filter element with foam prefilter Engine oil: ............... Filling volume approx. 0.6 l Multigrade oil SAE 10W-30, API-SE, SF or higher Slope capability: ................... < 20° (37 %) Weed brush agria 8100... -
Page 16: Devices And Operating Elements
3 Devices and Operating Elements 3 Devices and Operating Elements The Weed brush agria 8100 is suitable The implements released in the Agria for uprooting and depositing weed sales list are available. growth on pavement, concrete and/or asphalt surfaces so that weeds can be collected in a further operation if neces- sary. -
Page 17: Speed Regulating Lever
Release the lever in a dangerous situation. It swings automatically to the "STOP" position! Engine stop switch The electric engine stop switch (B/14) switches the ignition system ON/OFF. "I" = operating position "O" = engine stop position Weed brush agria 8100... -
Page 18: Clutch
The direction of the arrow on the rocker (A/18) corresponds to the direction of travel. Press the rocker switch left or right forwards. The neutral position 0 is between forward and reverse. Weed brush agria 8100... -
Page 19: Steering Bar
Driving wheels The drive wheels are secured to the wheel shaft with lynch pins (A/16) which makes it possible to attach and remove the wheels. Weed brush agria 8100... -
Page 20: Adjusting The Brush Head
Allow the brush to act on the ground with moderate pressure only. Too high a con- tact pressure increases the vibrations and the lateral forces on the steering bar. Do not increase the brush pressure if the working result is poor. Rather go over the same section again if necessary. Weed brush agria 8100... -
Page 21: Adjusting The Splash Guard
A locking pin holds the weed brush in the appropriate position. There are 3 positions: Middle, left and right. Weed brush agria 8100... -
Page 22: Loading Straps
Lashing to other points may result in dam- age. Check straps for damage and replace if neces- sary! Do not use sharp-edged load carrying equipment (e.g. sharp-edged hooks, eyes etc.)! Never walk or stand under suspended loads. Danger to life! Weed brush agria 8100... -
Page 23: Commissioning And Operation
Always consider for good care of the filter and clean fuel. Use only branded petrol. Caution is needed when handling fuel. Petrol is highly flammable and explosive under certain conditions! Do not refuel in closed rooms. Weed brush agria 8100... -
Page 24: Danger Zone
Dirt particles, stones etc. can be flung away when you work with the weed brush. Ensure that there are no persons or animals in the danger zone. Also ensure that vehicles, especially glass panes and other objects are not damaged. Weed brush agria 8100... -
Page 25: Before Starting The Engine
Keep a sufficient distance from hot surfaces and keep children away from the running engine. When the petrol engine is running, do not touch or remove the ignition cable or spark plug connector. Weed brush agria 8100... -
Page 26: Starting The Engine
Once the engine is running, set the engine speed to min and allow the engine to warm up for a short time. Slowly move the choke actuator back to operating position (if actuat- ed). Weed brush agria 8100... -
Page 27: Stopping The Engine
Start the engine as described at "Starting the engine". See page 25 Wear hearing protection and solid shoes. Check the function of the safety circuit (see page 39) - Start machine only when the safety circuit is working! Weed brush agria 8100... - Page 28 At the end of the mowing work or in case of plugging: Disengage both drives Switch off the engine If you have to clean the machine during work, switch off the engine and remove the spark- ing-plug connector for safety reasons. Weed brush agria 8100...
-
Page 29: Working On Slopes
- In a critical working situation on a downhill slope, raise the front of the machine so that the brush rotation has no additional influ- ence on the machine movement. - Release the safety lever to switch off the drives. Weed brush agria 8100... -
Page 30: Safety Instructions For Handling
Never approach your hands or feet to rotating parts. • Never lift or carry the machine while the engine is running. • Switch off the engine: - when you leave the machine; - before you re- fuel. Weed brush agria 8100... -
Page 31: Maintenance And Repair
Bio-lubricants bio-anti-corrosive Only use genuine Agria spare parts. agents are environmentally friendly, as Carry out a functional and safety test they are quickly biodegradable. after completing the work. -
Page 32: Engine
Remove the oil dipstick and check the oil level. • If the oil level is below the lower "min" mark, fill in engine oil (see "Technical data") up to the rim of the oil filler neck "max". Weed brush agria 8100... - Page 33 Fan grille After long periods of operation the cooling sys- tem may become clogged with dirt or plant parti- cles. Clean the fan grille (B/8) regularly to pre- vent overheating and engine damage. Check before each start-up! Weed brush agria 8100...
- Page 34 • The motor must be stopped when the motor stop switch (B/14) is in position "O". If nec- essary. check and repair electrical cables, connectors and switches. Weed brush agria 8100...
-
Page 35: Drive
Fill gearbox oil into the opening up to the inspection opening • Screw in and tighten the check screw • Close the filling hole with the filling plug • Oil filing volume and oil grade see "Tech- nical data". Weed brush agria 8100... - Page 36 • Close the filling hole with the oil dipstick. • Oil filing volume and oil grade see "Tech- nical data". Brush drive worm gear The worm gear has a permanent oil filling. Weed brush agria 8100...
- Page 37 To do this, remove the protective hood (A/6), attached with magnets. • Worn V-belts must be replaced. Only use genuine Agria special V-belts. The V-belt for the brush drive (1) is retightened as follows: • Loosen the 8 screws fixing the clutch hous- ing (2) and the locknut (3).
-
Page 38: Weed Brush And Splash Guard
Prior to each startup, check weed brush (A/12) and splash guard(A/10) for wear. Replace in time. The minimum length (L) of the brush wires from the lower edge of the brush plate is 60 mm. Weed brush agria 8100... -
Page 39: Checking / Adjusting The Clutch Play
(A/3). • If necessary, readjust the bowden cable adjusting screw (1). Brush drive • The brush drive drive must stop when you release the lever (A/2). • If necessary, readjust the bowden cable adjusting screw (1). Weed brush agria 8100... -
Page 40: General
- agria-Service - Regularly check nuts and bolts for tightness and retighten if necessary. At least annually and after cleaning: Lubricate all sliding or moving parts with bio- lubricating grease or bio-lubricating oil. Weed brush agria 8100... -
Page 41: Cleaning
Engine Only clean the engine with a cloth. Do not spray with water, as water could enter the ignition and fuel system and cause malfunctions. Weed brush agria 8100... -
Page 42: Storage
Never smoke in the working area. Stay away from naked flames and sparks. Alternatively fill the fuel tank completely and add a fuel stabilizer (Agria no. 799 09) to the fuel - Observe the operation instructions! Let the engine run for approximately 10 minutes. -
Page 43: Electrical Diagram
5 Maintenance and Repair (6) Cover the machine Cover the machine with a cloth or something similar Electrical diagram Engine flywheel Ignition coil unit Sparking plug Engine stop switch sw = black Weed brush agria 8100... -
Page 44: Labels
Set of warning signs for sweeping machine / weed brush 757 44 Traction drive 757 55 Speed 787 64 Attachment point 787 67 Engine warning image 794 26 Warning symbol for hot parts 105 952 Brush drive, swivelling the brush Weed brush agria 8100... -
Page 45: Troubleshooting And Remedies
Observe the safety instructions! Faults on the machine or on the engine that make a major intervention necessary must always be repaired by a specialist agria workshop that have the necessary tools. Incorrect intervention will only lead to damage. Petrol engine... - Page 46 Adjust carburettor - agria-Service - Petrol engine Ignition distance too large; Adjust or replace sparking plug frequently stalls sparking plug defective when idling Carburettor incorrectly adjust- Adjust carburettor - agria-Service - Air filter contaminated Clean air filter Weed brush agria 8100...
-
Page 47: Machine
Excessive vibra- Fixing screws loose Tighten fixing screws tion Brush setting not optimal Change brush setting Defective worn-out brushes Check brushes, replace if neces- sary Strong lateral pull Incorrect brush adjustment Change brush setting during operation Weed brush agria 8100... -
Page 48: Decommissioning / Disposal
Take the machine including the remain- ing technical fluids to a recycling facility for disposal. Dispose of old batteries and elec- trical/electronic parts in accordance with the applicable legal provisions. Do not dispose of as domestic waste. Weed brush agria 8100... -
Page 49: Paints, Wear Parts
8194 213 Plait brush Engine Air filter insert set Honda GP160 759 99 Sparking plug BPR6ES Tyre failure protection: 713 13 Tyre sealant gel 1 litre Spare parts lists: 997 164 Weed brush 997 145 Honda engine Weed brush agria 8100... -
Page 50: Inspection And Maintenance Overview
First engine oil change, all others Clean exhaust Clean sparking plug, adjust elec- trode gap Clean engine, check bolts and nuts Check weed brush wear; earlier if necessary! Clean air filter insert Replace air filter insert, earlier if necessary! Weed brush agria 8100... - Page 51 = before each start-up = after each cleaning, especially with a high-pressure cleaner = See separate operating instructions for engine = maintenance tasks should be performed by your agria service centre = at least annually = inspection and maintenance tasks can be performed by the operator...
-
Page 52: Lubrication Plan
Traction gearbox: Oil change (50 h); 300 h Page 35 Brush drive clutch: A; 8 h Page 36 Check oil level Brush drive clutch: (50 h); 300 h Page 36 Oil change Hand lever bearing etc. Page 40 Weed brush agria 8100... - Page 53 = before each start-up = after each cleaning, especially with a high-pressure cleaner = See separate operating instructions for engine = maintenance tasks should be performed by your agria service centre = at least annually = inspection and maintenance tasks can be performed by the operator...
-
Page 54: Designation Of Parts Fig. B
Designation of parts Fig. B Petrol engine Air filter Carburettor Fuel tank cap Fuel tank Choke lever Engine type no. Starter handle Fan grille Exhaust with contact guard Sparking plug/sparking-plug connector Oil dipstick Engine oil drain plug Fuel cock agria 8100... -
Page 55: Declaration Of Conformity
Declaration of Conformity Weed brush agria 8100... - Page 56 Agria-Werke GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel.: +49 6298 39-0 Fax: +49 6298 39-111 E-Mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
