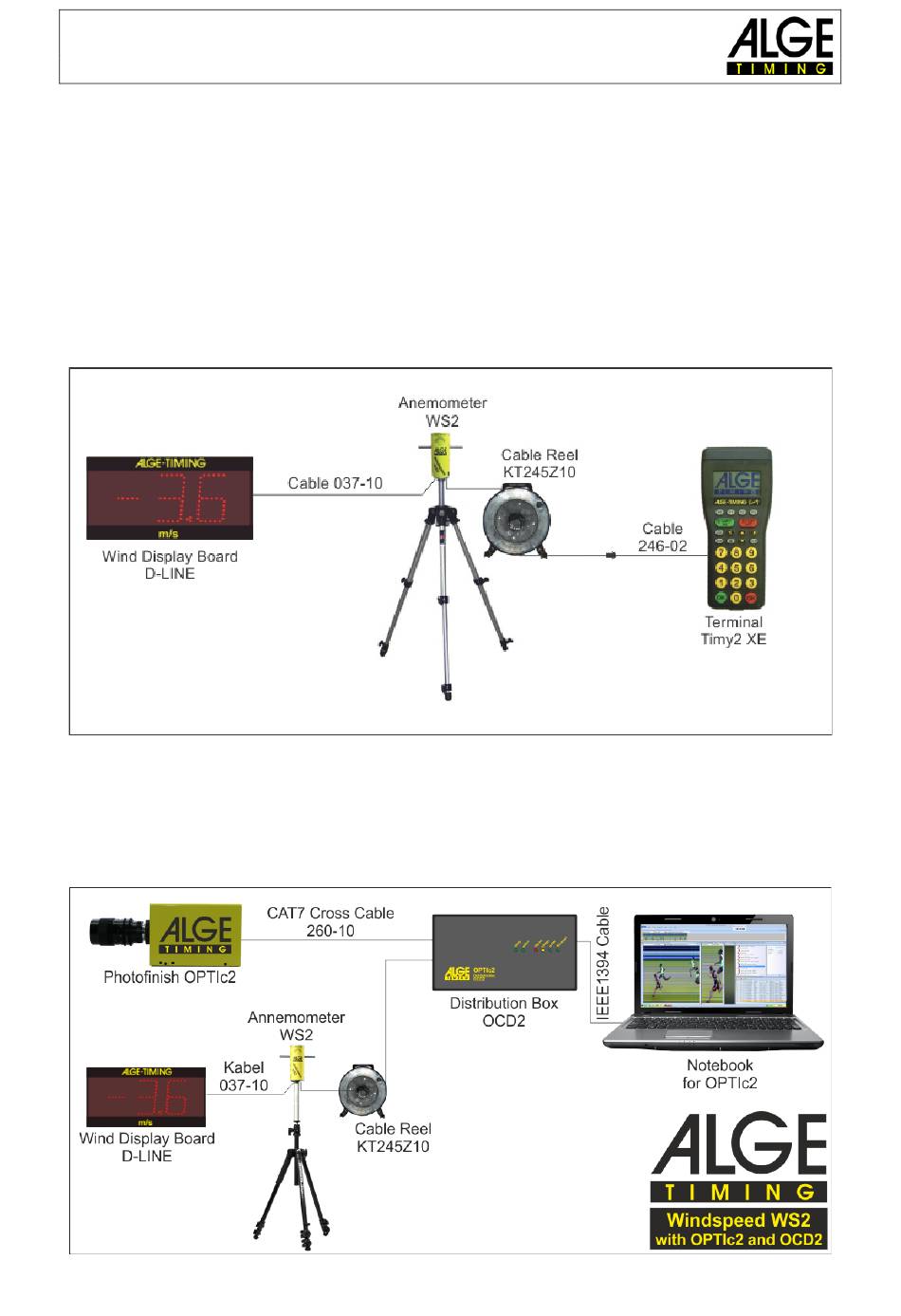

3 Set Up of the System
There are several possibilities to connect the Windspeed WS2 to a photofinish. Of course
you can use the Windspeed WS2 as well without photofinish with a Timy2 or Timy3 for long
jump and triple jump.
3.1
Anemometer with Timy
The Timy2 or Timy3 is connected by cable 246-02 and cable reel KT245K10 with the ane-
mometer WS2. This configuration you use for long jump or triple jump.
3.2
Anemometer with OPTIc2 and OCD2
The Timy2 or Timy3 is connected by cable 246-02 and cable reel KT245Z10 with the ane-
mometer WS2. The distribution box OCD2 is connected by IEEE1394 cable with the PC and
the photo finish camera OPTIc2 is connected to OCD2 e.g. by cable 260-10.
Windspeed WS2
Page 5
