iConnectivity iConnectMIDI2+ Owner's Manual page 34

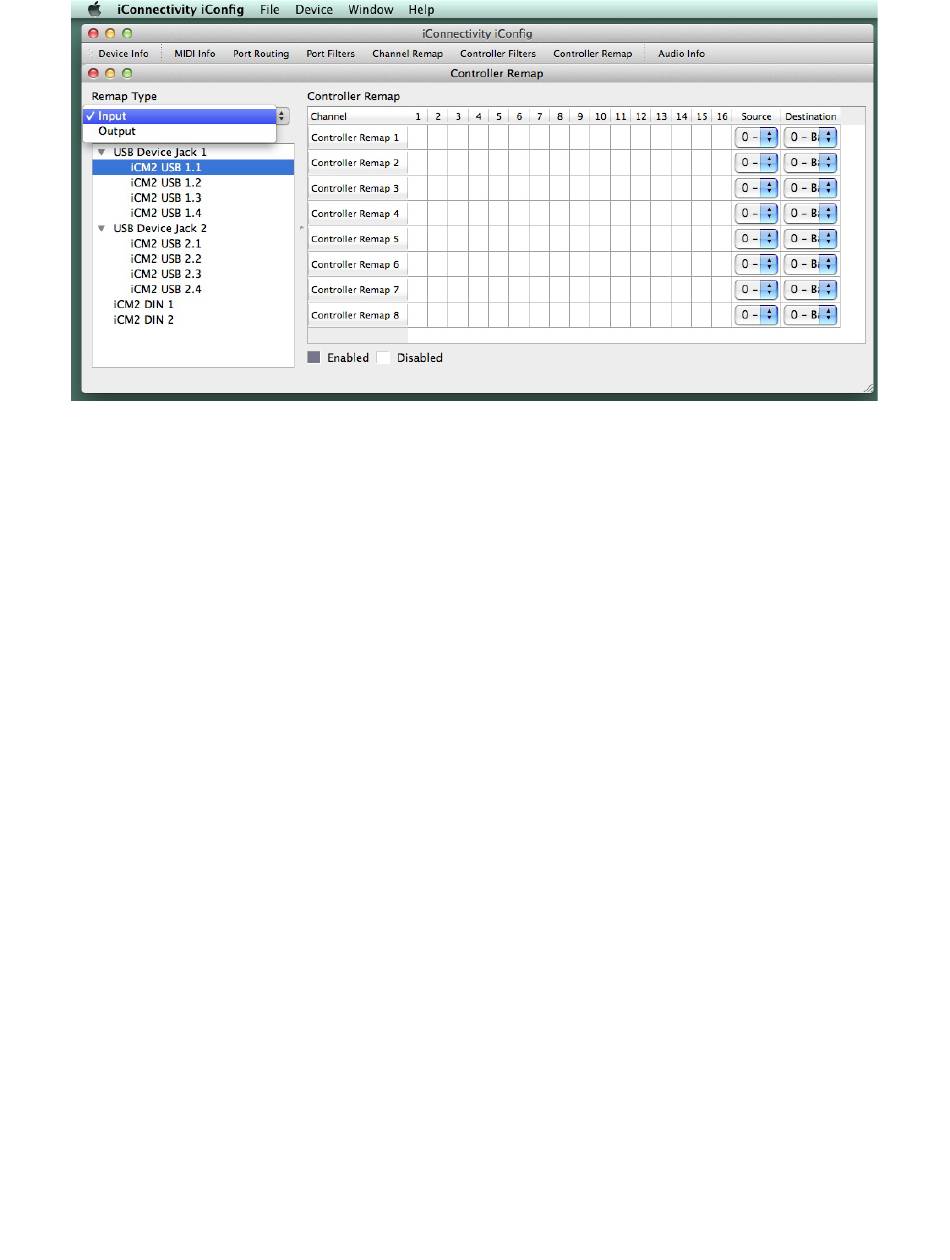

Then choose the Controller types in the Source and Destination drop-downs on each
row, and enable/disable the MIDI channels you want the conversion to apply to. The
lists of available controllers are identical to the one in the Controller Filters tab above.
Audio Info tab
The final tab is a list view with information about the internal audio ports, along with a
few adjustable parameters. With trivial exceptions, the iOS Audio Info is the same and
doesn't require separate explanation.
Please note the emphatic yellow notice at the bottom of the screen shot below: for
changes you make here to take effect, you must click the Commit and Reset button. It
is suggested that you then remove the USB cable in Device port 2 and plug it back in.
This power-cycles the interface.
Audio Information
The iConnectMIDI 2+ can route a number of channels of audio to and from each
computer device connected to its USB ports. A stereo track or instrument plug-in
running in a sequencer counts as two audio channels, and a mono track or instrument
is one channel.
34
