Windows Set-Up - iConnectivity iConnectMIDI2+ Owner's Manual

Windows set-up

1. Connect a USB A-to-B standard cable from Device port 1 or 2 to your Windows
computer. The iConnectMIDI 2+ will appear in your MIDI software as an available MIDI
interface with four 16-channel ports.

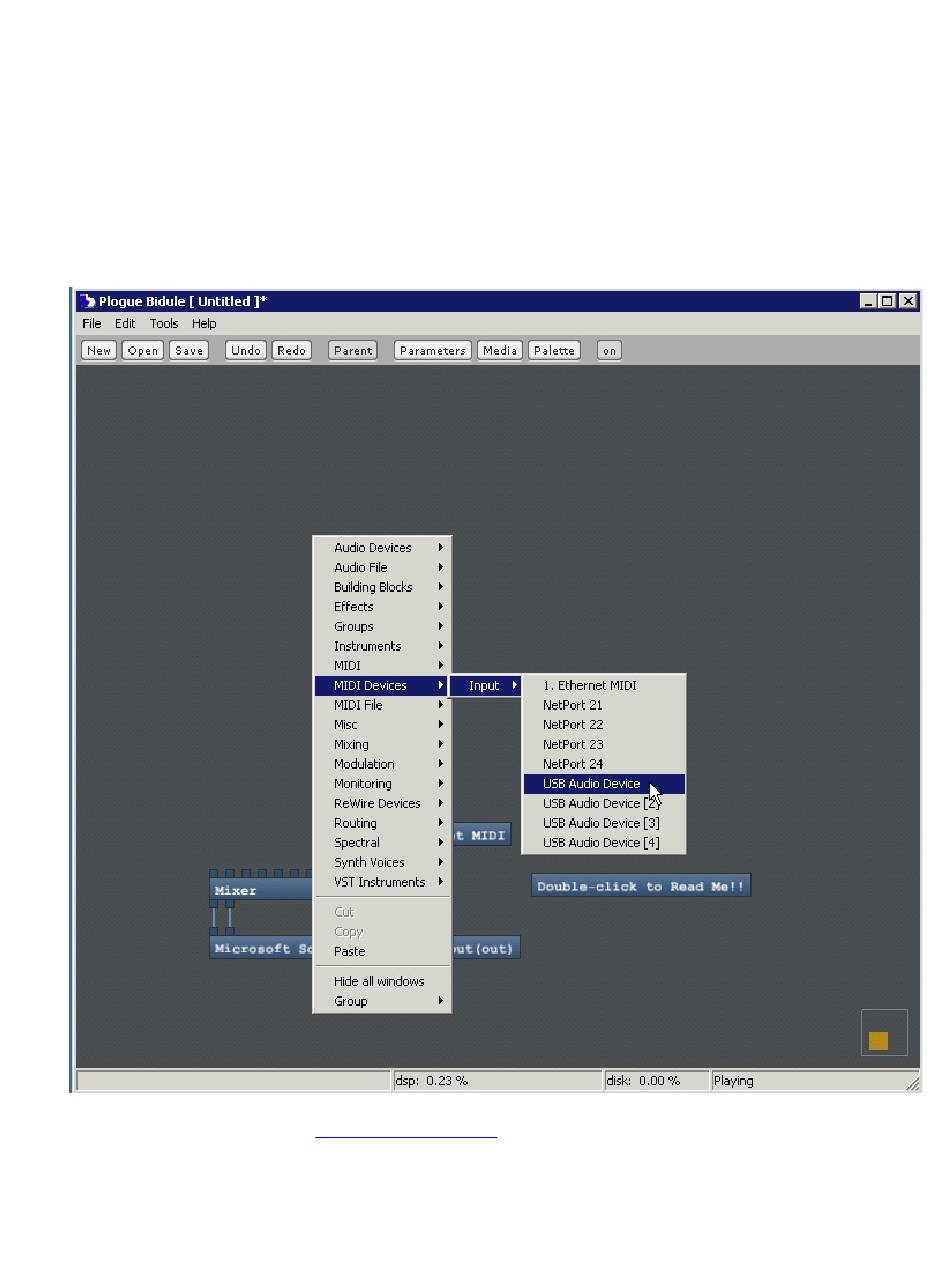

In the following dialog in the Plogue Bidule host, for example, the MIDI interface is called
"USB Audio Device":
2. For audio set-up, go to www.ASIO4all.com to download and install the free ASIO4all
driver. The iConnectMIDI 2+ will show up as an available audio interface in your audio
software, and you select it as the one to use.
17
