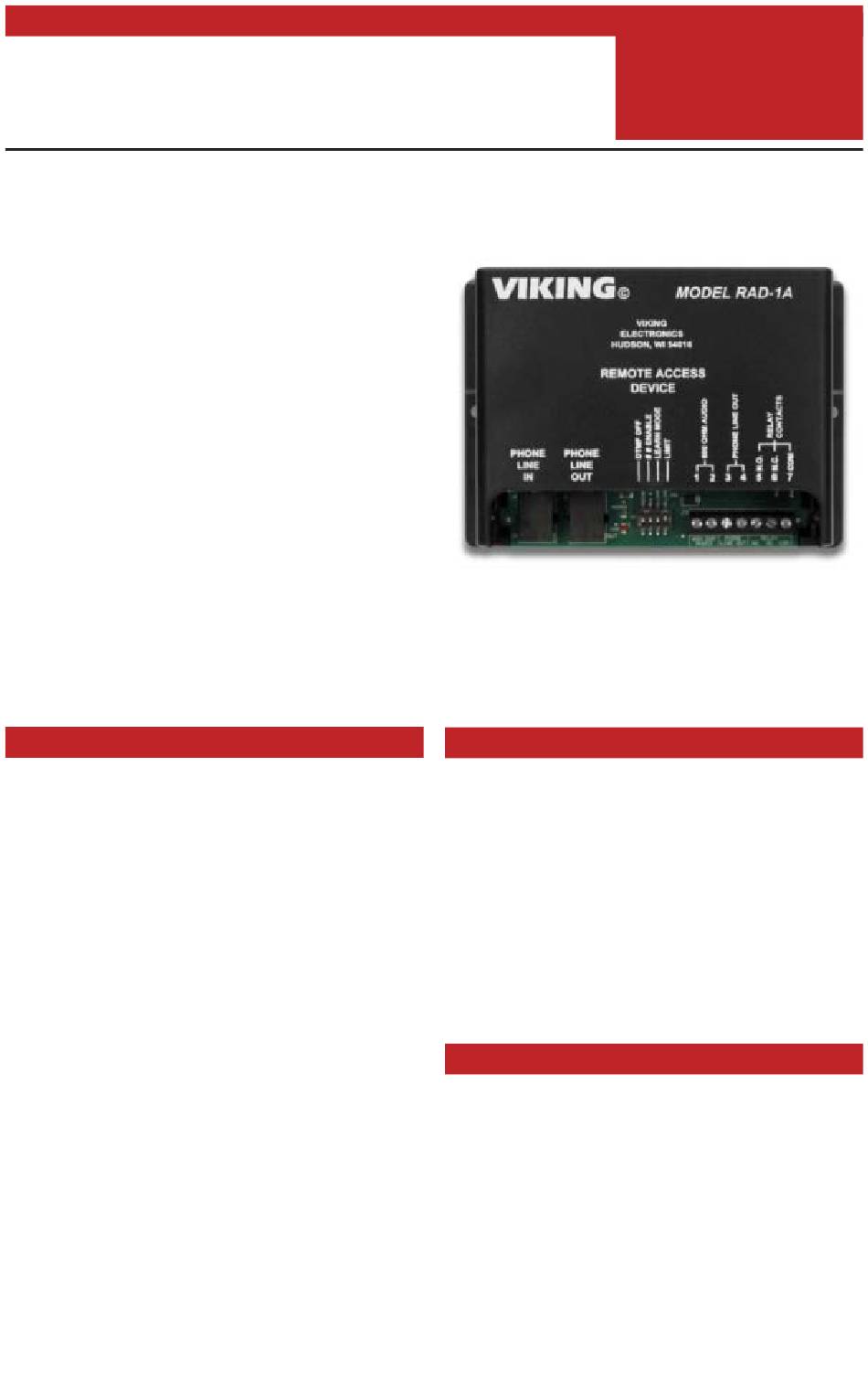

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S

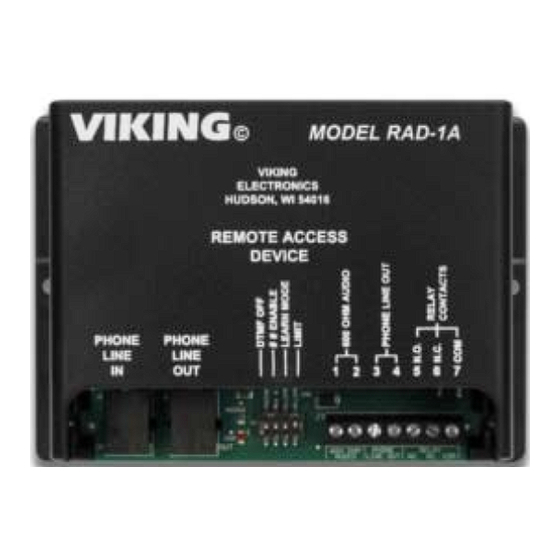

Line Powered Remote Access Device
The RAD-1A remote access device gives
authorized users remote access to one
way paging amplifiers, digital announcers
and
other
programmable access code prohibits
access by unauthorized users.
The RAD-1A answers on the first ring and
disconnects on CPC, call time out, silence
time out, busy, return to dial tone or by
dialing #7. Separate 600 ohm audio and
telephone line outputs are provided,
allowing connection to audio amplifiers,
digital announcers, or phone systems. The
user does not have to hang up and redial
the RAD-1A to access other features.
Features
• Status LED turns on when the unit is active
and brightens to indicate the presence of
audio
• Programmable 6 digit security code
• Programmable 1 - 6 digit access code
• Separate 600 ohm audio and telephone line
output
• Disconnects on CPC, call time out, silence
time out, busy, return dial tone detection or
by dialing #7
• Programmable 2 hour call timer
• Programmable 1 - 99 second silence timer
• Alternate screw terminal connection for
telephone line out
• Connects phone line to the 600 ohm
input/output of one-way paging amplifiers, digital
announcers and other audio programs
• Relay contacts available for systems that need a
dry contact closure (activate whenever the unit's
output is active)
• Non-volatile memory (no batteries required)
PRODUCT MANUAL
audio
programs.
A
IMPORTANT: This product does not eliminate
the possibility of toll fraud! To further protect
against fraudulent calls, use with a TR-1 Toll
Restrictor, for more info see DOD 705.
Remote Access To:
• Paging systems (Viking's PA-2A, PA-15, PA-30,
PA-60)
• Digital announcers
• Advertisements, radio or church programs
• Audio monitoring for security purposes
www.VikingElectronics.com
Information: 715-386-8861
Specifications
Power: Telephone Line Powered (24V DC 20mA
minimum)
Dimensions: 5.25" x 3.5" x 1.75" (133mm x
89mm x 44mm)
Shipping Weight: 0.90 lbs (0.41 kg)
Environmental: 32°F to 90°F (0°C to 32°C) with
5% to 95% non-condensing humidity
Relay Contact Ratings: .5A @ 125VAC / 1A @
30VDC
Audio Loss (through unit): 1 dB
Connections: (2) RJ11 modular jacks, 7-position
screw terminal strip
RAD-1A
Remote Access
Device
January 30, 2019
Applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAD-1A and is the answer not in the manual?

Questions and answers

Related Manuals for Viking RAD-1A

Summary of Contents for Viking RAD-1A

  • Page 1 The RAD-1A answers on the first ring and disconnects on CPC, call time out, silence time out, busy, return to dial tone or by dialing #7. Separate 600 ohm audio and...

  • Page 2: Installation And Applications

    B. Access One Way Paging Systems with Background Music Sources The RAD-1A can be used to access paging systems remotely. If the RAD-1A is to be used with a paging system that requires Touch Tone zone selections, the RAD-1A can be set to ignore Touch Tones.
  • Page 3 D. Single Line 7.5 Minute Digital Announcer In this application, the RAD-1A will answer the line and trigger the message on the DVA-2WA to play from the beginning. The RAD-1A Call Timer (if used) must be programmed to a time long enough for the DVA-2WA to play its entire message (see Programming section D).
  • Page 4 The RAD-1A can be programmed from any Touch Tone phone using a C.O. line, analog PABX/KSU station, or a DLE-200B Line Simulator, see DOD 605 for more information. Note: While programming, if no Touch Tones are entered for 20 seconds, the RAD-1A will give 3 beeps and disconnect. 1. Using the Security Code From the Touch Tone phone, call the line attached to the RAD-1A’s PHONE LINE IN...
  • Page 5 20 seconds to enter Q followed by your 6 digit security code (a double beep should be heard). The RAD-1A may now be programmed. Note: While programming, if no Touch Tones are entered for 20 seconds, the RAD-1A will give 3 beeps and disconnect.

  • Page 6: Operation

    Operation The RAD-1A allows remote access to any 600 ohm audio device. This can be very useful for remote access to paging systems. The RAD-1A will answer an incoming call on the first ring. The RAD-1A offers either unsecured access, or secured access to the 600 Ohm input/output of one-way paging amplifiers, digital announcers and other audio programs.

  • Page 7: Related Products

    (1) Viking 25AE paging horn. The PA-2A is easy to install and eliminates the installation of multiple bells, relays and For more info, see DOD 485 paging cards.

  • Page 8: Warranty

    This number is valid for fourteen (14) calendar days from the date of issue. 3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor will then replace the Viking product using the same R.A. number.
