Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Generate Multiple Tones for Any

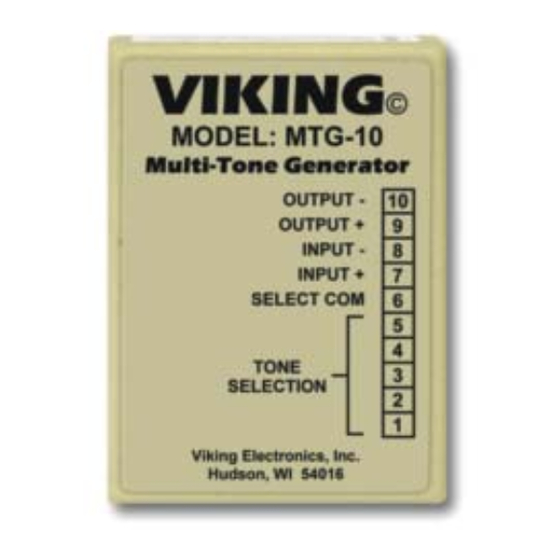

The model MTG-10 is a multi-tone
generator designed to add multiple
contact-controlled audio tones to
paging systems or 600 ohm inputs.
The MTG-10's audio input can be
connected to any paging source, ie:
phone system paging port or back-
ground music. When a contact clo-
sure is provided to one of the inputs,
the paging or background music is
faded out and the appropriate tone is
generated over the paging system.
The siren or the evacuation whoop
always have priority and over-ride
any other tone being generated.
Tone Descriptions
• Siren
• Interrupted 784Hz Tone
• Door Chime (Ding-Dong)
• Warble (Electronic Ring)
• Fast Whoop
• Hi-Low Siren
• March Time Horn
• All Clear
• Double Gong
• Evacuation Whoop (ANSI/NFPA compli-
ant, temporal slow whoop)
• Telephone Recording Disclosure Tone
(250ms beep, every 15 seconds)
• Double Chime
• Quadruple Chime
• Double Buzz or Steady Buzz
www.vikingelectronics.com
Information: (715) 386-8861
PRODUCT MANUAL
Paging System
The MTG-10 can also be configured
to provide a tone every 15 seconds
to notify callers that their conversa-
tion is being recorded.
Applications
• 15 available tones, organized into four groups
of five tones
• Contact initiated
• Built-in background audio source fade-in/out
• Priority ANSI compliant evacuation and siren
tones
• Telephone recording disclosure tone repeats
every 15 seconds
Specifications
Power: 120V AC/12V DC 500mA UL listed adapter pro-
vided
Dimensions: 74mm x 53mm x 25mm (2.9" x 2.1" x 1.0")
Shipping Weight: 0.4 kg (0.86 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to
95% non- condensing humidity
Input Impedance: 600 ohms
Output: Capable of driving 600 to 100K ohms imped-
ance
Maximum Output Level: +8dbm into 600 ohms
Evacuation Tone: ANSI compliant
Connection: 10 position cage clamp terminal strip
MTG-10
Multi-Tone
Generator
April 26, 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTG-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viking MTG-10

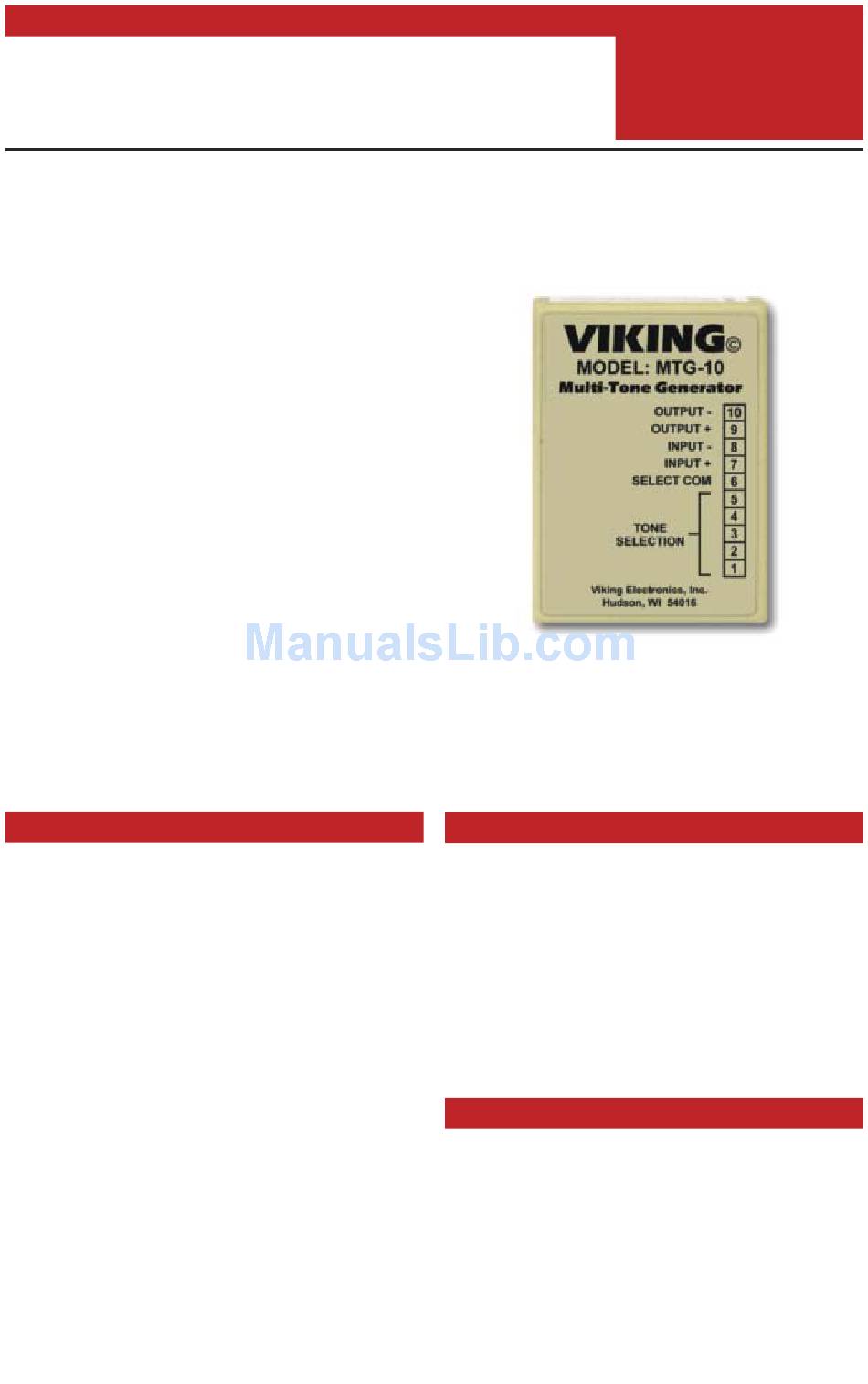

  • Page 1 C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S Generate Multiple Tones for Any Paging System The model MTG-10 is a multi-tone generator designed to add multiple contact-controlled audio tones to paging systems or 600 ohm inputs.
  • Page 2 Installation A. Mounting The MTG-10 is designed to be wall mounted using the included foam tape or with screws as follows: Unsnap the plastic cover Diagram A Diagram B Step 1. (see Diagram A right). VIKING (2) #6 Flathead Loosen the screw and ro- ©...
  • Page 3 A. Tone Generator Only If the MTG-10 is to be used strictly as a tone generator, connect pins 9 & 10 of the MTG-10 to the audio input of a paging amplifier. In this mode, no input signal is required, only a contact closure for the desired tone.
  • Page 4: Two Year Limited Warranty

    This number is valid for fourteen (14) calendar days from the date of issue. 3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor will then replace the Viking product using the same R.A. number.
