Voice Alarm Dialing or Store Caster
Announcements from up to Eight Inputs

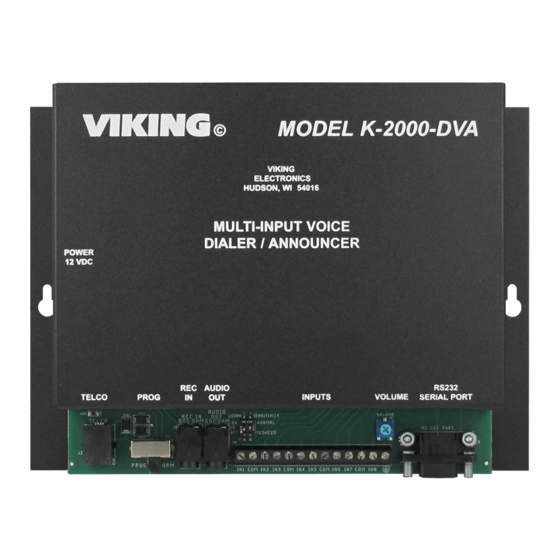

Viking's K-2000-DVA is a fully programmable
multi-input, multi-number auto dialer and digital
announcer, designed for emergency and non-
emergency message notification. The K-2000-
DVA has eight dry contact inputs, each of which
can dial up to eight 32-digit phone numbers and
play a message up to 1 minute in length specific
to that input.
Messages can be recorded locally or remotely with
a total message time for all 8 inputs of eight
minutes. When configured as an alarm dialer, the
K-2000-DVA has call progress detection capability
with normal and fast busy, call pickup, CPC and
ring-no-answer detection. The K-2000-DVA can
also be set up as a store caster (no dialing), for on-
site promotional or assistance announcements.
Features
• Non-volatile memory (no batteries required)
• Stores up to eight 32-digit phone numbers per
input (sixty-four 32-digit numbers total)
• 8 minutes of record time (1 minute per input)
• Programmable message repeat counter
• Programmable lap counter
• Eight inputs programmable normally open or
normally closed and enabled or disabled
• Programmable ring delay for remote
programming and alarm polling
• Programmable qualifier timer for each input
(time for an event to be qualified as an alarm)
• Programmable resume timer for each input
(time following reset for input to become active again)
• Call progress detection
• Programmable ringback limit for call progress
• Remote security and access codes
• Store caster mode
• Local or remote programming and recording
• RS-232 port for programming via a PC
• Compatible with the Viking RC-2A and RC-3
remote DTMF controllers
• Phone numbers may be programmed as pager
numbers (no voice message played)
• Programmable hookswitch flash before dialing
• Line level input for loading pre-recorded
messages into the unit
PRODUCT MANUAL
Programming can be done with a touch tone
phone or using a PC with a serial port connection
and free software available on the Viking website:
www.vikingelectronics.com
Applications
Alarm Dialer
• Security/burglar/fire alarm notification
• System alarm or equipment malfunction notification
• Environmental warning notification
• Contacting personnel via numeric pagers
Store Caster
• Provide assistance or promotional announcements in
department stores, grocery stores, hardware stores,
gas stations, etc. ie: "Customer assistance needed
in aisle 13..."
Specifications
Power: 120V AC/12V DC 500 mA, UL listed adapter
provided
Dimensions: 8.3" x 6.3" x 1.8" (211mm x 160mm x 46mm)
Shipping Weight: 1.02 Kg (2.25 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to
95% non-condensing humidity
Talk Battery: 12V DC
Touch Tone Dialing: 120 ms on/off, 50 ms on/off
CPC Detection Time: 320 ms minimum
Message Record Time: 8 minutes
Sampling Rate: 64 K (equivalent)
Input Detection Time: 80ms with Qualifier Timer set to 0
Resolution Qualifier Timer: 1 second to 18 hours
Resolution Resume Timer: 1 second to 18 hours
Connections: (1) RJ11 jack for telco connection, (2)
3.5mm jacks for 600-ohm audio output and record in, (1)
9 pin RS-232 for PC connection, (1) 13 position screw
terminal block for inputs
K-2000-DVA
Multi-Input Voice
Dialer/Announcer
August 26, 2015
