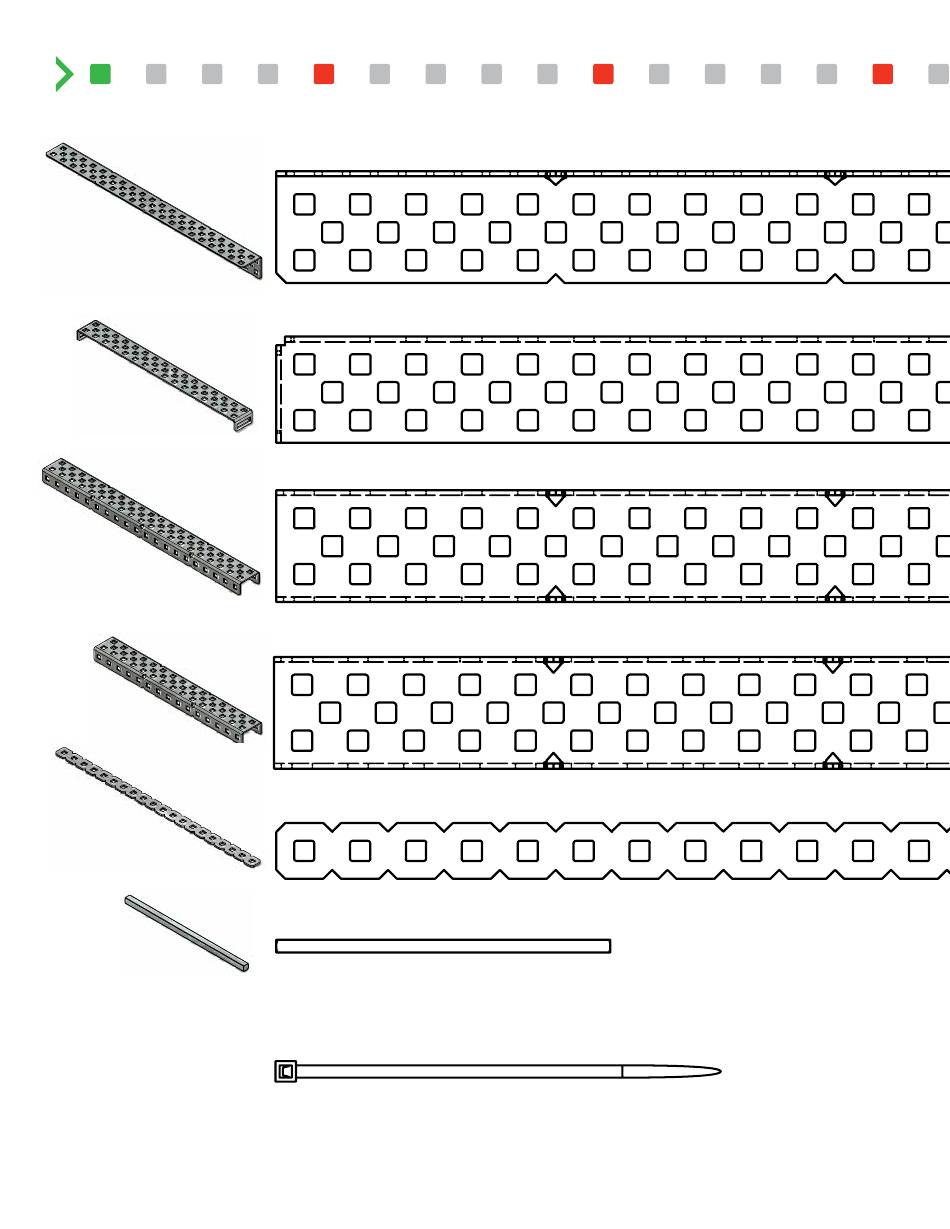

REFERENCE:

2
5 HOLE
[A20] CHASSIS BUMPER ANGLE, 20-HOLES LONG
[R16] CHASSIS RAIL, 16-HOLES LONG
[C20] C-CHANNEL, (1X2X1) 20-HOLES LONG
[C15] C-CHANNEL, (1X2X1) 15-HOLES LONG
[B20] BAR, 20-HOLES LONG
[SH-3] VEX 3" SqUARE SHAfT
[ZIP] 4" ZIP TIE
10 HOLE
15 HOLE
