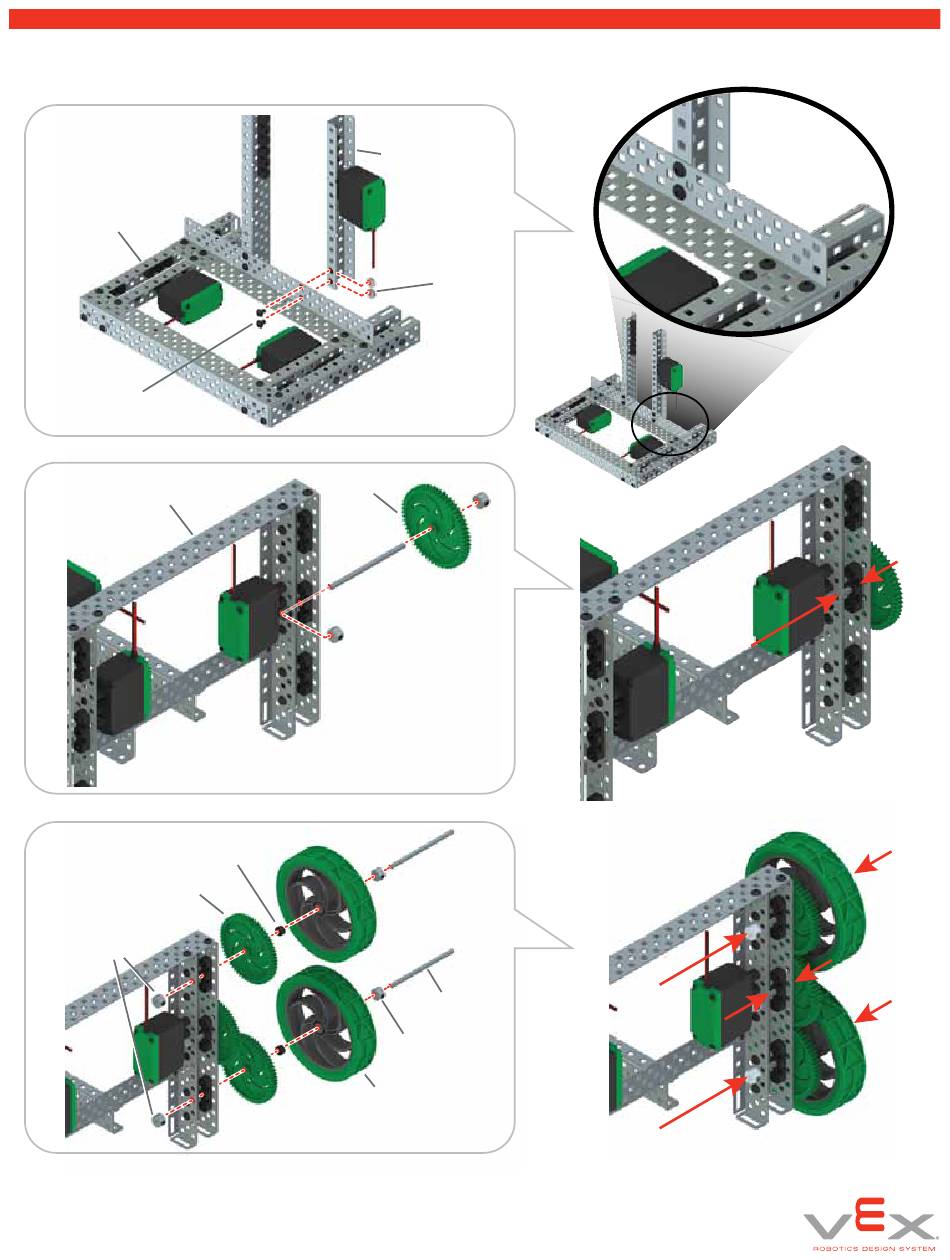

Vex Robotics CLAWBOT Assembly Manual page 10

13
FROM STEP 12
[S2]x2
14
FROM STEP 13
15
[SP4.8]x2
[G60]x2
[COL]x2
10
FROM STEP 6
[NK]x2
[G60]
[COL]
[SH-3]
fULLy INSERT SHAfT
INTO MOTOR!
[COL]
[SH-3]x2
[COL]x2
[W4]x2
PUSH COLLARS
TOGETHER BEfORE
TIGHTENING SET SCREwS
PUSH COLLARS
TOGETHER BEfORE
TIGHTENING SET
SCREwS
