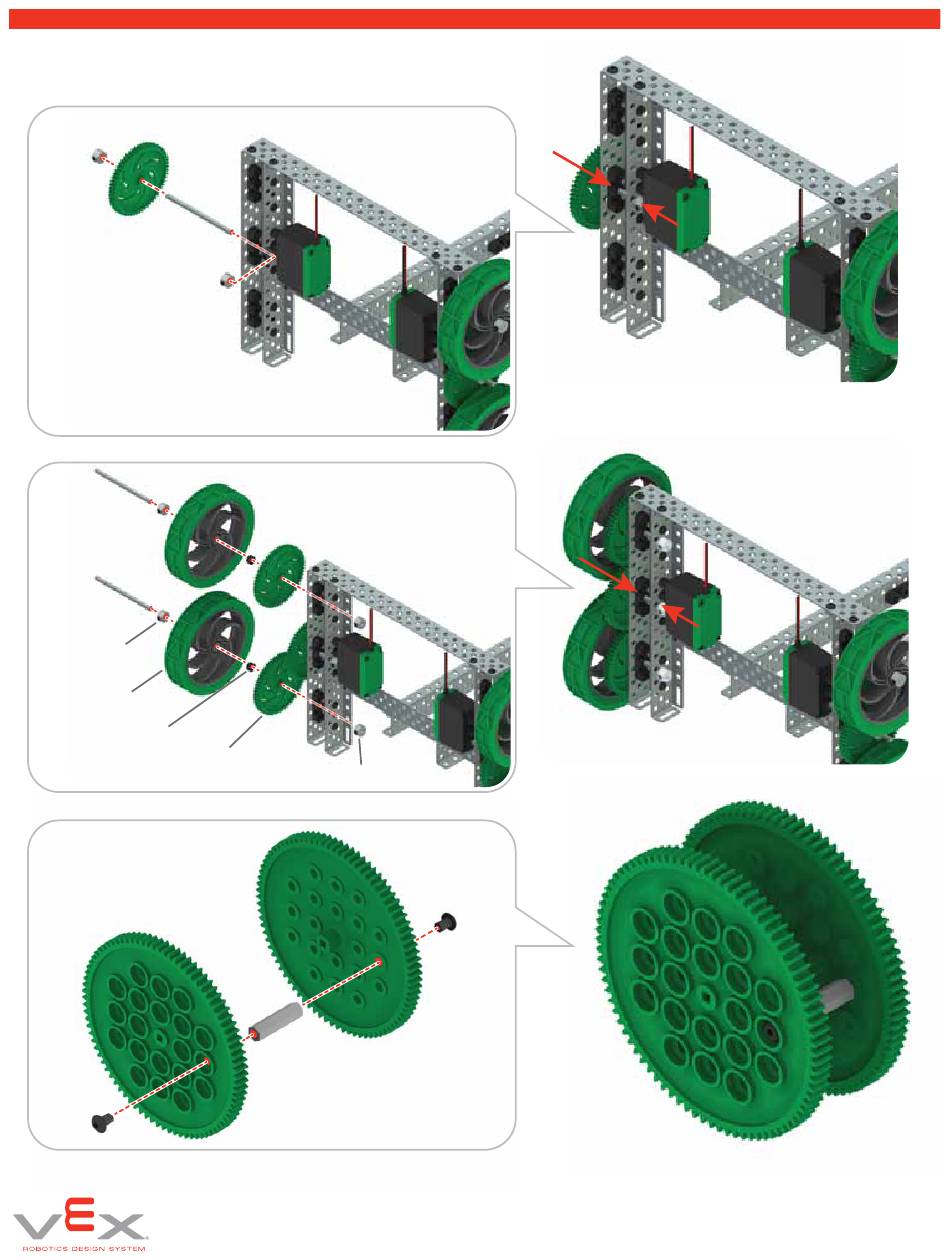

16
[G60]
[COL]
[SH-3]
fULLy INSERT SHAfT
INTO MOTOR!
[COL]
17
[SH-3]x2
[COL]x2
[W4]x2
[SP4.8]x2
[G60]x2
18
[S2]
PUSH COLLARS TOGETHER BEfORE
TIGHTENING SET SCREwS
[COL]x2
[G84]
[ST-1]
[G84]
[S2]
PUSH COLLARS
TOGETHER BEfORE
TIGHTENING SET
SCREwS
PUSH COLLARS
TOGETHER BEfORE
TIGHTENING SET
SCREwS
