FOR WATER AND SEWAGE SYSTEMS
Approved for use by
User's failure to follow the instructions and guidelines included in this operation and
maintenance manual exempts the manufacturer of all obligations and warranty.
Due to continuous business development, we reserve the right to introduce
modifications and structural changes to the presented product.
Operation and maintenance
manual for
AIR VALVES
Catalogue no.
7010, 7040, 7050
President of Factory, JAFAR S.A.
OPERATION AND MAINTENANCE MANUAL
12-2015
Advertisement
Table of Contents
Related Manuals for Jafar 7010
Summary of Contents for Jafar 7010
- Page 1 Catalogue no. 7010, 7040, 7050 Approved for use by President of Factory, JAFAR S.A. User's failure to follow the instructions and guidelines included in this operation and maintenance manual exempts the manufacturer of all obligations and warranty. Due to continuous business development, we reserve the right to introduce modifications and structural changes to the presented product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 TECHNICAL DESCRIPTION ..........................3 1.1 PRODUCT NAME AND FEATURES ......................3 1.2 PURPOSE ..............................3 1.3 TECHNICAL SPECIFICATION ........................3 2 STRUCTURE ..............................4 2.1 FITTING STRUCTURE DESCRIPTION ....................4 2.2 MATERIALS ..............................5 2.3 DIMENSIONS .............................. 7 2.4 STANDARDS ............................. -
Page 3: Technical Description
1.3 TECHNICAL SPECIFICATION Cast iron air valves TYPE 7010 are intended for purposes of aerating and deaerating systems for potable water and other liquids (obtain agreement from the producer): - operation temperature ranges from -10°C to +70°C. -
Page 4: Structure

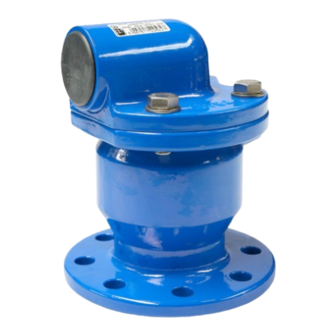

2 STRUCTURE 2.1 FITTING STRUCTURE DESCRIPTION F.A. „JAFAR” S.A manufactures cast iron, flanged air valves TYPE 7010 for potable water and industrial systems. They have a cast iron body which houses a loose ball, which is a closing component (float). The ball is made of metal insert fully covered with a rubber layer. The ball is able to float when the valve is filled with water because it has lower density than water. -
Page 5: Materials
During work with a TYPE 7010 valve, the TYPE 7040 valve is a second stage of deaerating when the ball performs repetitive up and down movements, releasing small amounts of air, which builds up in the chamber through the half-open nozzle, with 7010 valve still closed and filled with water (under pressure). - Page 6 PN-EN ISO 4017: 2011 TYPE 7050 Part name Material Standard 7010 valve Like in the table for 7010 Like in the table for 7010 7040 valve Like in the table for 7040 Like in the table for 7040 OPERATION AND MAINTENANCE MANUAL...
-
Page 7: Dimensions
2.3 DIMENSIONS TYPE 7010 Masa [mm] [cal] [kg] 50 / GW 2" 19x4 5/4" 19x8(4)* 2" 3/4" 19x8 2" 23x8 3" 23x8(12)* 3" OPERATION AND MAINTENANCE MANUAL 12-2015... - Page 8 TYPE 7040 Masa [mm] [cal] [kg] 3/4" 1" 5/4" 6/4" OPERATION AND MAINTENANCE MANUAL 12-2015...
- Page 9 TYPE 7050 Masa [mm] [cal] [kg] 50 / GW 2" 19x4 5/4" 19x8(4)* 2" 15,5 3/4" 19x8 2" 19,5 23x8 2" 34,5 23x8(12)* 3" 35,6 OPERATION AND MAINTENANCE MANUAL 12-2015...
-
Page 10: Standards
2.4 STANDARDS PN-ISO 1629: 2005 Rubbers latex Nomenclature. PN-89/H-02650 Fittings and pipelines. Pressures and temperatures. PN-EN ISO 228-1: 2005 Pipe threads where pressure-tight joints are not made on the threads Dimensions, tolerances and designation. PN-EN 10226-1: 2006 Pipe threads where pressure-tight joints are made on the threads. Dimensions, tolerances and designation. -
Page 11: Manufacture And Acceptance
The screws connecting the body and the cover are manufactured as stainless, grade OH18N9 or Fe/Zn5 (galvanised steel). 3.2 PACKAGING Cast iron flange valves TYPE 7010, TYPE 7050 and threaded TYPE 7040 are packaged on EURO pallets (1200x800) and secured with a heat shrinked hood. 3.3 STORAGE Cast iron flange valves TYPE 7010, TYPE 7050 and threaded TYPE 7040 should be stored indoors. -
Page 12: Transportation
4 ASSEMBLY AND INSTALLATION 4.1 INSTALLATION GUIDELINES Cast iron flange valves TYPE 7010, TYPE 7050 and threaded TYPE 7040 can be built over in underground pipelines and above ground vertical systems. Flange valves are adapted to be fitted with pipeline stub pipe flanges with dimensions corresponding with the valve flanges. Valves sized DN50 additionally have a terminal which enables a threaded connection. - Page 13 Before attempting the installation, pipe stoppers should be removed from the main tunnel, state of external surfaces should be checked and, if necessary, rinse them thoroughly with water. Attention! In case of mechanical damage, the device should not be installed on the pipeline. The picture below shows how to install the valve.
-
Page 14: Operation
Before installing the air valve, the system should be rinsed. 4.3 OPERATION Cast iron flange valves TYPE 7010, TYPE 7050 and threaded TYPE 7040 should be operated according to the requirements regarding the air fittings, i.e. oriented as shown in the diagram of possible orientations. -
Page 15: Warranty Conditions
5 WARRANTY CONDITIONS The manufacturer grants warranty for the product being installed and operated according to this OMM. The conditions and period of the warranty is specified in the warranty sheet. OPERATION AND MAINTENANCE MANUAL 12-2015...
