Pin Configuration

3.3

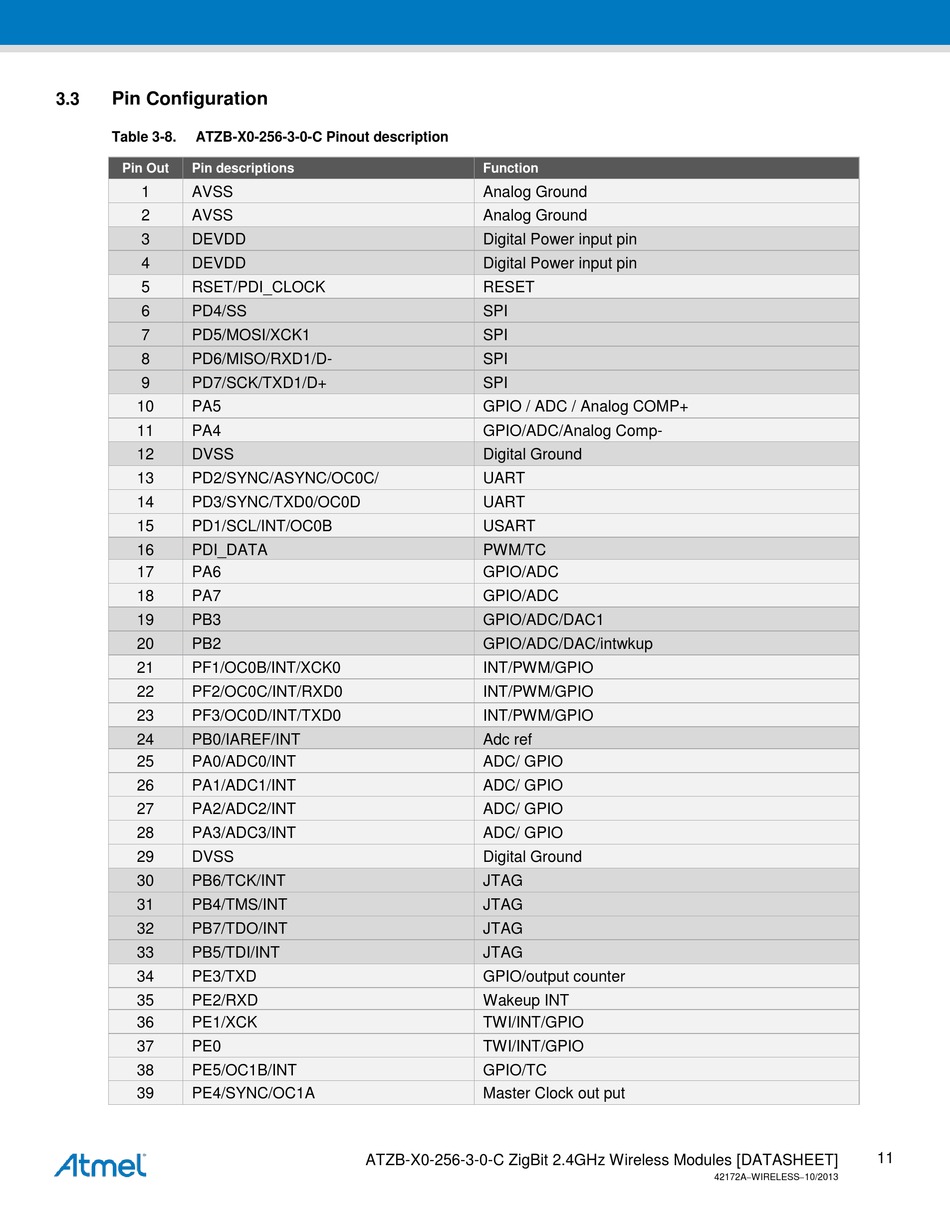

Table 3-8. ATZB-X0-256-3-0-C Pinout description
Pin Out Pin descriptions
1 AVSS
2 AVSS
3 DEVDD
4 DEVDD
5 RSET/PDI_CLOCK
6 PD4/SS
7 PD5/MOSI/XCK1
8 PD6/MISO/RXD1/D-
9 PD7/SCK/TXD1/D+
10 PA5
11 PA4
12 DVSS
13 PD2/SYNC/ASYNC/OC0C/
14 PD3/SYNC/TXD0/OC0D
15 PD1/SCL/INT/OC0B
16 PDI_DATA
17 PA6
18 PA7
19 PB3
20 PB2
21 PF1/OC0B/INT/XCK0
22 PF2/OC0C/INT/RXD0
23 PF3/OC0D/INT/TXD0
24 PB0/IAREF/INT
25 PA0/ADC0/INT
26 PA1/ADC1/INT
27 PA2/ADC2/INT
28 PA3/ADC3/INT
29 DVSS
30 PB6/TCK/INT
31 PB4/TMS/INT
32 PB7/TDO/INT
33 PB5/TDI/INT
34 PE3/TXD
35 PE2/RXD
36 PE1/XCK
37 PE0
38 PE5/OC1B/INT
39 PE4/SYNC/OC1A
Function
Analog Ground
Analog Ground
Digital Power input pin
Digital Power input pin
RESET
SPI
SPI
SPI
SPI
GPIO / ADC / Analog COMP+
GPIO/ADC/Analog Comp-
Digital Ground
UART
UART
USART
PWM/TC
GPIO/ADC
GPIO/ADC
GPIO/ADC/DAC1
GPIO/ADC/DAC/intwkup
INT/PWM/GPIO
INT/PWM/GPIO
INT/PWM/GPIO
Adc ref
ADC/ GPIO
ADC/ GPIO
ADC/ GPIO
ADC/ GPIO
Digital Ground
JTAG
JTAG
JTAG
JTAG
GPIO/output counter
Wakeup INT
TWI/INT/GPIO
TWI/INT/GPIO
GPIO/TC
Master Clock out put
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET]
11
42172AWIRELESS10/2013
