Soldering Profile - Atmel ZIGBIT ATZB-X0-256-3-0-C Datasheet

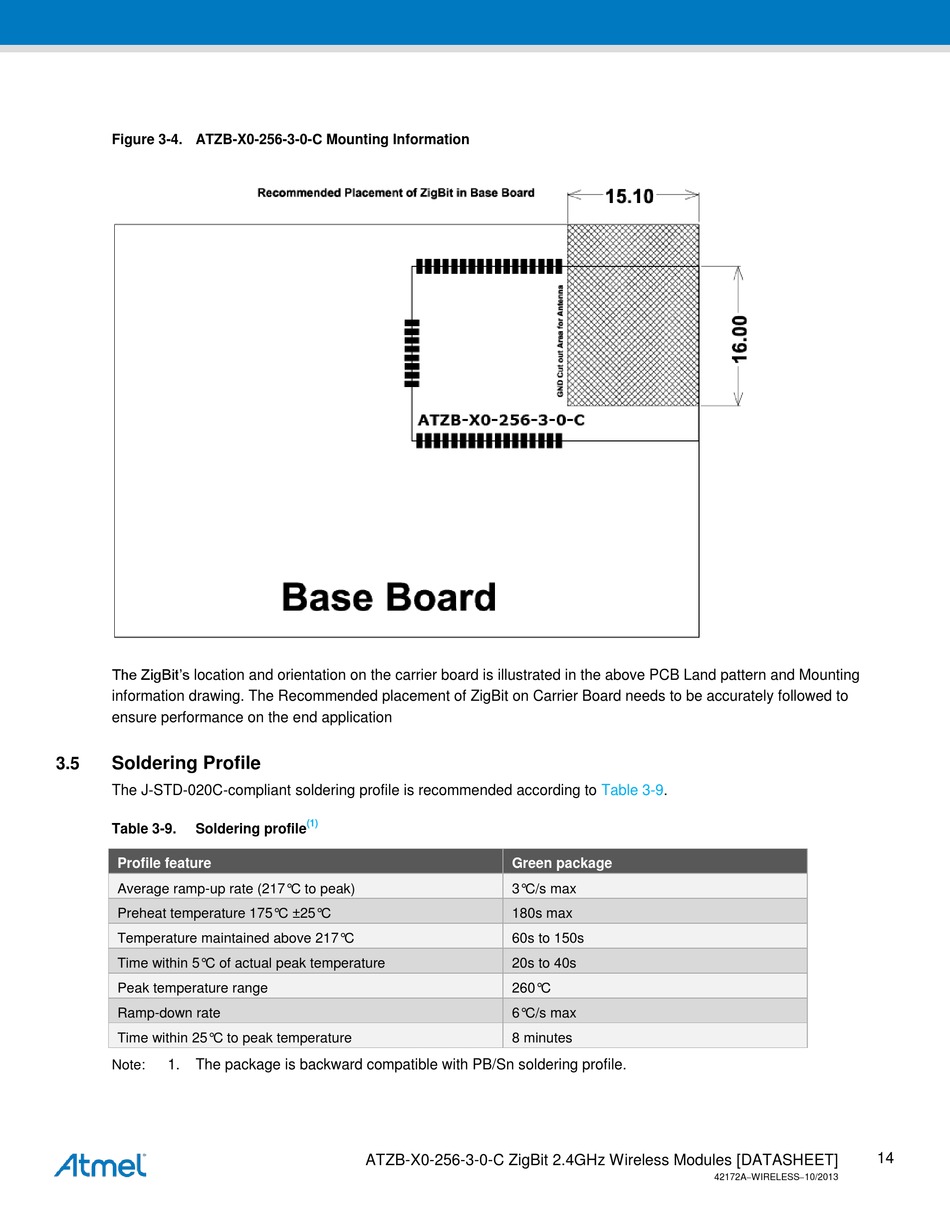

Figure 3-4. ATZB-X0-256-3-0-C Mounting Information
The ZigBit's location and orientation on the carrier board is illustrated in the above PCB Land pattern and Mounting
information drawing. The Recommended placement of ZigBit on Carrier Board needs to be accurately followed to
ensure performance on the end application

Soldering Profile

3.5
The J-STD-020C-compliant soldering profile is recommended according to
Table 3-9. Soldering profile
Profile feature
Average ramp-up rate (217°C to peak)
Preheat temperature 175°C ±25°C
Temperature maintained above 217°C
Time within 5°C of actual peak temperature
Peak temperature range
Ramp-down rate
Time within 25°C to peak temperature
Note: 1. The package is backward compatible with PB/Sn soldering profile.
(1)
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET]
Table 3-9.
Green package
3°C/s max
180s max
60s to 150s
20s to 40s
260°C
6°C/s max
8 minutes
