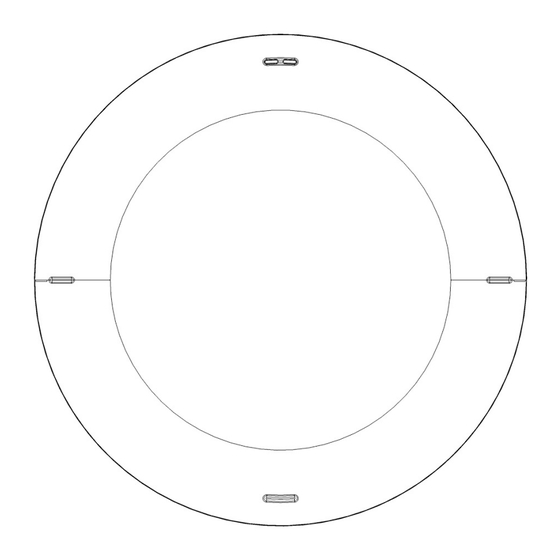

- Page 1 Quuppa LD-6L Installation Guide and Safety Information...
-
Page 2: Table Of Contents
Reset factory settings.................9 3.Installation....................9 Safety Information..................9 Installing Quuppa LD-6L ................10 Install mounting bracket to the ceiling/wall............10 Install Quuppa LD-6L main unit to the mounting bracket.......11 4.Product information..................13 5.Care and Maintenance................14 Recycle.....................14 6.Copyright and other notices..............15 2 Quuppa LD-6L Installation Guide and Safety Information... -
Page 3: For Your Safety
ACCESSORIES Use only approved accessories. Do not connect incompatible products When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products. 3 Quuppa LD-6L Installation Guide and Safety Information © 2013 Quuppa... -
Page 4: Introduction
This product may contain small parts. Keep them out of reach of small children. About this document Main features and first use of the Quuppa LD-6L are described in “Get started”, page 5. Installation to an indoor space is described in “Installation”, page 9. Quuppa LD-6L should only be installed by a qualified service technician using the original Quuppa parts supplied in the sales package. -
Page 5: Get Started
2. Get started Parts Quuppa LD-6L contains the following parts: 1. Quuppa LD-6L main unit 2. Quuppa LD-6L mounting bracket 5 Quuppa LD-6L Installation Guide and Safety Information © 2013 Quuppa... -
Page 6: Quuppa Ld-6L Main Unit
Quuppa LD-6L main unit 1. Bracket mounting pins 2. Reset button 3. 12V DC connector 4. Ethernet connector 5. Indicator lights 6 Quuppa LD-6L Installation Guide and Safety Information © 2013 Quuppa... -
Page 7: Mounting Bracket
Mounting Bracket 1. Holes for ceiling/wall mounting screws 2. Holes for mounting bracket mounting pins 3. Safety lock 4. Orientation indicator 7 Quuppa LD-6L Installation Guide and Safety Information © 2013 Quuppa... -
Page 8: Connect To Power Supply
When using PoE, a separate DC power supply is not required. Option 2: Use separate 12V DC power supply If you are not using PoE components, connect Quuppa LD-6L to an approved DC power supply using the DC connector. Only use compatible power supplies. -
Page 9: Reset Factory Settings
To reset factory settings, press the reset button while connecting power supply and keep it pressed for approximately three seconds until the red indicator light stops flashing. After that the Quuppa LD-6L switches on normally with the default factory settings. -
Page 10: Installing Quuppa Ld-6L
Ethernet socket. • For your safety, and to prevent any damage to Quuppa LD-6L, only use a compatible power supply. Contact Quuppa in case of any uncertainty regarding compatible power supplies. When using a PoE compatible network component as a power source, only use standard certified network components. -
Page 11: Install Quuppa Ld-6L Main Unit To The Mounting Bracket
2. Lift Quuppa LD-6L main unit so that the mounting pins go through the holes in the bracket (1). 3. Rotate the Quuppa LD-6L main unit (2) until you hear a ‘click’ (3). 4. Bend the safety lock down with a tip of a screwdriver to prevent Quuppa LD-6L main unit being accidentally detached (4). - Page 12 12 Quuppa LD-6L Installation Guide and Safety Information © 2013 Quuppa...
-
Page 13: Product Information
• Typical power consumption: 2 W • Dimensions Locator main unit: Ø: 202 mm, h: 40 mm • Dimensions Locator mounting bracket: Ø: 120 mm, h: 5 mm • Weight: 500g 13 Quuppa LD-6L Installation Guide and Safety Information © 2013 Quuppa... -
Page 14: Care And Maintenance
• Do not use or store Quuppa LD-6L in dusty, dirty areas. Its moving parts and electronic components can be damaged. • Do not attempt to open the Quuppa LD-6L. -
Page 15: Copyright And Other Notices
6. Copyright and other notices DECLARATION OF CONFORMITY Hereby, Quuppa Oy declares that this Quuppa LD-6L product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.quuppa.com/declaration-of-conformity... - Page 16 WITHOUT PRIOR NOTICE. The availability of particular products may vary by region. Please check with your Quuppa dealer for details. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.
