Quuppa Q35 Locator
Installation Guide and Safety Information
5.10.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Quuppa Q35

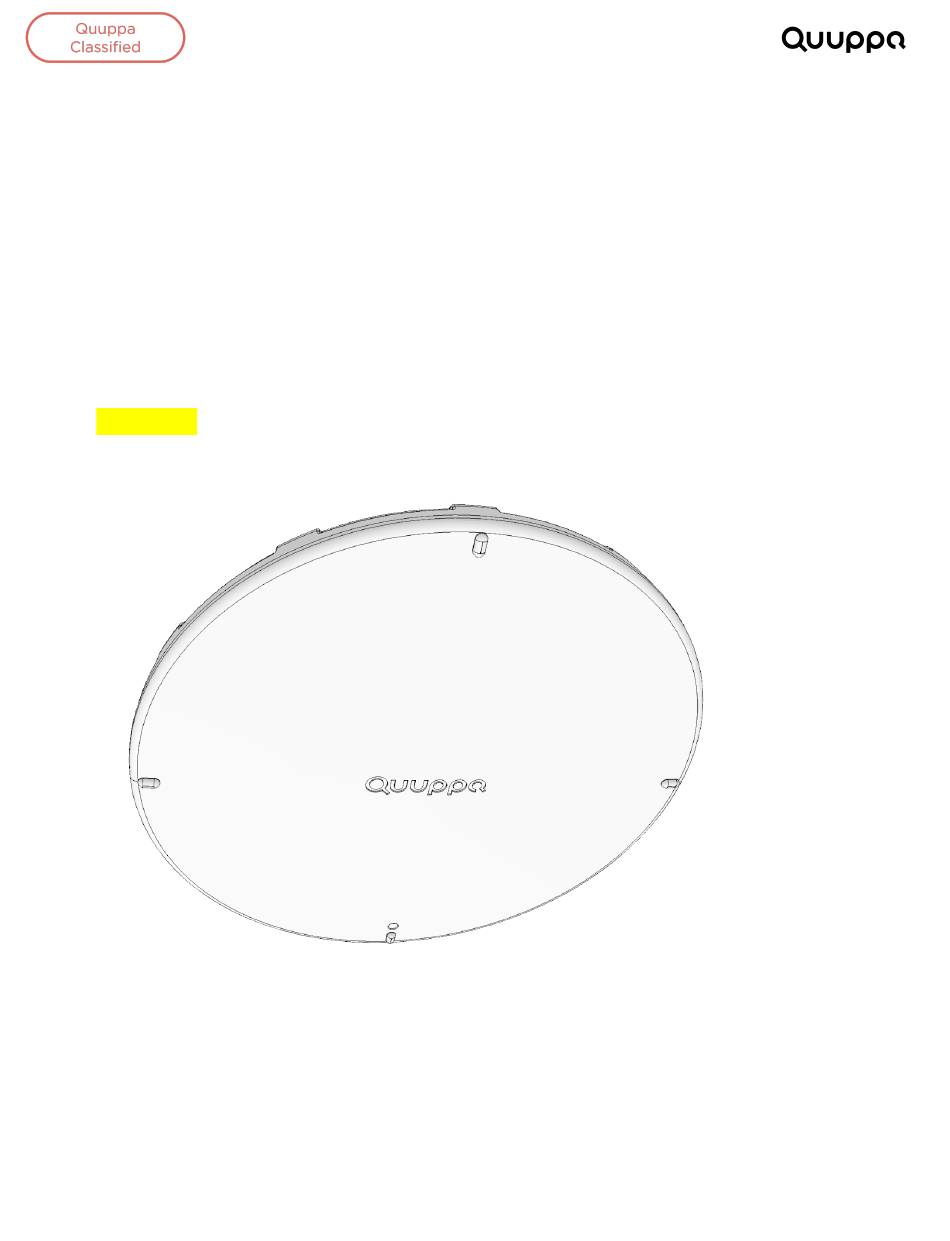

  • Page 1 Quuppa Q35 Locator Installation Guide and Safety Information 5.10.2020...
  • Page 2: Table Of Contents

    Japan (MIC) Regulatory CE Regulatory Korean certification Bluetooth SIG Qualification UL certification Copyright and other notice Revision History 2/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
  • Page 3: For Your Safety

    Quuppa System allows you to locate and track any objects equipped with Tags in an environment equipped with Locators. The Q35 is designed for use in both indoor and outdoor environments. The Quuppa Locator Subscription is required for using the Q35.
  • Page 4: Parts

    Parts The Q35 has the following parts: 1. Quuppa Q35 main unit 2. Waterproof Ethernet Connector Unit 4/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
  • Page 5: Q35 Main Unit

    Opening the Ventilation plug or the retaining nut for the Ethernet connector and/or the Micro USB connector will void the warranty. 5/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland...
  • Page 6: Safety Information

    Only a qualified service technician should install or service the device using the approved original Quuppa parts supplied in the sales package. Faulty installation or service may be dangerous and may void any warranty which may apply to the device.
  • Page 7: Using The Q35

    Using the Q35 In this section you will find useful information about installing the Q35 as well as connecting the device to a power supply and a network. 5.1. Installation The Q35 should be mounted clear of any metal obstructions (e.g. air-conditioning ducts, large ceiling trusses, building superstructures) to the side or front of the device.
  • Page 8 The USB socket of the Q35 is USBFirewire RR-11A200-0P-XX and it accepts USBFirewire RR-11B220-05-XX series waterproof USB cables. 2. Attach the Q35 to the mounting bracket with four screws (marked in the picture above). Use M6 bolts and assembly torque of 2 Nm (max allowed torque is 2.5 Nm).
  • Page 9: Installation Tips

    Option 2: Use Separate 5V DC Micro USB If you are not using PoE components, connect the Q35 to a 5V power supply with a Micro USB. Only use compatible power supplies. Contact Quuppa in case of any uncertainty regarding compatible power supplies.
  • Page 10 When the Q35 is properly connected to the network, but not activated by the QPE software, the red indicator light blinks slowly. The blue indicator light flashes or is statically lit when the Q35 is activated by the QPE software. If needed, it is possible to turn the Locator’s indicator light LED off when in tracking mode.
  • Page 11: Product Information

    Product Information 6.1. Q35 Mechanical Details Q35 dimensions Picture 4: Dimensions, side view Picture 5: Dimensions, back view 11/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
  • Page 12: Technical Specifications

    Certifications CE, FCC, IC, UL ; Pending: Japan, Korea, Australia & New Zealand 6.3. Packaging and storage The Q35 is shipped in a cardboard box. 12/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland...
  • Page 13: Care And Maintenance

    Picture 6: Packaging Please note the storage temperature when storing the Q35. Please note that the device is sensitive to ESD and may be damaged by it. Do not store the Q35 in a humid environment. 6.4. Care and maintenance The Quuppa device is a product of superior design and craftsmanship and should be treated with care.
  • Page 14: Recycling And Disposal

    Ensuring proper product and battery disposal prevents potential negative consequences for the environment and human health. For more information, contact your city, the place of purchase, or support@quuppa.com. 14/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
  • Page 15: Fcc And Ic Regulatory Statements

    2402 2404 … 2478 2480 MHz Modulation GFSK Max Output Power 3.5 mW Antenna Folded dipole antenna with 0 dBi gain 15/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
  • Page 16: Industry Canada Statement

    1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation. 16/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
  • Page 17: Japan (Mic) Regulatory

    ● Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by Quuppa could void the user's authority to operate the equipment. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 18: Ce Regulatory

    2402 2404 … 2478 2480 MHz Max Output Power 2.0 mW The Quuppa Q35 is approved for use in the Japanese market. Please note that in Japan the Quuppa Q35 is certified for frequencies 2402 … 2481 MHz. CE Regulatory The Quuppa Q35 has been tested for compliance with relevant standards for the EU market.
  • Page 19: Bluetooth Sig Qualification

    Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Quuppa is prohibited. Quuppa operates a policy of continuous development. Quuppa reserves the right to make changes and improvements to any of the products described in this document without prior notice.
  • Page 20 CONTENTS OF THIS DOCUMENT. QUUPPA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. The availability of particular products may vary by region. Please check with your Quuppa dealer for details. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries.
  • Page 21: Revision History

    Revision History Version Changes Date Person number First version XXX 2020 SE, JT Reviewed with 21/21 Quuppa Q35 Locator Installation Guide and Safety Information © 2020 Quuppa Oy Quuppa Oy, Keilaranta 1, 02150 Espoo, Finland Customer Confidential...
