- Page 1 8 STAGE LITHIUM BATTERY CHARGER INSTRUCTION MANUAL...
- Page 2 WARNING Explosive gases may escape from the battery during charging. Prevent flames and Ÿ sparks. Provide adequate ventilation. Before charging, read the instructions. Ÿ For indoor use. Do not expose to rain. Ÿ For charging 12 Volt lithium-ion with LiFePO4 batteries ONLY. Ÿ...
-
Page 3: Protective Features
STEP CURRENT & VOLTAGE LIMIT STEP 1 25% Current until 11V Max 30s SOFT START STEP 2 100% Current until Max 10h BULK 13.8V Constant 13.8V until STEP 3 30 minutes current drops to15% ABSORPTION Checks if voltage STEP 4 3 minutes drops to 12V ANALYSE... -
Page 4: Product Overview

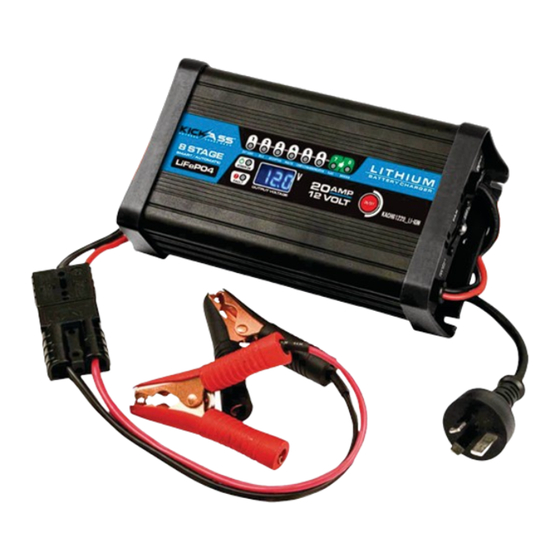

PRODUCT OVERVIEW The 8-stage 12V automatic lithium battery charging consists of the following components: 1. ON/OFF button 5. Output voltage meter 9.Ground terminal 2. Stage lamp status display 6. DC leads. 10.Mounting flange. indicates power, charging and 7. Power Cord 11.5.0mm mounting hole. -
Page 5: Charge Status Indicator
CHARGE STATUS INDICATOR The 12V AUTOMATIC LITHIUM BATTERY CHARGING and STAGE LAMP will illuminate and flash in various patterns to indicate the different stages of charging. See below for flash / steady patterns. Power on Stage Fault lamp lamp lamp display Power Off... - Page 6 POWER ON LAMP: If the power lamp is lit with a: 1.steady light The mains is connected to a wall socket 2. Flashing light The charger has entered the energy saving mode, This happens if the charger hasn’t been connected to a battery within 2 minutes of being turned on.
-
Page 7: Specifications
SPECIFICATIONS KACHG1220_LI-ION Charger type 8 stage automatic lithium Input voltage 220/240 volt 50/60 Hz Input power 554W Output voltage 12 volt DC Output current 20 Amp Minimum start voltage 1.0 volt Back drain 4 mA Current fuse rating 250 volt T5A CHARGE CONTROL Soft start 25% current until 11 V... -
Page 8: Charging Instructions
CHARGING INSTRUCTIONS Connect the charger to the battery and turn on charger Charger will go into diagnostic mode and check itself before beginning the charge process. During the charge process the charging and stage lamp will flash in various patterns this indicates the state of charge that the battery is in. -
Page 9: Fault Codes
Note: If permanently installing the charger a 40 Amp fuse will be required to be fitted on the positive (red) wire. Inline fuse Ring terminal F A N BLACK FAULT CODES There are error codes that may be displayed. These will be displayed in the following way: Power on Stage Fault... - Page 10 CAUTION ALWAYS PLACE THE12V AUTOMATIC LITHIUM BATTERY CHARGER IN AN ENVIRONMENT WHICH IS: A. WELL VENTILATED. B. NOT EXPOSED TO DIRECT SUNLIGHT OR HEAT SOURCE. C. OUT OF REACH FROM CHILDREN. D. AWAY FROM WATER / MOISTURE, OIL OR GREASE. E.
