Summary of Contents for KickAss KACHG1216

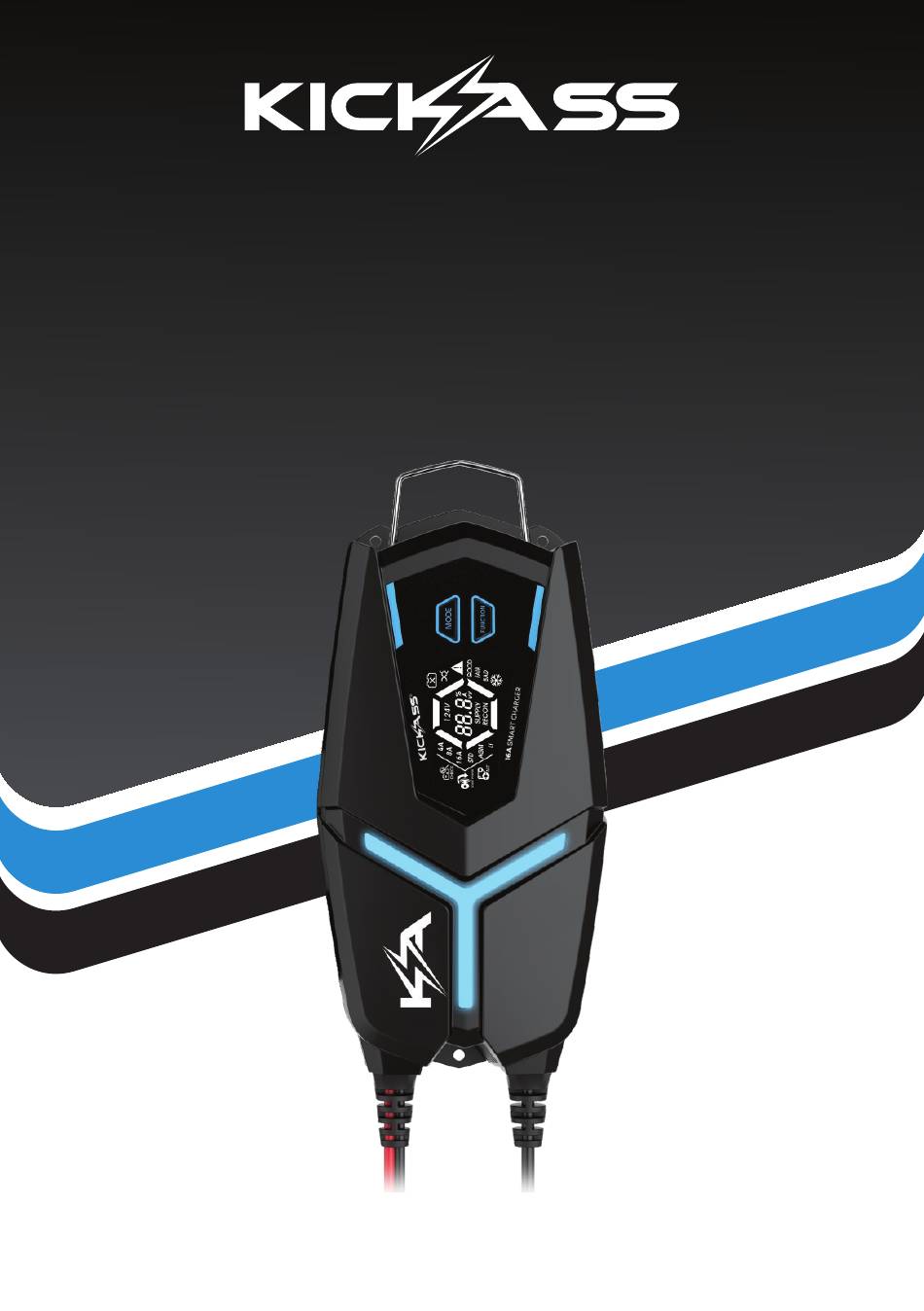

- Page 1 12V 16 AMP SMART BATTERY CHARGER USER MANUAL KACHG1216 V1.1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT SPECIFICATIONS ----------------------------------------------- PRODUCT FEATURES ------------------------------------------------------ BATTERY CHARGER PROTECTION FEATURES ---------------------------- IMPORTANT SAFETY INFORMATION -------------------------------------- UNDERSTANDING YOUR CHARGER AND WHAT'S INCLUDED ------------ CONNECTING THE BATTERY CHARGER ----------------------------------- BATTERY CHARGER STANDARD OPERATION MODES -------------------- BATTERY CHARGER SPECIAL OPERATION MODES ----------------------- BATTERY TESTER OPERATION MODE -------------------------------------... -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Ÿ Input Voltage / Frequency: 220 ~ 240V/50Hz Ÿ Charging Voltage: 12V/24V Ÿ Charging Current: 4A/8A/16A Max Ÿ Maximum Input current and power: 1.7A, 300W Max Ÿ Certifications: AS/NZS 60335.2.29:2017+a1 :2020 Ÿ Dimensions: 298 x 152 x 87mm Ÿ... -
Page 4: Important Safety Information
Short-circuit Protection: If you accidentally touch the clamps together while the mains power is on, the charger will automatically turn off. If this happens, unplug the charger from the mains power outlet, disconnect, and begin again this time being careful not to let the clamps touch. Overheating Protection: The charger will reduce the charge current to 2A if the internal temperature reaches 95 ⁰C. - Page 5 Ÿ The charger should not be dismantled, and any attempt at modification or repair without the approval of KickAss will void any warranty. Ÿ Do not attempt to charge a battery that is damaged or seems to be damaged.
- Page 6 Ÿ Every battery has a recommended maximum continuous charging current rating. Make sure that the charger does not exceed the recommended maximum continuous charging current specified by the battery manufacturer. IMPORTANT: This charger must only be used to charge batteries as outlined in this manual.
-
Page 7: Understanding Your Charger And What's Included
UNDERSTANDING YOUR CHARGER AND WHAT'S INCLUDED LCD Display Function Button Charging Light Indicator Mode Button Battery Type Indicator... -
Page 8: Connecting The Battery Charger
CONNECTING THE BATTERY CHARGER To connect the charger and begin charging your battery, please follow these steps. Step 1: Prepare your charger - position the charger so the cables can reach the battery you intend to charge, and make sure you have ready access to AC power to plug the charger in. - Page 9 Step 3 Select the appropriate charge mode using the 'Mode' button, ensuring the mode is correct for the battery type to be charged. AGM: AGM Battery MODE STD: Lithium Battery STD & GEL Battery including LiFePO4 Battery Step 4 Adhere to the recommended charge rate based on the battery's specifications.
- Page 10 Step 6 If the battery needs to be disconnected, switch off the power supply at the wall and unplug the charger, then disconnect the alligator clamps or the Anderson connection. This will prevent any dangerous sparks. NOTE: Do not disconnect the alligator clamps from the battery while the charger is connected to mains power, as this may cause sparks.
-
Page 11: Battery Charger Standard Operation Modes
BATTERY CHARGER STANDARD OPERATION MODES 12V/4A STD Mode: Slow charge with 12V sealed or flooded lead acid or GEL battery, MAX 4A 12V/8A STD Mode: Fast charge with 12V sealed or flooded lead acid or GEL battery, MAX 8A 12V/16A STD Mode: Fast charge with 12V sealed or flooded lead acid or GEL battery, MAX 16A 12V/4A AGM Mode:... -
Page 12: Battery Charger Special Operation Modes
12V/4A Li Mode: Slow charge with 12V LiFePO4 battery, MAX 4A 12V/8A Li Mode: Fast charge with 12V LiFePO4 battery, MAX 8A 12V/16A Li Mode: Fast charge with 12V LiFePO4 battery, MAX 16A BATTERY CHARGER SPECIAL OPERATION MODES Recondition Mode: Recondition mode can be used on AGM batteries to deliver a specialized charge if the battery has not been used for some time. - Page 13 Step 1: Connect the KickAss Flexi Charge Smart Charger to the starter battery terminals in your vehicle. Step 2: Ensure that the battery charger detects a voltage at the battery terminals minimum 6V before proceeding.
-
Page 14: Battery Tester Operation Mode
BATTERY TESTER OPERATION MODE Step 1: Ensure Vehicle is Off Make sure the vehicle's engine is turned off before proceeding. Step 2: Connect the charger Ÿ Attach the positive clamp (red) of the charger to the positive terminal of the car battery (+). Ÿ... - Page 15 Step 1: Connect the Charger: Ÿ Attach the positive clamp (red) of the charger to the positive terminal of the battery (+). Ÿ Attach the negative clamp (black) to the negative terminal of the battery (-). NOTE: It is possible to conduct the start power test without connecting the charger to AC power.
- Page 16 Step 1: Complete START POWER test Ÿ Ensure the START POWER test is completed successfully. Ÿ Keep the clamps connected to the battery terminals and DO NOT turn off the vehicle's engine. Step 2: Select ALT Mode: Long press the FUNCTION button until the ALT mode is selected on the LCD display of the charger.
-
Page 17: Lithium Activation Mode
LITHIUM ACTIVATION MODE All lithium batteries have an integrated Battery Management System (BMS) to protect them from unsafe operating conditions. One of these conditions is Under Voltage Protection, which occurs when the batteries are depleted below a certain voltage. When a battery pack enters this Under Voltage Protection mode, the BMS does not allow the battery to discharge any further to stop the cells from being damaged. -
Page 18: Charging Profile
CHARGING PROFILE This charger is controlled by a microprocessor with 9 separate stages of charging batteries. The microprocessor senses the condition of the battery and delivers the right current and voltage. This will optimize the charging process and protect the batteries. Stage 1: Battery Diagnostics and Pre-charge Checks the battery voltage to make sure the connections are working, and that the battery is in a stable condition before starting to charge. - Page 19 Only for STD/AGM batteries. Note: The KickAss Flex Charger range implements an intelligent voltage monitoring system to determine the point at which the charger transitions from Float back to bulk. This ensures the battery SOC is always maintained in an optimal state, regardless of whether the battery is being actively discharged or in a standby / low discharge state.has context menu...
-
Page 20: Battery Charging Voltage Lcd Display
12V BATTERIES Battery Absorption Bulk Float 12V LiFePO4 14.5V (CV) 14.5V (CC) 13.5V 12V AGM 14.7V (CV) 14.7V (CC) 13.5V 12V STD (FLD, SEALED, GEL) 14.4V (CV) 14.4V (CC) 13.5V 24V BATTERIES Battery Absorption Bulk Float 24V LiFePO4 29.0V (CV) 29.0V (CC) 24V AGM 29.4V (CV) -
Page 21: Battery Charger Error Codes
Bulk & Absorption Charging Time Exceeds (Over 36 Hours) WARRANTY AND SUPPORT INFORMATION Need help? For product support or to make a warranty claim, reach out to the KickAss Customer Service team on (07) 3123 1415 or at support@kickassproducts.com.au. Alternatively, visit our Customer Support Portal at:... - Page 22 KickAss is a registered trademark of KickAss Products Pty Ltd Designed & imported by KickAss Products Pty Ltd 39 Iris Place, Acacia Ridge, QLD 4110 Australia Made in China...
