Summary of Contents for KickAss KACHG1232

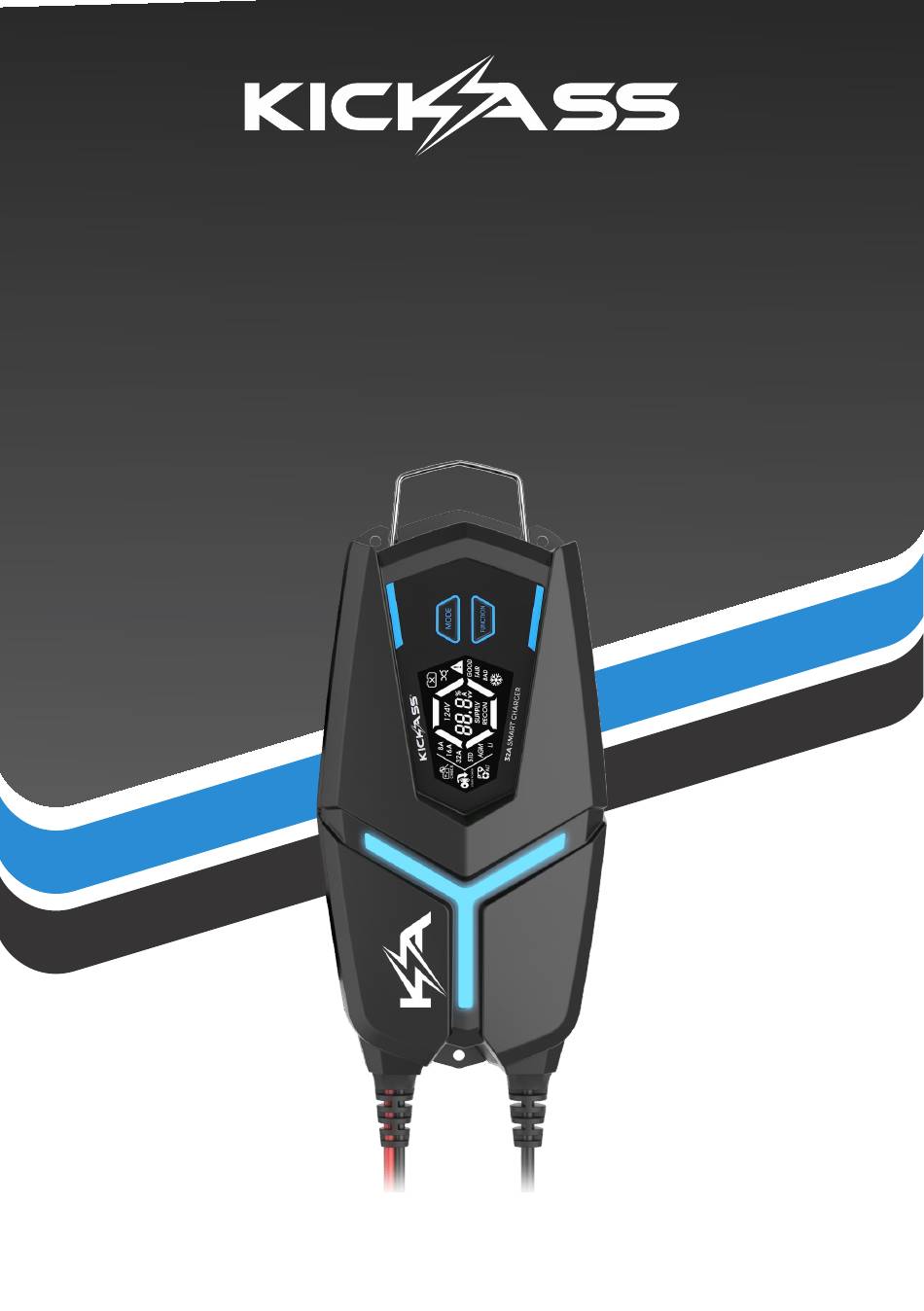

  • Page 1 12V 32 AMP SMART BATTERY CHARGER USER MANUAL KACHG1232 V1.2...
  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS Ÿ Input Voltage / Frequency: 220 ~ 240V/50Hz Ÿ Charging Voltage: 12V Ÿ Charging Current: 8A/16A/32A Max Ÿ Certifications: AS/NZS 60335.2.29:2017+a1 :2020 Ÿ Dimensions: 298 x 152 x 87mm PRODUCT FEATURES Ÿ Automatic 9 stage smart charging Ÿ Fast charge 32A peak output Ÿ...
  • Page 3: Important Safety Information

    Short-circuit Protection: If you accidentally touch the clamps together while the mains power is on, the charger will automatically turn off. If this happens, unplug the charger from the mains power outlet, disconnect, and begin again this time being careful not to let the clamps touch. Overheating Protection: The charger will reduce the charge current to 2A if the internal temperature reaches 95 ⁰C.
  • Page 4 Ÿ Children should be supervised to ensure that they do not play with the charger. Ÿ The charger should not be dismantled, and any attempt at modification or repair without the approval of KickAss will void any warranty. Indoor Use No Excessive...
  • Page 5 Ÿ Avoid getting electrolyte on your skin or clothes. It is extremely corrosive and can cause burns. Ÿ If electrolyte gets into your eyes - wash them thoroughly with water and seek medical attention immediately. Ÿ Always confirm the battery manufacturer’s safety recommendations and technical specifications before connecting it to the charger.
  • Page 6 UNDERSTANDING YOUR CHARGER AND WHAT'S INCLUDED LCD Display Function Button Charging Light Indicator Mode Button Battery Type Indicator...
  • Page 7: Connecting The Battery Charger

    CONNECTING THE BATTERY CHARGER To connect the charger and begin charging your battery, please follow these steps. Step 1: Prepare your charger - position the charger so the cables can reach the battery you intend to charge, and make sure you have ready access to AC power to plug the charger in.
  • Page 8 Step 3 Select the appropriate charge mode using the 'Mode' button, ensuring the mode is correct for the battery type to be charged. AGM: AGM Battery MODE STD: Lithium Battery STD & GEL Battery including LiFePO4 Battery Step 4 Adhere to the recommended charge rate based on the battery's specifications.
  • Page 9 Step 6 If the battery needs to be disconnected, switch off the power supply at the wall and unplug the charger, then disconnect the alligator clamps or the Anderson connection. This will prevent any dangerous sparks. NOTE: Do not disconnect the alligator clamps from the battery while the charger is connected to mains power, as this may cause sparks.
  • Page 10 BATTERY CHARGER STANDARD OPERATION MODES 12V/8A STD Mode: Slow charge with 12V sealed or flooded lead acid or GEL battery, MAX 8A 12V/16A STD Mode: Fast charge with 12V sealed or flooded lead acid or GEL battery, MAX 16A 12V/32A STD Mode: Fast charge with 12V sealed or flooded lead acid or GEL battery, MAX 32A 12V/8A AGM Mode:...
  • Page 11 12V/8A Li Mode: Slow charge with 12V LiFePO4 battery, MAX 8A 12V/16A Li Mode: Fast charge with 12V LiFePO4 battery, MAX 16A 12V/32A Li Mode: Fast charge with 12V LiFePO4 battery, MAX 32A BATTERY CHARGER SPECIAL OPERATION MODES Recondition Mode: Recondition mode can be used on AGM batteries to deliver a specialized charge if the battery has not been used for some time.
  • Page 12 Step 1: Connect the KickAss Flexi Charge Smart Charger to the starter battery terminals in your vehicle. Step 2: Ensure that the battery charger detects a voltage at the battery terminals minimum 6V before proceeding.
  • Page 13 LITHIUM ACTIVATION MODE All lithium batteries have an integrated Battery Management System (BMS) to protect them from unsafe operating conditions. One of these conditions is Under Voltage Protection, which occurs when the batteries are depleted below a certain voltage. When a battery pack enters this Under Voltage Protection mode, the BMS does not allow the battery to discharge any further to stop the cells from being damaged.
  • Page 14: Charging Profile

    CHARGING PROFILE This charger is controlled by a microprocessor with 9 separate stages of charging batteries. The microprocessor senses the condition of the battery and delivers the right current and voltage. This will optimize the charging process and protect the batteries. Stage 1: Battery Diagnostics and Pre-charge Checks the battery voltage to make sure the connections are working, and that the battery is in a stable condition before starting to charge.
  • Page 15 Stage 6: Recondition Available for AGM batteries only, this stage charges at a higher voltage to recondition the sulfate of the AGM battery to extend battery life. Stage 7: Analysis Tests whether the battery can hold capacity. Stage 8: Float Delivers low constant voltage with minimum charge current, after the battery is fully charged.
  • Page 16 BATTERY CHARGING VOLTAGE LCD DISPLAY FULL >13.7V 13.2-13.7V 12.7-13.2V 12.0-12.7V <12.0V Note: Ÿ The voltage LCD display shows the voltage level of your battery. Each bar in the LCD display corresponds with a particular voltage level. Depending on the voltage level of your battery, the appropriate LCD light bars will be illuminated. Ÿ...
  • Page 17: Warranty And Support Information

    WARRANTY AND SUPPORT INFORMATION Need help? For product support or to make a warranty claim, reach out to the KickAss Customer Service team on (07) 3123 1415 or at support@kickassproducts.com.au. Alternatively, visit our Customer Support Portal at: https://supportportal.kickassproducts.com.au/...
  • Page 18 KickAss is a registered trademark of KickAss Products Pty Ltd Designed & imported by KickAss Products Pty Ltd 39 Iris Place, Acacia Ridge, QLD 4110 Australia Made in China...
