American Standard Shower Systems 1660.125 Specification Sheet

Model #
1660.125

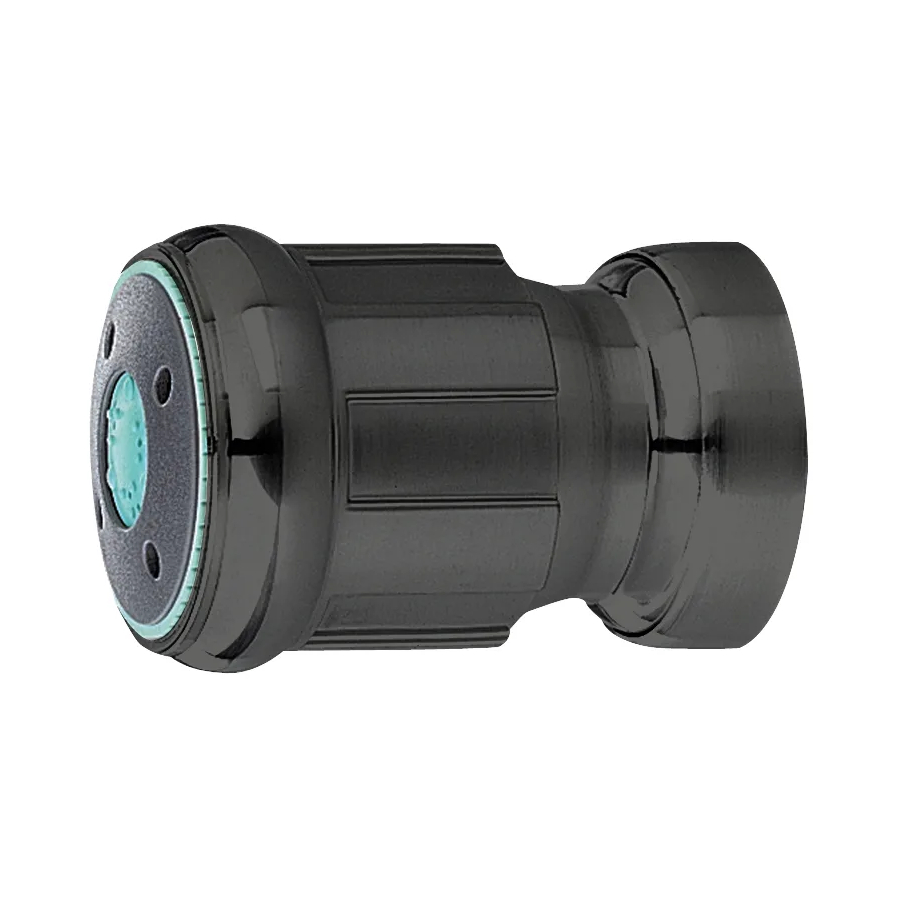

"TREVI" DELUXE ADJUSTABLE
BODY SIDE SPRAY
• Self Cleaning Patented Design:
Flexible ring with spray holes prevents
lime scale build up.
• Spray Pattern: Variable spray
adjusts from a conventional spray to a
massage action.
• Simple Spray Adjustment: Spray
position adjusts up to 20˚ in any
direction.
• Flow Restrictor: 2.5 gpm/9.5L/min.
© 2008 AS America Inc.
Description Finishes
.002 Polished Chrome
.008 Polished Nickel
.068 Blackened Bronze (PVD)
.075 Stainless Steel (PVD)
.099 Polished Brass (PVD)
.295 Satin Nickel (PVD)
F101
SHOWER SYSTEMS
BODY SIDE SPRAY
Roughing-In Dimensions
FINISHED WALL
38mm
(1-1/2)
3 - 3-1/2
(75-89mm)
2-1/4
(56mm)
40°
DIA.
